Dell Emulex Family of Adapters - Manual (Page 1285)

OneCommand Manager for VMware vCenter Version 10.2 User Manual P010089-01A Rev. A
6. Managing Adapters and Ports
OCe14100–Series Adapters
1285
Four Port Adapters
Dell four port adapters allow up to two or four partitions per port, depending upon
whether the NParEP Mode check box is checked or cleared.
NParEP Mode Disabled
When NPar is enabled and NParEP Mode is disabled, the Adapter Configuration tab
looks similar to the following:

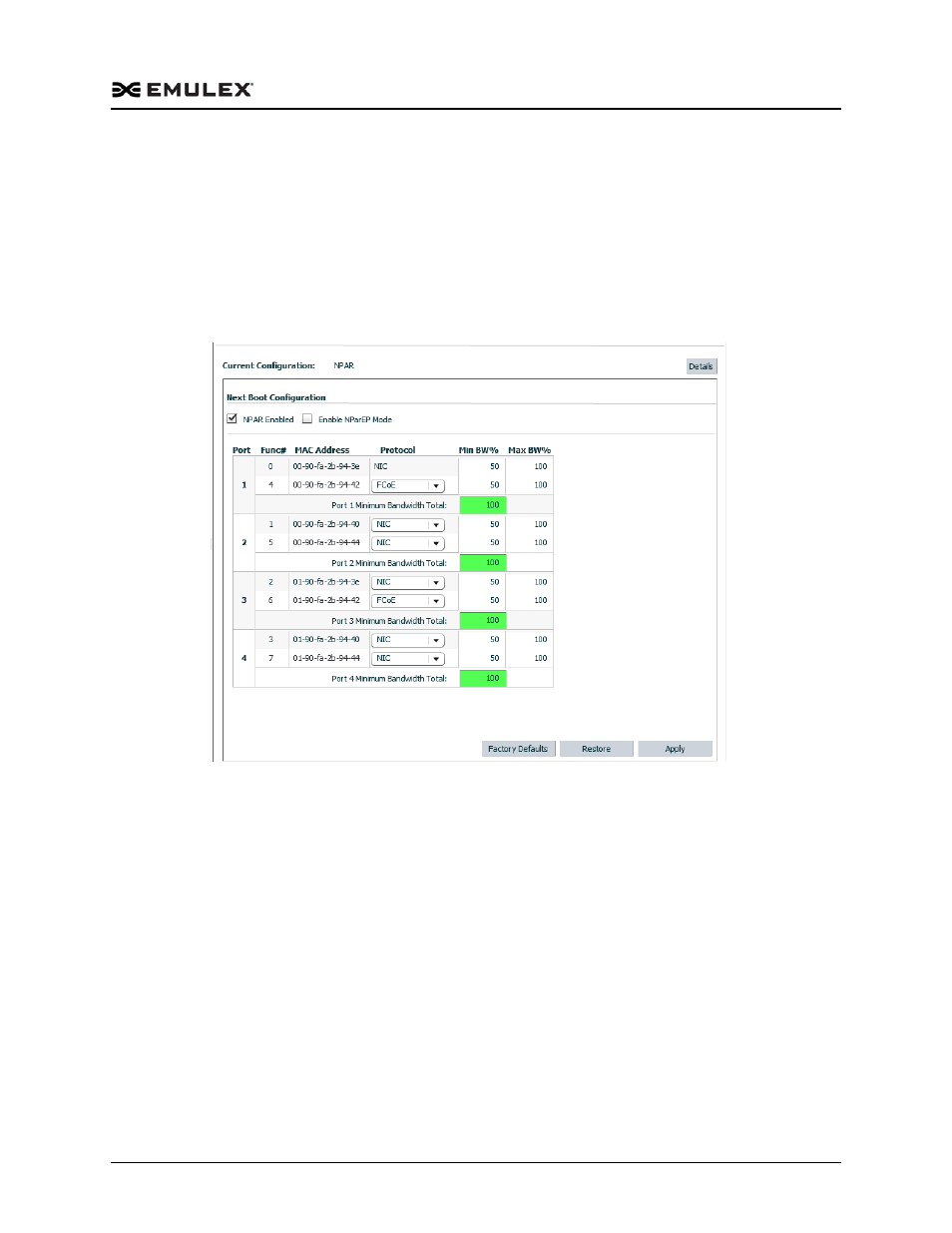

Figure 6-68 Dell Four Port NPar Configuration, NParEP Mode Disabled
If the NParEP Mode check box is cleared (disabled), only two partitions per port can be
configured. FCoE, iSCSI or None can be configured on the second function, None
cannot be configured on the first function.
