OneCommand™ Manager Application P010066-01A Rev. A
13. Diagnostics
LightPulse FC HBA Diagnostics
266
Viewing Overlay Details
If you double-click on a flash overlay, another window appears with details about that
overlay.

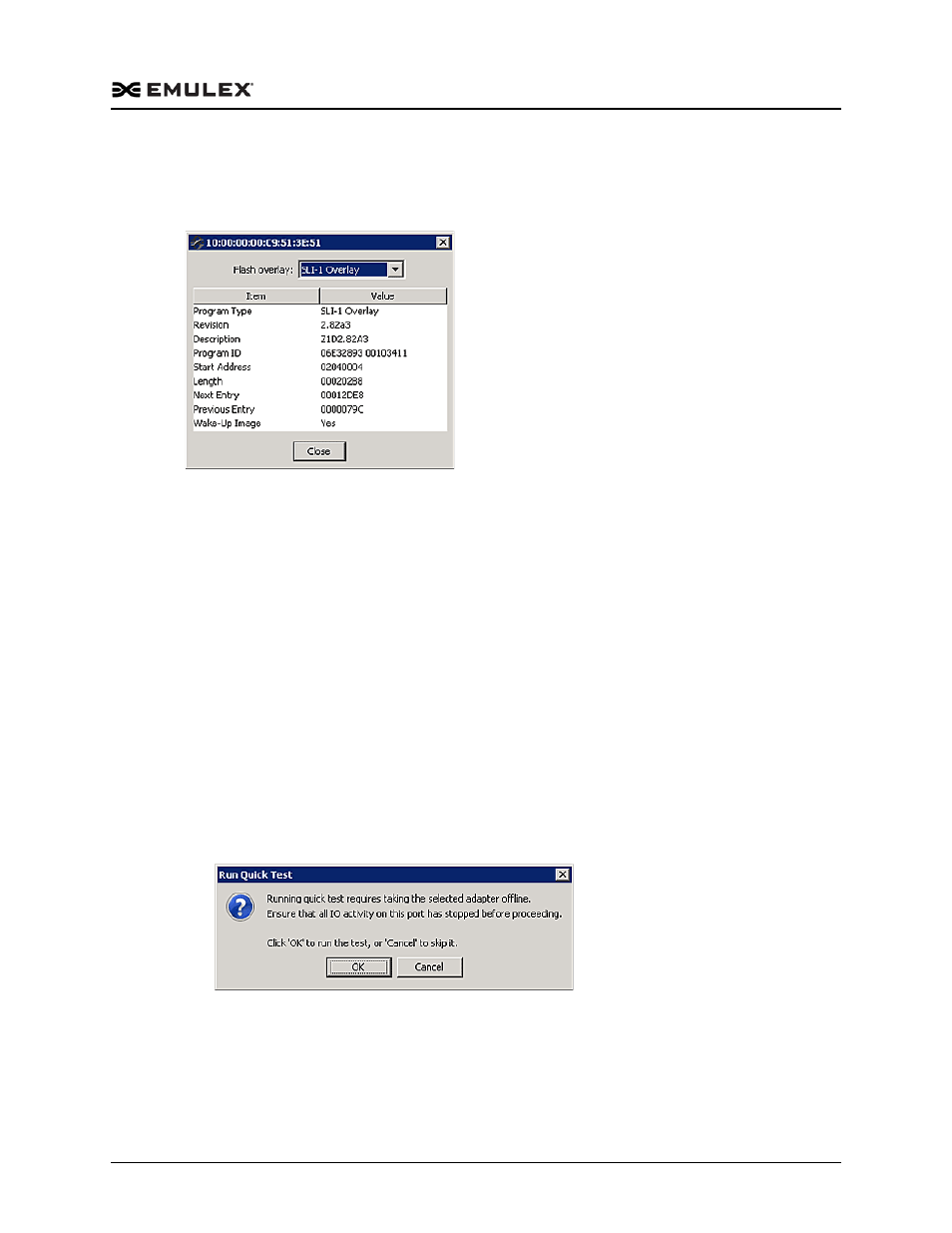

Figure 13-2 Overlay Detail Window
To see the details of a different flash overlay image, you can either close the details
window and double-click on another overlay name, or choose a different overlay name
from the Flash overlay menu.
Viewing the PCI Registers
The PCI Registers appear directly on the Diagnostics tab.
Running a Quick Test
The Diagnostics tab enables you to run a “quick” diagnostics test on a selected adapter.
The Quick Test consists of 50 PCI Loopback test cycles and 50 Internal Loopback test
cycles. (Not available in read-only mode or on LightPulse adapters in ESXi hosts.)
To use quick test:
1. From the discovery-tree, select the adapter port on which you want to run the
Quick Test.
2. Select the Diagnostics tab and click Quick Test. A warning message appears.
Figure 13-3 Quick Test Warning
3. Click OK to run the test. The Quick Diagnostic Test window appears displaying the
PCI Loopback and Internal Loopback test results.
