OneCommand Manager for VMware vCenter Version 10.2 User Manual
P010089-01A Rev. A
6. Managing Adapters and Ports
OCe14100–Series Adapters
1274
The display in the lower area of the tab depends upon selected view of the next
boot configuration. For non-NPar configurations, depending upon
configuration options available on the adapter, you can configure the adapter
for a single personality (e.g. FCoE), multichannel or a custom configuration (for
mix and concurrent modes).
OCe14100–Series Adapter Configuration Tab Buttons
Apply - Saves the changes to the next boot configuration to the adapter.
Restore - Resets any changes to the next boot configuration back to the currently
saved settings on the adapter.
Factory Defaults – Returns the adapter to the factory default profile and settings
for that adapter. A reboot is required.
Details – Displays a pop up a window with more information about the current
configuration running on the adapter.

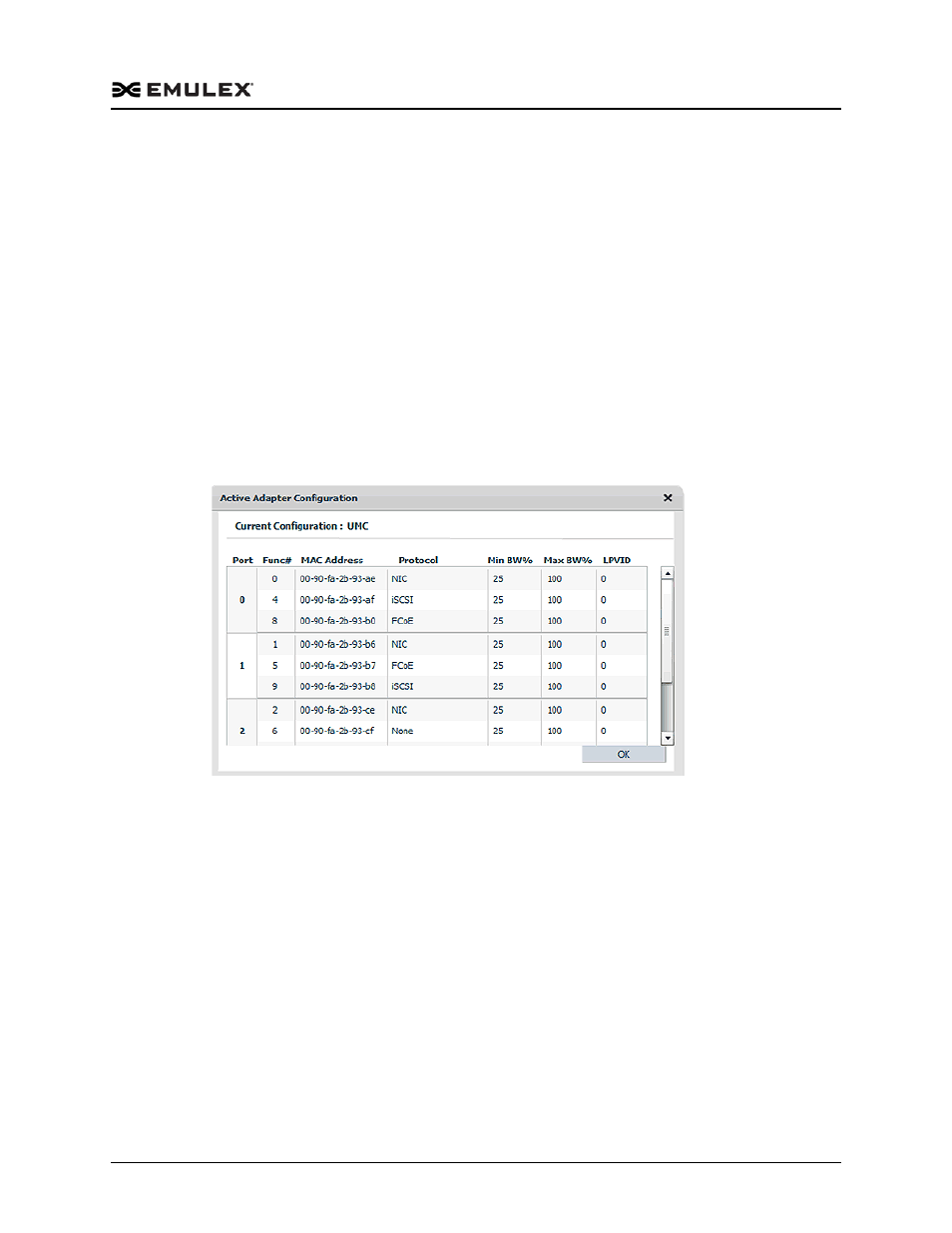

Figure 6-56 Current Configuration Details example
Configuring a Single Personality
The Single personality view allows you to select the same protocol to run on all ports of
the adapter. When you configure a single personality for an adapter, all ports run the
same number of functions and protocols on those functions.
To configure a single personality:
1. From the discovery-tree, select the OCe14100-series adapter whose personality you
want to configure.
2. From the Adapter Configuration tab, check the Single personality (all ports) radio
button.
3. Select the personality you want to apply from the Personality pull down menu (see
Note: If you choose a NIC-Only configuration, there may be multiple NIC-Only
configurations available (for example; NIC-Only or NIC-Only, No ETS). If the
