2. Configuring PXE Boot for NIC on LPe16202, OCe10100, and OCe11100-series Adapters
Using the PXESelect Utility
1527
Physically Identifying the Port
To physically determine which port you are configuring by causing the link and
activity LEDs of that port to blink:
1. On the configuration screen, select Port Identification and press . The Port
Identification screen appears.

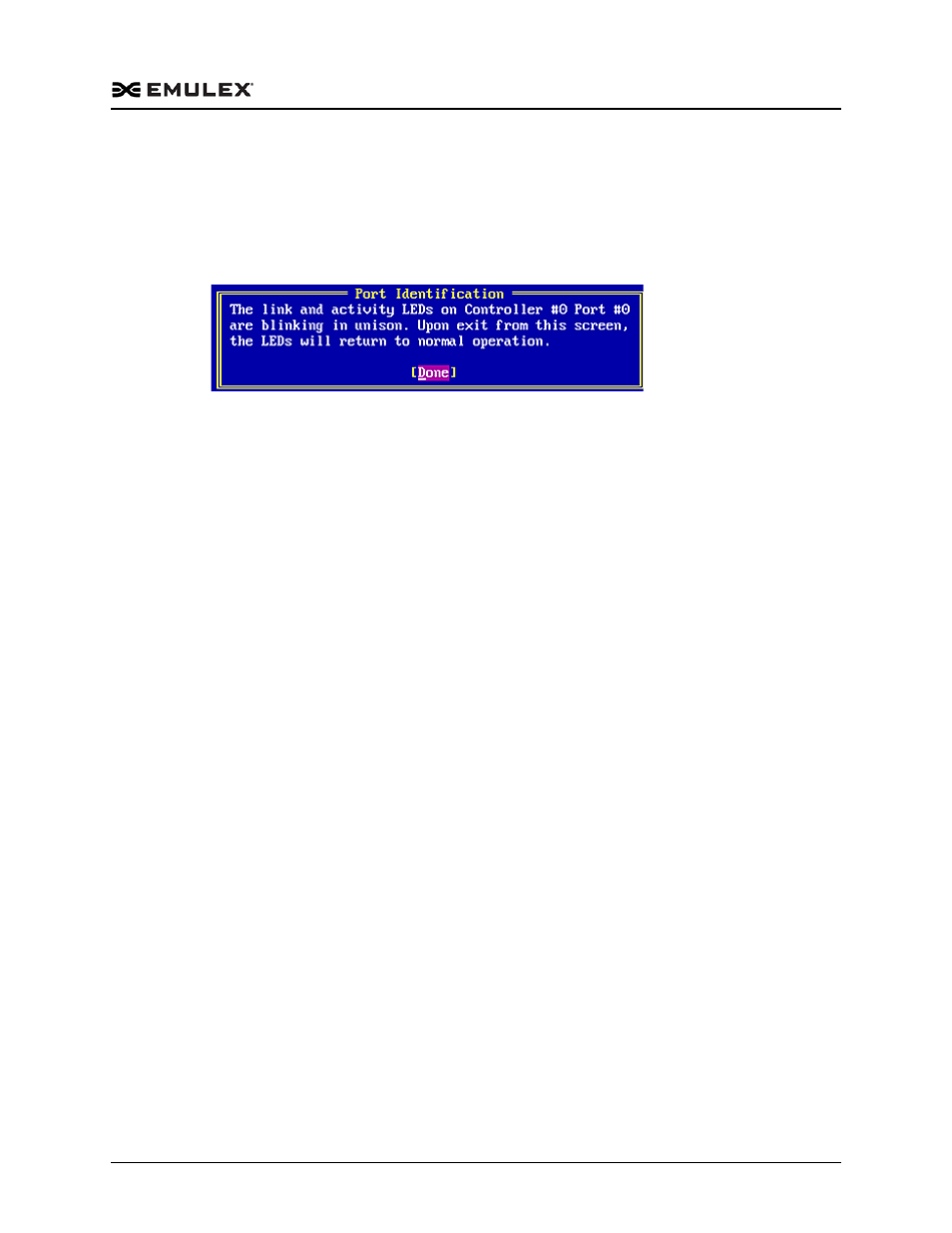

Figure 2-10 Port Identification Screen
2. The LEDs on your controller begin blinking. The selected port’s LED status
indicators blink on your controller until you select Done on this screen and press
.
Note: Not all controllers have LEDs that are visible externally. If you are using an
add-in card in a blade server environment, the port identification or beaconing
capability does not work.
Erasing Ports and Controller Configuration
Note: When this setting is selected, all previous configuration settings are returned to
their factory default settings except for the current personality selection. Emulex
recommends performing this action to provide a clean environment for new
configuration settings to take effect.
To erase the ports and controller configuration:
1. On the configuration screen, select Erase Configuration and press . A
warning appears asking if you want to erase the current configuration for all ports
of the controller.
2. Press to delete the configuration. You will receive another warning asking you
to confirm the permanent removal of the controller configuration.
3. Press to delete the configuration.
To exit the PXESelect utility after erasing the ports and controller configuration:
1. Follow the instructions on the bottom of the individual menu screens until you are
prompted to exit.
2. Press to exit. Depending on the settings that were changed, a reboot may be
necessary.
Note: For older systems, depending on the memory allocation method supported,
the PXESelect utility automatically reboots even when there are no changes
made to the system.
