OneCommand™ Manager Application P010066-01A Rev. A
8. Managing Adapters and Ports
FC/FCoE
136
3. Select the Target Mapping tab. All targets are displayed.

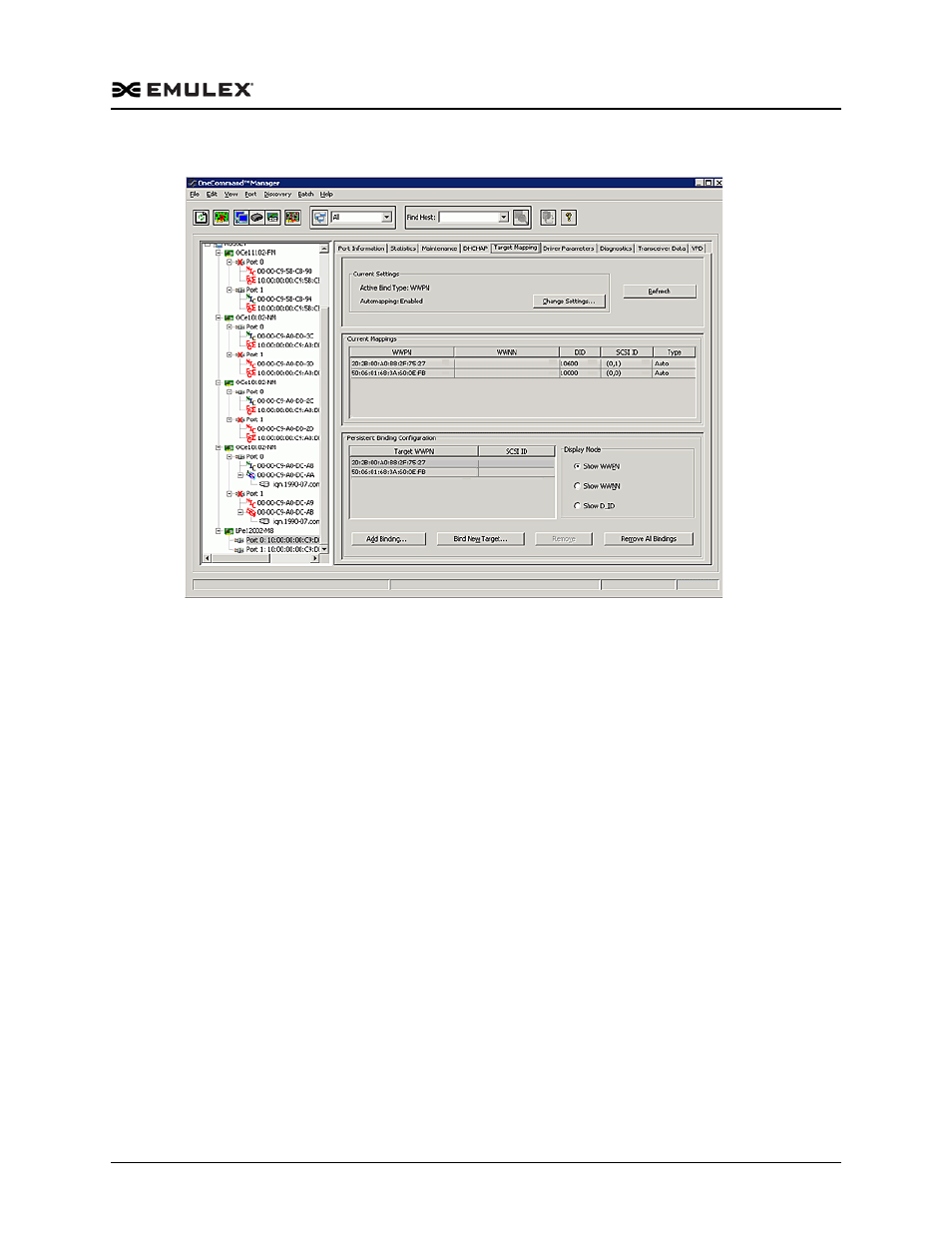

Figure 8-14 Target Mapping Tab
4. Target mappings are displayed by WWPN, WWNN, or D_ID. “PB”, indicates
mapping from persistent binding, while “Auto”, indicates an automapped target.
In the Display Mode section, choose the display mode you want to use.
5. If you want click Change Settings. The Mapped Target Settings dialog box appears.
You can enable or disable auto-mapping and change the active bind type. Click OK.
6. Reboot the system for changes to take effect.
Adding a Persistent Binding
To add a persistent binding:
1. Select Host or Fabric view.
2. In the discovery-tree, select the adapter port you want to set up with persistent
binding.
3. Select the Target Mapping tab. All targets are displayed. In the Targets Table, click
the target that you want to bind.
