13. PCI Controller (PCIC)

Rev.1.00 Jan. 10, 2008 Page 634 of 1658
REJ09B0261-0100

For PCI memory space 0, the middle six bits ([23:18]) are controlled by PCIMBMR0.

• PCIMBMR0 [23:18] B'1111 11: PCI address [23:18] = SuperHyway bus address [23:18]
• PCIMBMR0 [23:18] B'0000 00: PCI address [23:18] = PCIMBR0 [23:18]

The upper eight bits ([31:24]) of a SuperHyway bus address are replaced with bits 31 to 24 in
PCIMBR0.

SHwy bus address

PCI address

PCIMBMR0

PCIMBR0

mask

31 24

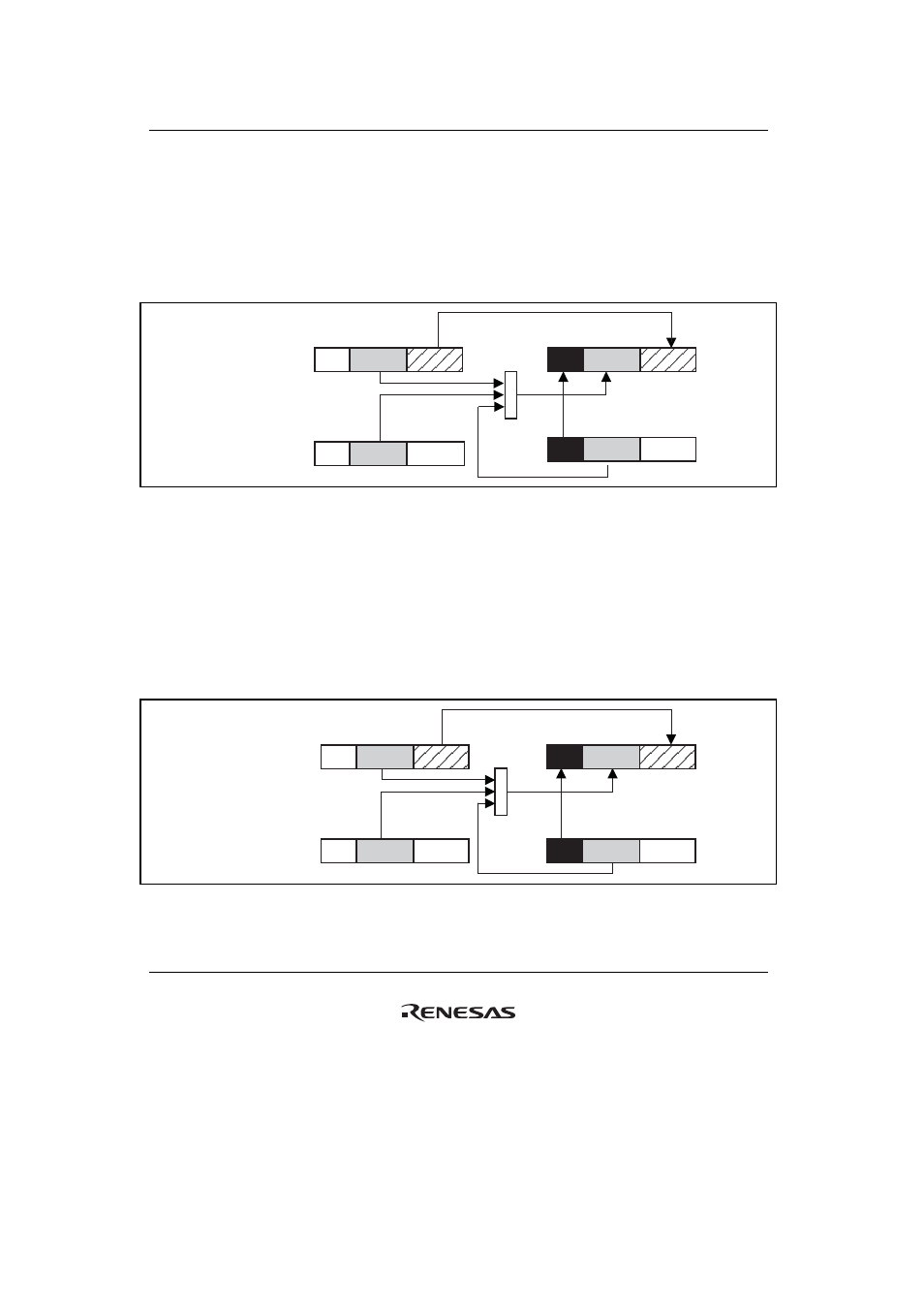

Figure 13.3 Access from SuperHyway Bus to PCI Memory (PCI Bus)

(PCI Memory Space 0)

For PCI memory space 1 accesses, the middle eight bits ([25:18]) are controlled by PCIMBMR1.

• PCIMBMR1 [25:18] B'11 1111 11: PCI address [25:18] = SuperHyway bus address [25:18]
• PCIMBMR1 [25:18] B'00 0000 00: PCI address [25:18] = PCIMBR1 [25:18]

The upper six bits ([31:26]) of a SuperHyway bus address are replaced with bits 31 to 26 in
PCIMBR1.

SHwy bus address

PCI address

PCIMBMR1

PCIMBR1

mask

31 26 25

31 26

Figure 13.4 Access from SuperHyway Bus to PCI Memory (PCI Bus)

(PCI Memory Space 1)
