32. Electrical Characteristics
Rev.1.00 Jan. 10, 2008 Page 1614 of 1658
REJ09B0261-0100
t
MMRCS
t
MMRCH
MMCCLK
MMCCMD (Input)
MMCDAT (Input)
t
MMRDS
t
MMRDH

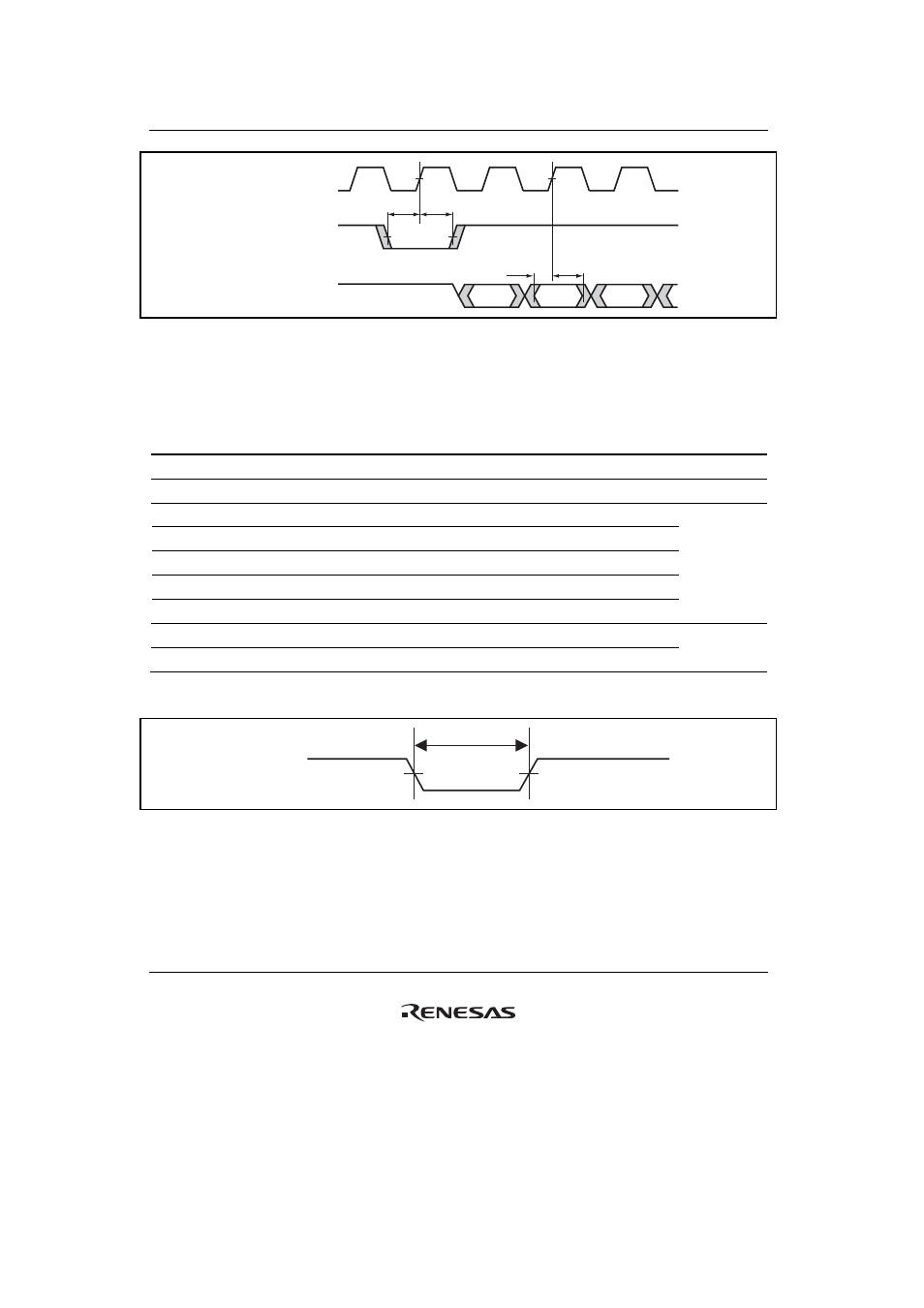

Figure 32.57 MMCIF Reception Timing (Sampling on Rising Edges)
32.3.15 HAC Interface Module Signal Timing
Table 32.20 HAC Interface Module Signal Timing
Item Symbol Min. Max. Unit Figure
HAC_RES active low pulse width t
RST_LOW
1000 — ns 32.58
HAC_SYNC active pulse width t
SYN_HIGH
1000 — ns 32.59
HAC_SYNC delay time 1 t
SYNCD1
— 15 ns
HAC_SYNC delay time 2 t
SYNCD2
— 15 ns
HAC_SDOUT delay time t
SDOUTD
— 15 ns
HAC_SDIN setup time t
SDIN0S
10 — ns
HAC_SDIN hold time t
SDIN0H
10 — ns
32.61
HAC_BITCLK input high level width t
ICL0_HIGH
t
Pcyc
/2 — ns 32.60
HAC_BITCLK input low level width t
ICL0_LOW
t
Pcyc
/2 — ns
Note: t
Pcyc
is the period of one peripheral clock (Pck) cycle.
HAC_RES
t
RST_LOW
Figure 32.58 HAC Cold Reset Timing
