23. Serial Peripheral Interface (HSPI)
Rev.1.00 Jan. 10, 2008 Page 1165 of 1658
REJ09B0261-0100
23.4 Operation
23.4.1 Operation Overview with FIFO Mode Disabled

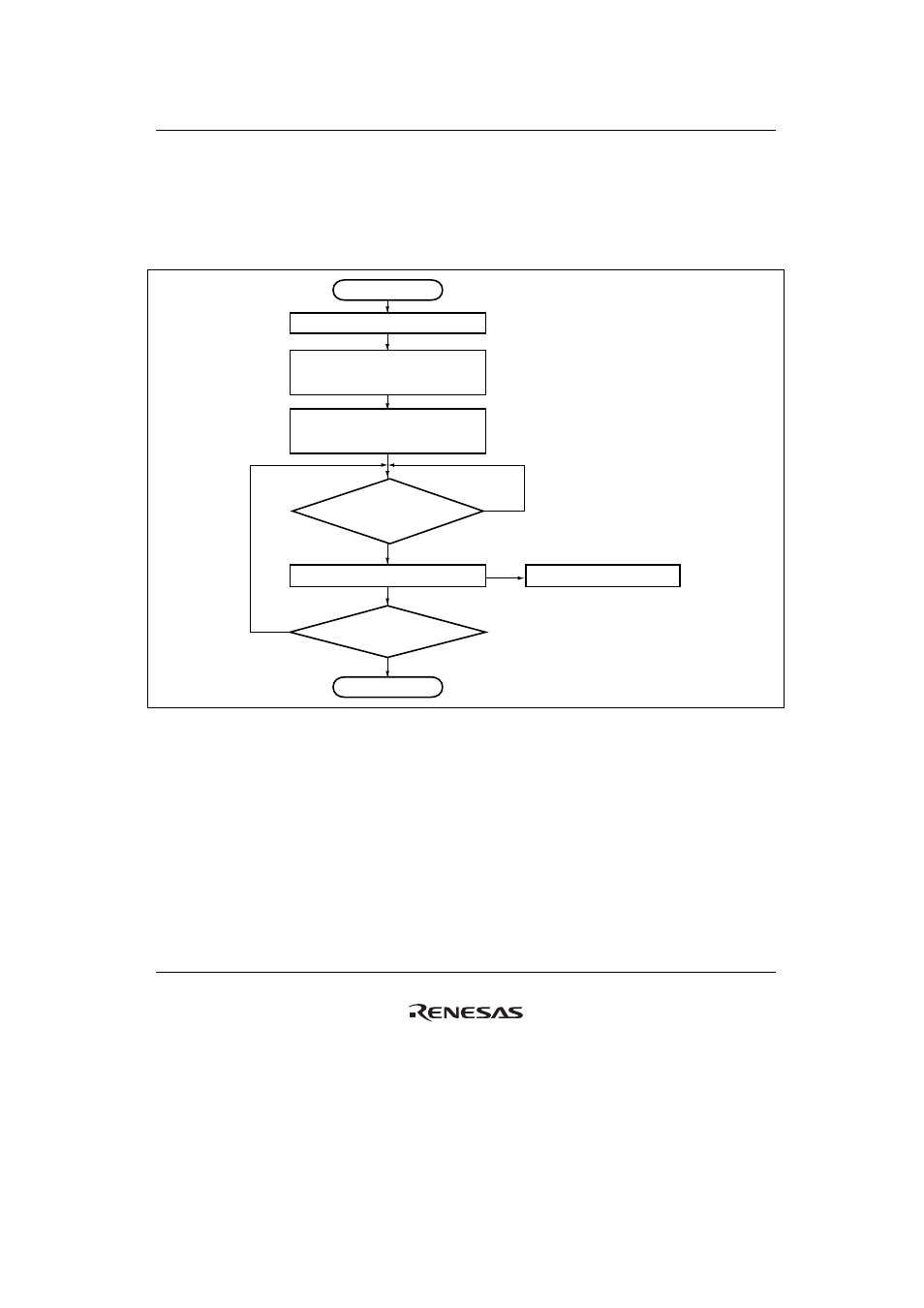

Figure 23.2 shows the flow of a transmit/receive operation procedure.
Yes
No
No
Yes
Start
Reset the system
Select master or slave
operation by setting the MASL bit
in SPSCR
Select required interrupts by
setting TFIE and ROIE bits in
SPSCR
Check if
SPTBR is empty by
reading the TXFL bit
in SPSR
Write data to SPTBR TX/RX data to/from slave
Another
transmit required?
End
Figure 23.2 Operational Flowchart
Depending on the settings of SPCR, the master transmits data to the slave on either the falling or
rising edge of HSPI_CLK and samples data from the slave at the opposite edge. The data transfer
between the master and slave is completed when the transmit complete status flag (TXFN) in
SPSR is set to 1. This flag should be used to identify when an HSPI transfer event (byte
transmitted and byte received) has occurred, even in the case where the HSPI module is used to
receive data only (null data being transmitted). By default data is transmitted MSB first, but LSB
first is also possible depending on how the LMSB bit in SPSCR is set.
During the transmit operation the slave responds by sending data to the master synchronized with
the HSPI_CLK from the master transmitted. Data from the slave is sampled and transferred to the
shift register in the module and on completion of the transmit operation, is transferred to SPRBR.
