To bind an IP ACL to one or more interfaces:

1. Launch a web browser.

2. In the address field of your web browser, enter the IP address of the switch.

The login page displays.

3. Click the Main UI Login button.

The main UI login page displays in a new tab.

4. Enter admin as the user name, enter your local device password, and click the Login

button.
The first time that you log in, no password is required. However, you then must
specify a local device password to use each subsequent time that you log in.

The System Information page displays.

5. Select Security > ACL > Advanced > IP Binding Configuration.

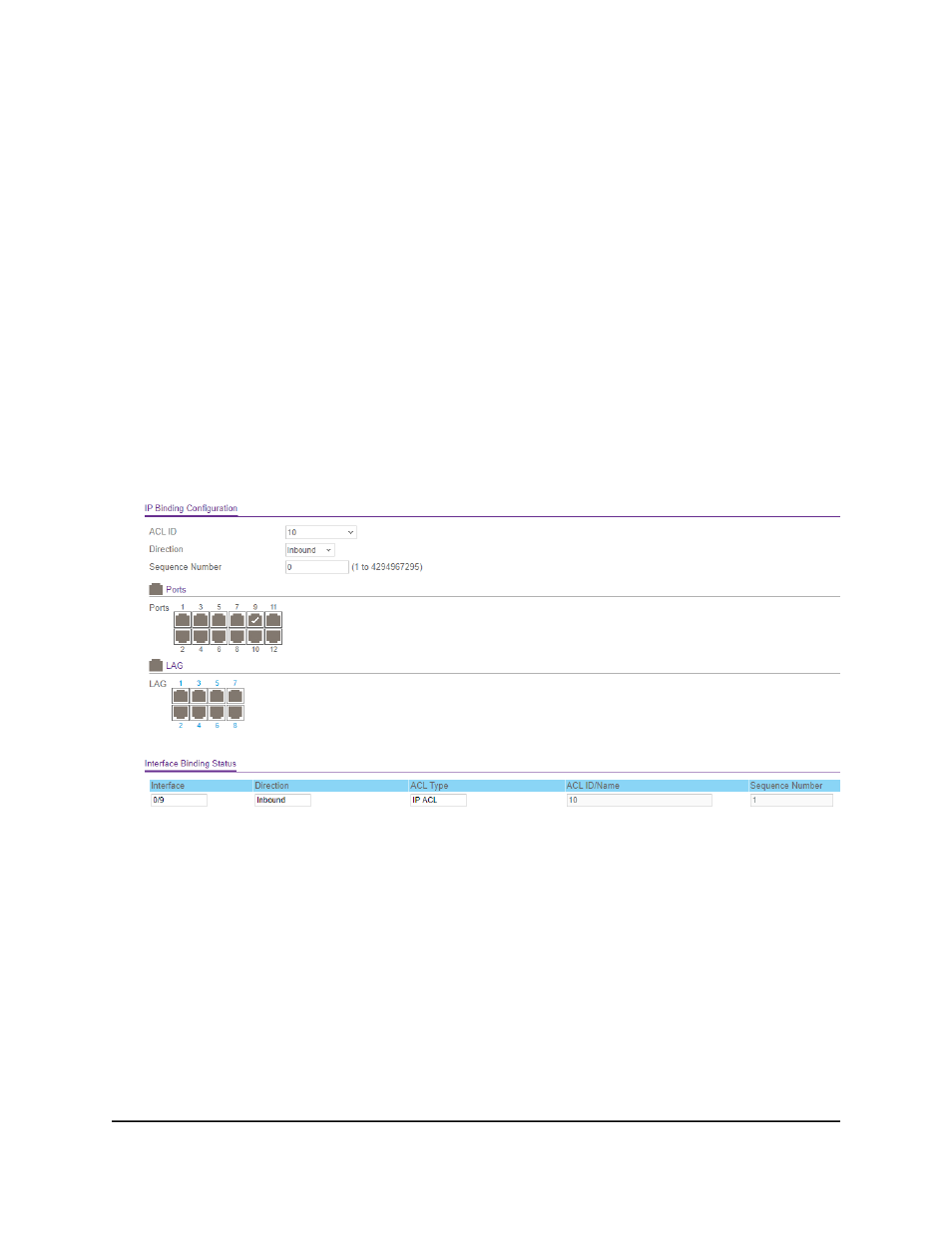

The previous figure shows the page for a 12-port model and includes some examples.

6. From the ACL ID menu, select an IP ACL.

Note: Binding an ACL to an interface fails is the switch has no resources to bind a
new ACL. In addition, you cannot bind both an IPv4 ACL and an IPv6 ACL to an
interface.

7. From the Direction menu, select the packet filtering direction for the ACL:

• Inbound: The rule is applied to traffic entering the port.
• Outbound: The rule is applied to traffic leaving the port.
