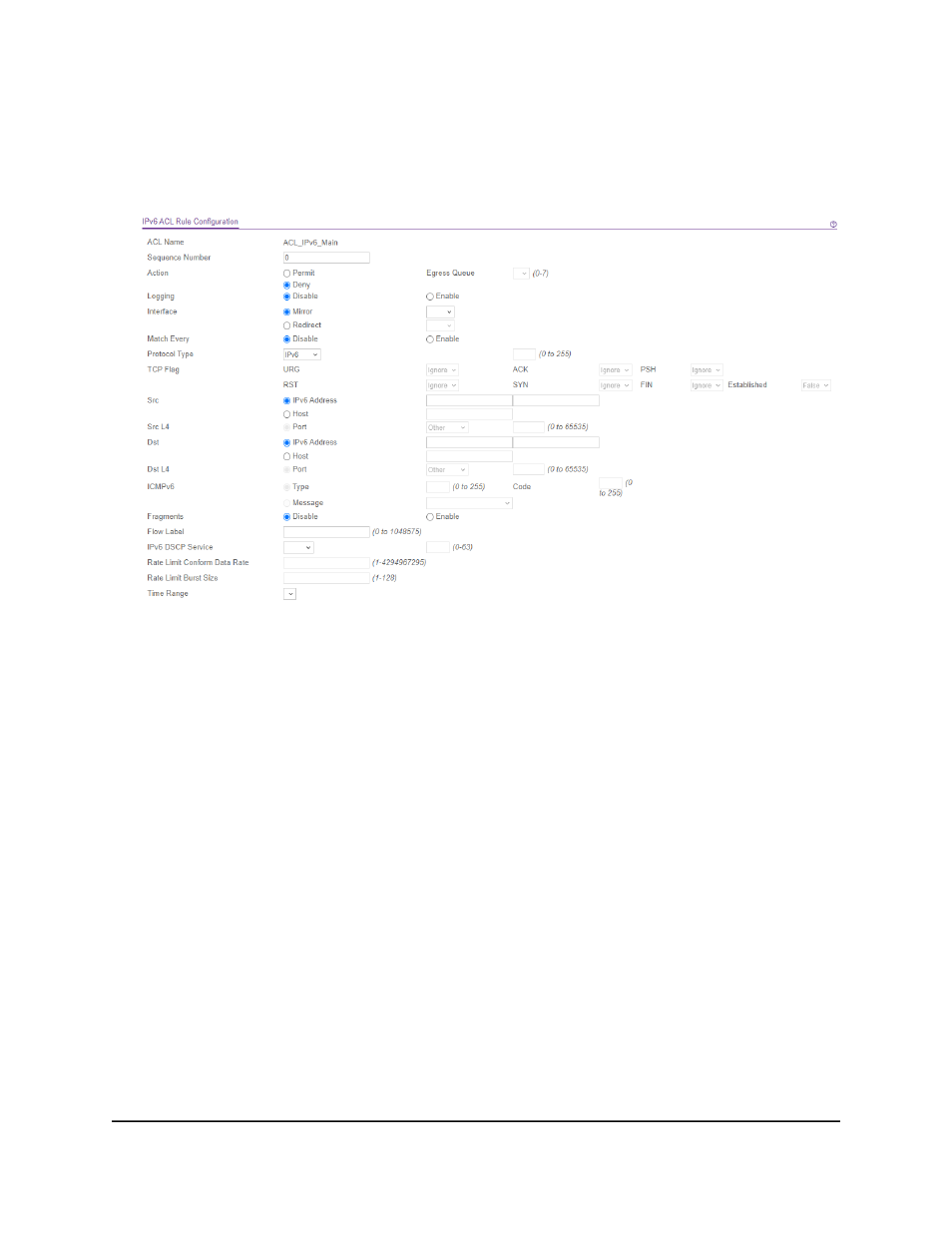

6. From the ACL Name menu, select the IPv6 ACL for which you want to add or a
change a rule.
7. Click the Add button.
8. Configure the following options for the rule:
• Sequence Number: Enter a whole number in the range of 1 to 2147483647. This
number is used to identify the rule. An IPv6 ACL can contain up to 1023 rules.
• Action: Select the ACL forwarding action by selecting one of the following radio
buttons:
•
Permit: Forward packets that meet the ACL criteria.
•
Deny: Drop packets that meet the ACL criteria.
• Egress Queue: If you select the Permit radio button, select the hardware egress
queue identifier that is used to handle all packets matching this IPv6 ACL rule.
The range of queue IDs is 0 to 7.
• Logging: If you select the Deny radio button, you can enable logging for the ACL
by selecting the Enable radio button. (Logging is subject to resource availability
in the device.)
If the access list trap flag is also enabled, periodic traps are generated, indicating
the number of times this rule was evoked during the report interval. A fixed
five-minute report interval is used for the switch. A trap is not issued if the ACL
rule hit count is zero for the current interval.
