7. Click the Add button.

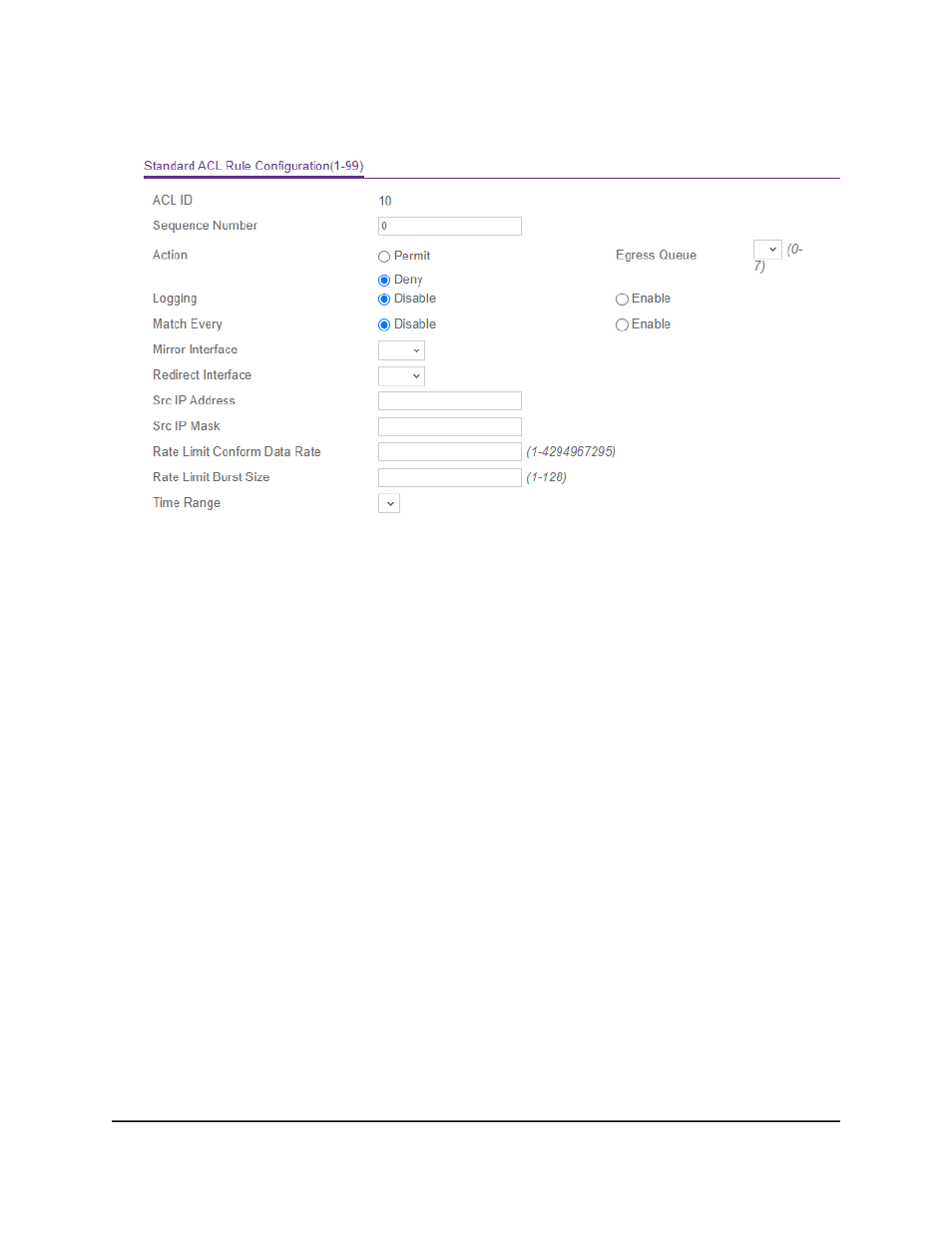

8. Specify the following match criteria for the rule:

• Sequence Number: Enter an ACL sequence number in the range from 1 to

2147483647 that is used to identify the rule. An IP ACL can contain up to 50 rules.

• Action: Select the ACL forwarding action, which is one of the following:

Permit: Forward packets that meet the ACL criteria.
Egress Queue: If the selection form the Action menu is Permit, you can specify
the hardware egress queue identifier that is used to handle all packets matching
this IP ACL rule. The range of queue IDs is from 0 to 7.

Deny: Drop packets that meet the ACL criteria.
Logging: If the selection from the Action menu is Deny, you can enable
logging for the ACL by selecting the Enable radio button. (Logging is subject
to resource availability on the switch.)

• Match Every: Select one of the radio buttons to specify whether all packets must

match the selected IP ACL rule:

Enable: All packets must match the selected IP ACL rule and are either
permitted or denied.

Disable: Not all packets need to match the selected IP ACL rule.

• Mirror Interface: From the menu, select the egress interface to which the matching

traffic stream must be copied, in addition to being forwarded normally by the
switch.
