5. Select Security > ACL > Basic > MAC Binding Configuration.

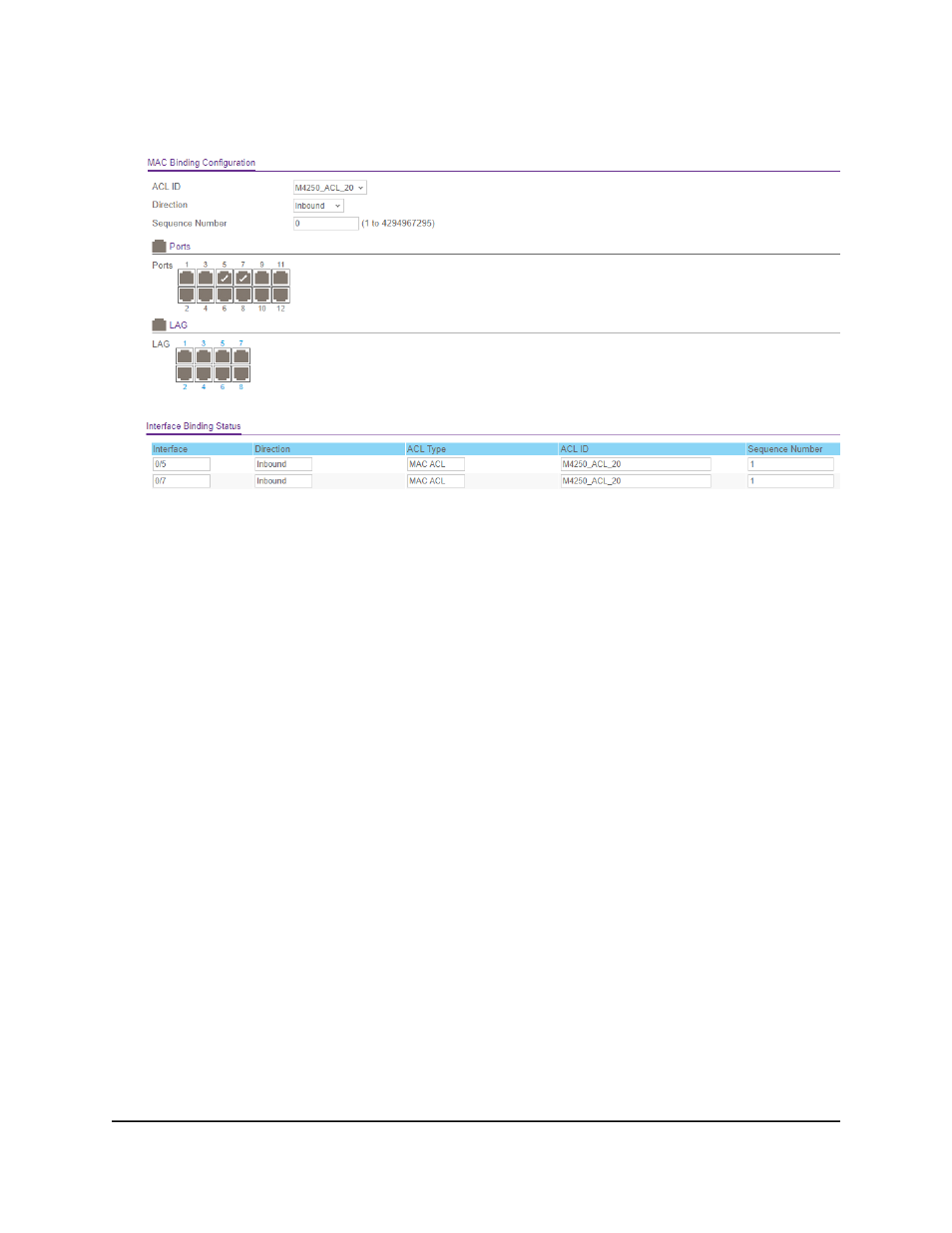

The previous figure shows the page for a 12-port model and includes some examples.
6. From the ACL ID menu, select an ACL.
7. From the Direction menu, select the traffic direction for the MAC binding:
• Inbound: The MAC binding can be applied to incoming traffic only.
• Outbound: The MAC binding can be applied to outgoing traffic only.
8. In the Sequence Number field, optionally specify a number to indicate the order of
the access list relative to other access lists already assigned to the interface and
direction.
A low number indicates high precedence order. If a sequence number is already in
use for the interface and direction, the specified access list replaces the currently
attached access list using that sequence number. If you do not specify the sequence
number, a sequence number that is one number greater than the highest sequence
number currently in use for the interface and direction is used. The range is from 1
to 4294967295.
9. To add the selected ACL to a port or LAG, in the Ports table or LAG table, click the
port or LAG so that a check mark displays.
You can add the ACL to several ports and LAGs.
The Ports and LAG tables display the available interfaces for ACL bindings.
10. Click the Apply button.
Your settings are saved.
11. To save the settings to the running configuration, click the Save icon.
