Configure rules for an extended IPv4 ACL
You can define rules for extended IPv4 ACLs. The access list definition includes rules
that specify whether traffic matching the criteria is forwarded normally or discarded.
Note: An implicit deny all rule is included at the end of an ACL list. This means that if
an ACL is applied to a packet and if none of the explicit rules match, then the final implicit
deny all rule applies and the packet is dropped.
Add a rule for an extended IPv4 ACL
To add a rule for an extended IPv4 ACL:
1. Launch a web browser.
2. In the address field of your web browser, enter the IP address of the switch.
The login page displays.
3. Click the Main UI Login button.
The main UI login page displays in a new tab.
4. Enter admin as the user name, enter your local device password, and click the Login
button.
The first time that you log in, no password is required. However, you then must
specify a local device password to use each subsequent time that you log in.
The System Information page displays.

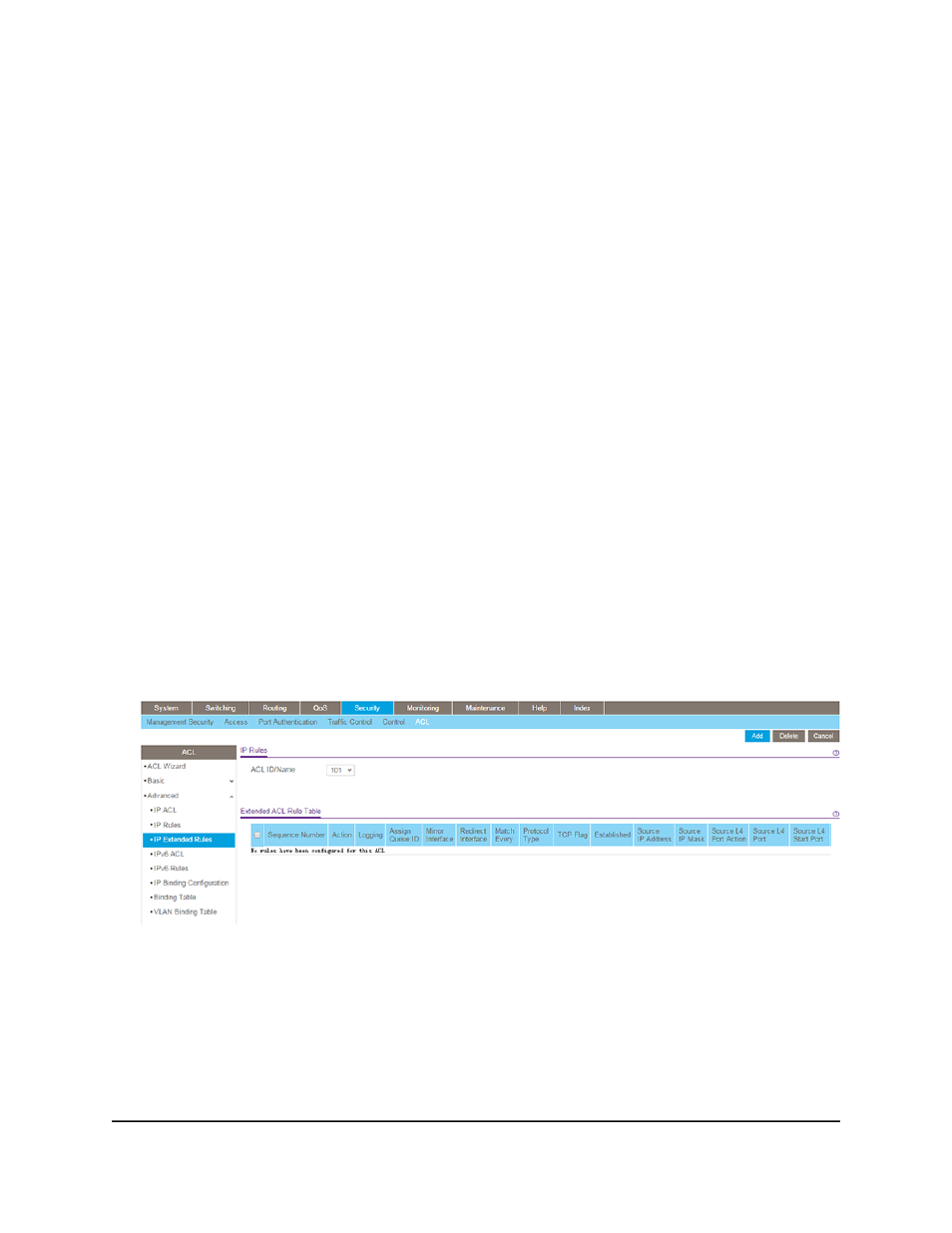

5. Select Security > ACL > Advanced > IP Extended Rules.
If no rules exists, the Extended ACL Rule Table shows the message
No rules have
been configured for this ACL
. If one or more rule exists for the ACL, the rules display
in the Extended ACL Rule Table.
6. From the ACL ID/Name menu, select the IP ACL for which you want to add a rule.
For extended IP ACLs, this must be an ID in the range from 101 to 199 or a name.
