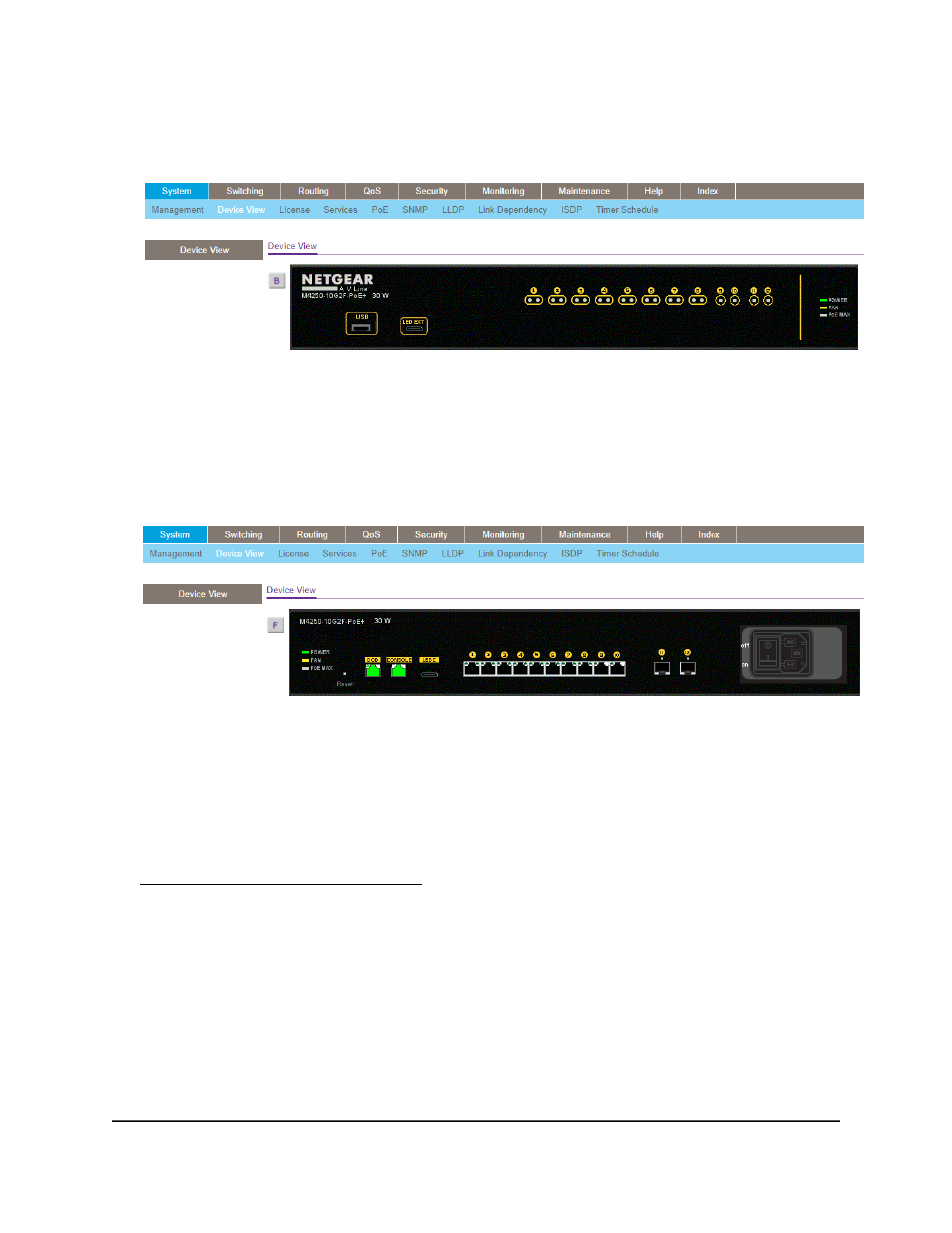

As an example, the following figure shows the front view of model
M4250-10G2F-PoE+.

6. To display the back view, click the B button.

The B button changes into the F button. (Clicking the F button displays the front
view again.)

As an example, the following figure shows the back view of model
M4250-10G2F-PoE+.

The port coloring indicates the port status:

• Black. The port is not connected to a device or disabled.
• Green. The port is connected to a device or enabled.
• Red. An error occurred on the port.

The system LEDs indicate the system status. For more information, see the hardware
installation guide, which you can download by visiting
netgear.com/support/download/.

7. To display the menus that let you configure ports, right-click a port.

Main User Manual

30
