4. Enter admin as the user name, enter your local device password, and click the Login

button.
The first time that you log in, no password is required. However, you then must
specify a local device password to use each subsequent time that you log in.

The System Information page displays.

5. Select Switching > VLAN > Advanced > Protocol Based VLAN Group Membership.

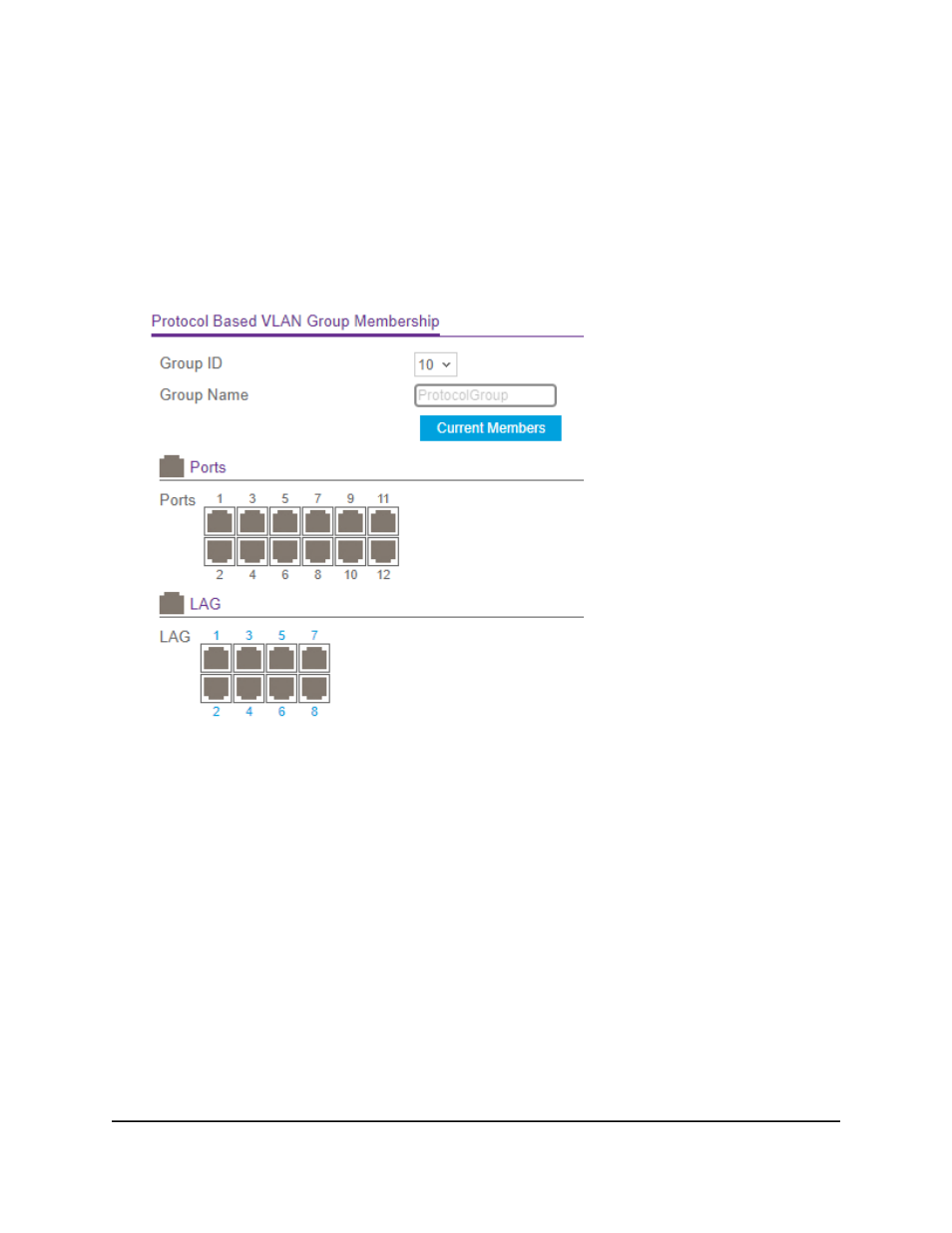

The previous figure shows the page for a model with 12 ports. Depending on your
switch model, the Ports icon (above the Ports table) might show as the Unit 1 icon.

6. From the Group ID menu, select the protocol-based VLAN group ID.

The Group Name field shows the name for the protocol-based VLAN that you
selected.

7. To display the current members of the selected protocol-based VLAN group, click

the Current Members button.
A pop-up window displays the members.

8. To select physical interfaces for the VLAN, do one the following:

• Select all physical interfaces: Click the Ports icon or Unit 1 icon above the Ports

table.

• Select individual physical interfaces: In the Ports table, click one or more ports

individually.
