5. Select Security > Traffic Control > MAC Filter.

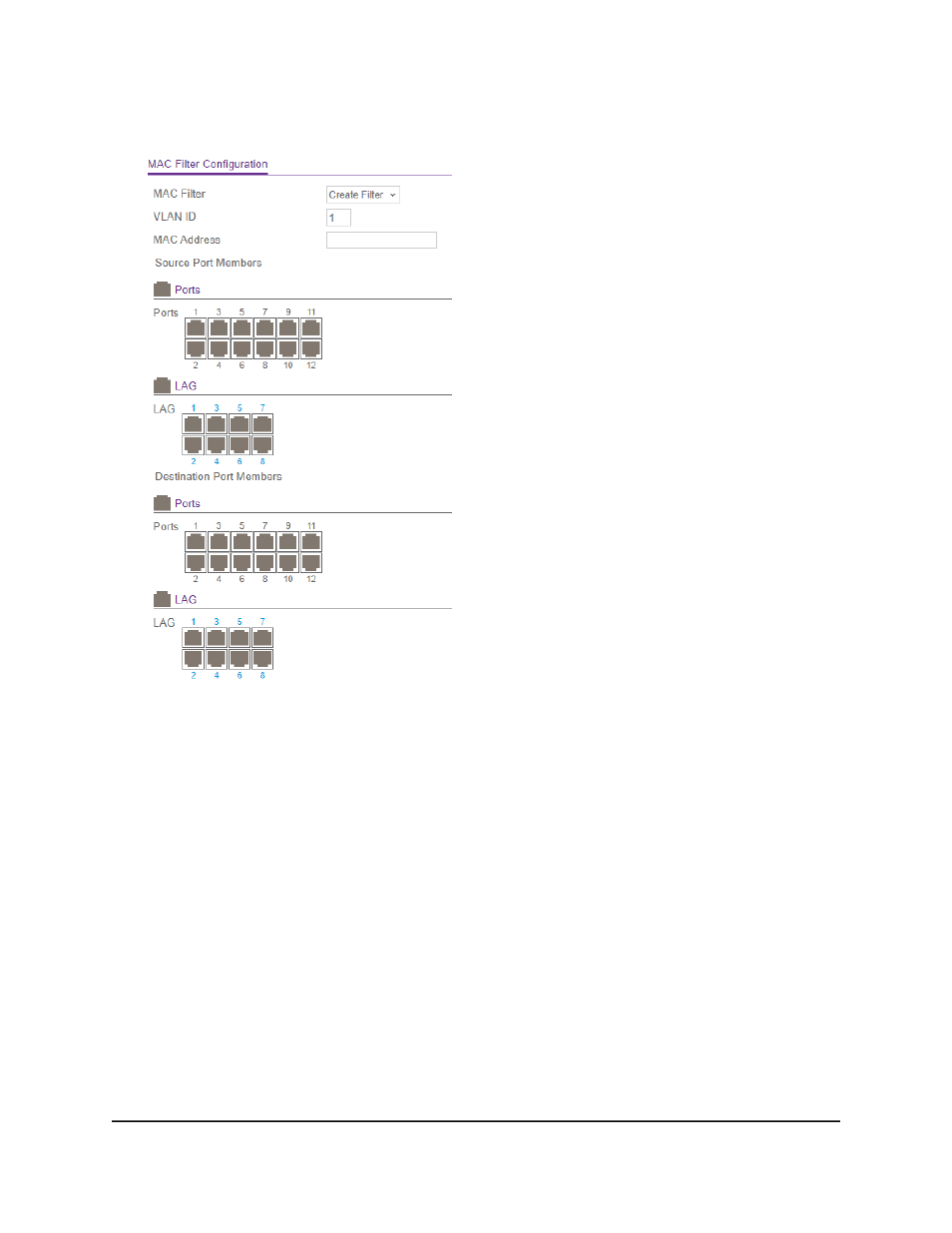

The previous figure shows the page for a 12-port model.

6. From the MAC Filter menu, select Create Filter.

If you did not configure any filters, this is the only option available.

7. From the VLAN ID menu, select the VLAN that must be used with the MAC address.

8. In the MAC Address field, specify the MAC address of the filter in the format

XX:XX:XX:XX:XX:XX.
You cannot define filters for the following MAC addresses:

00:00:00:00:00:00
01:80:C2:00:00:00 to 01:80:C2:00:00:0F
01:80:C2:00:00:20 to 01:80:C2:00:00:21
FF:FF:FF:FF:FF:FF

9. In the Port and LAG tables in the Source Port Members section, select the ports and

LAGs that must be included in the inbound filter.
