Transceiver Reconfiguration Controller PLL Reconfiguration

You can use the PLL reconfiguration registers to change the reference clock input to the TX PLL or the

clock data recovery (CDR) circuitry.
The PLL registers for dynamic reconfiguration feature are available when you select one of the following

transceiver PHY IP cores:
• Custom PHY IP Core

• Low Latency PHY IP Core

• Deterministic Latency PHY IP Core

• Arria V, Arria V GZ, Cyclone V, and Stratix V Native PHYs
You can establish the number of possible PLL configurations on the Reconfiguration tab of the

appropriate transceiver PHY IP core. The Reconfiguration tab allows you to specify up to five input

reference clocks and up to four TX PLLs. You can also change the input clock source to the CDR PLL; up

to five input clock sources are possible. If you plan to dynamically reconfigure the PLLs in your design,

you must also enable

Allow PLL Reconfiguration

and specify the Main TX PLL logical index

which is the PLL that the Quartus II software instantiates at power up. The following figures illustrates

these parameters.

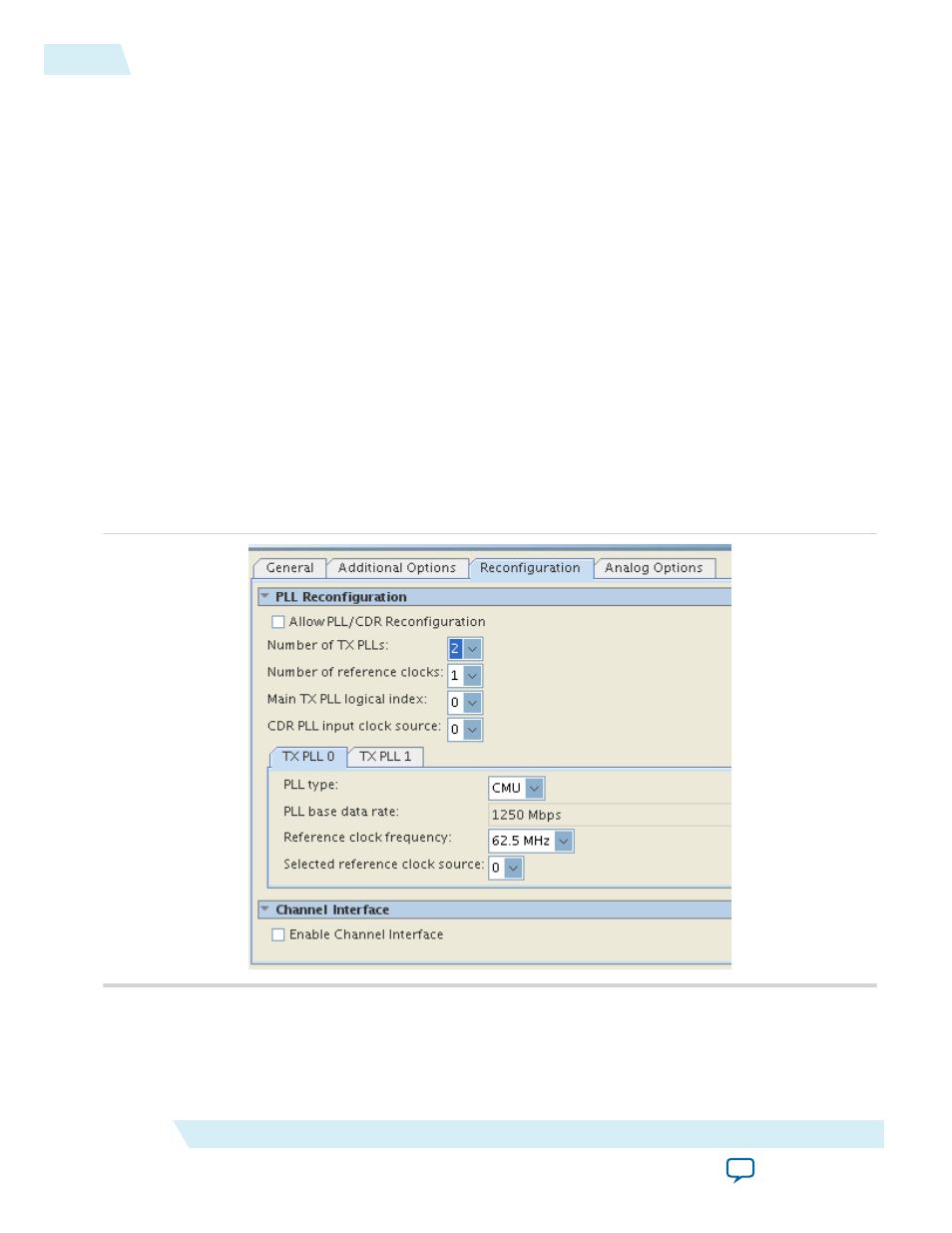

Figure 16-4: Reconfiguration Tab of Custom, Low Latency, and Deterministic Latency Transceiver PHYs
