Serial Communications Controllers (SCCs)
MPC8260 PowerQUICC II Family Reference Manual, Rev. 2
Freescale Semiconductor 20-19

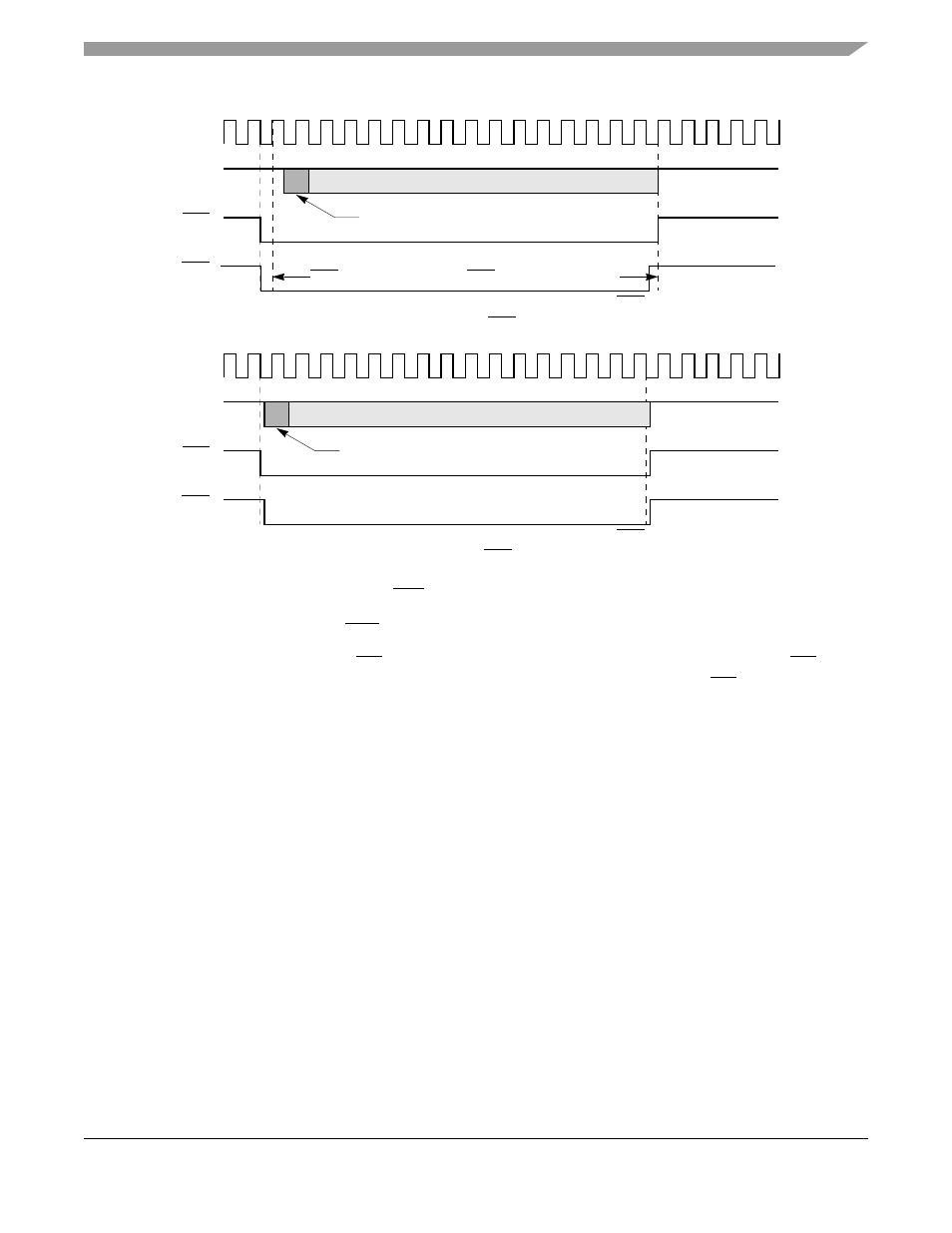

Figure 20-11. CTS Lost in Synchronous Protocols
Note that if GSMR_H[CTSS] = 1, CTS transitions must occur while the Tx clock is low.
Reception delays are determined by CD as shown in Figure 20-12 . If GSMR_H[CDS] is zero, CD is
sampled on the rising Rx clock edge before data is received. If GSMR_H[CDS] is 1, CD transitions cause
data to be immediately gated into the receiver.
1. GSMR_H[CTSS] = 0. CTSP=0 or no CTS lost can occur.
TCLK
TXD
First Bit of Frame Data
NOTE:
CTS Sampled Low Here
1. GSMR_H[CTSS] = 1. CTSP=0 or no CTS lost can occur.
TCLK
First Bit of Frame Data
NOTE:
CTS Sampled High Here
Data Forced High
RTS Forced High
Data Forced High
RTS Forced High
CTS Lost Signaled in Frame B
CTS Lost Signaled in Frame B
(Output)
RTS
(Output)
CTS
(Input)
CTS
(Input)
RTS
(Output)
TXD
(Output)
