The 60x Bus
MPC8260 PowerQUICC II Family Reference Manual, Rev. 2
8-28
Freescale Semiconductor

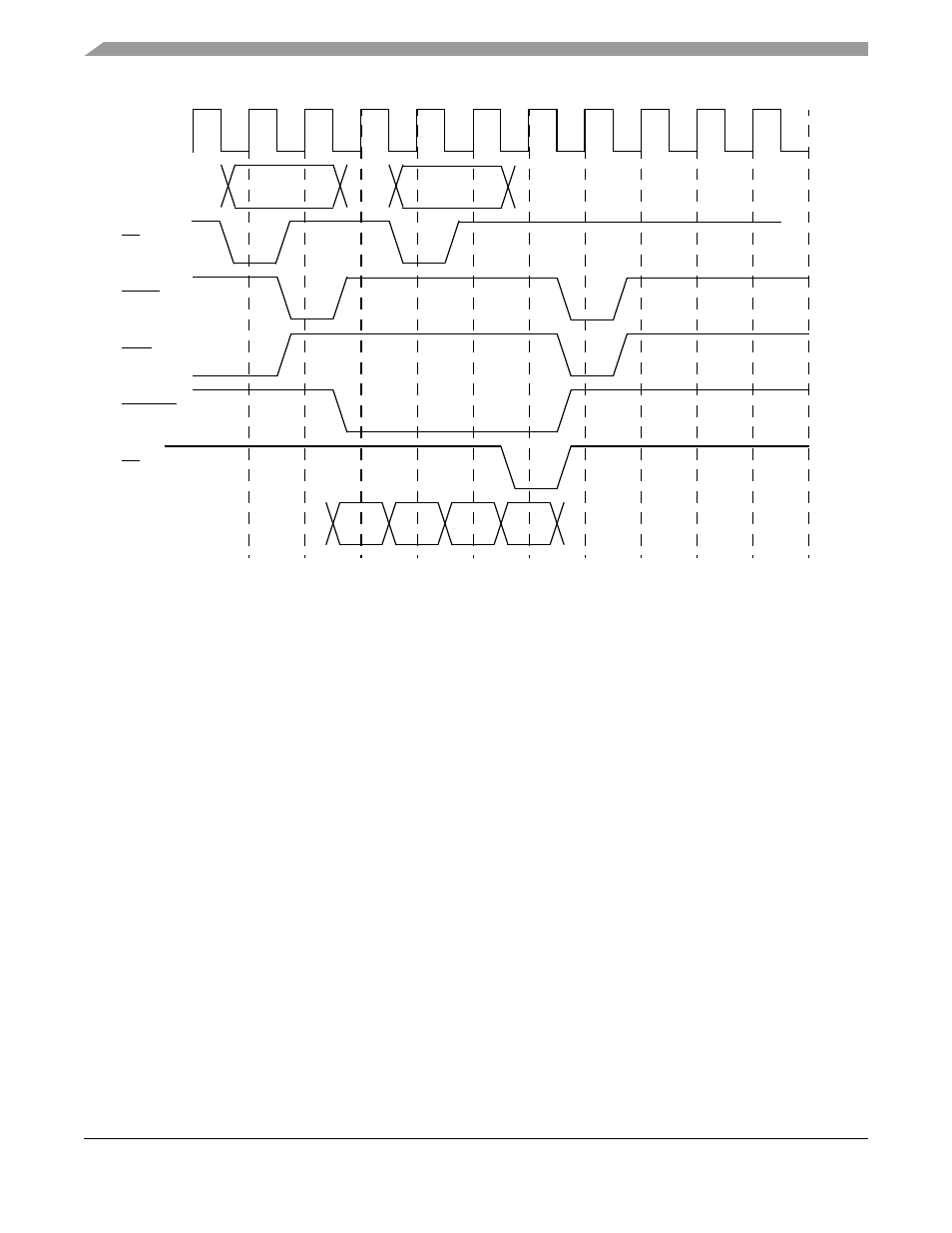

Figure 8-9. 28-Bit Extended Transfer to 32-Bit Port Size
shows a burst transfer to a 32-bit port. Each double-word burst beat is divided into two
port-sized beats such that the four double words are transferred in eight beats.
CLKOUT
ADDR + ATTR
TS
AACK
DBG
PSDVAL
D[0–31]
TA
D0
D1
D2
D3
