Secondary (L2) Cache Support
MPC8260 PowerQUICC II Family Reference Manual, Rev. 2
12-4 Freescale Semiconductor

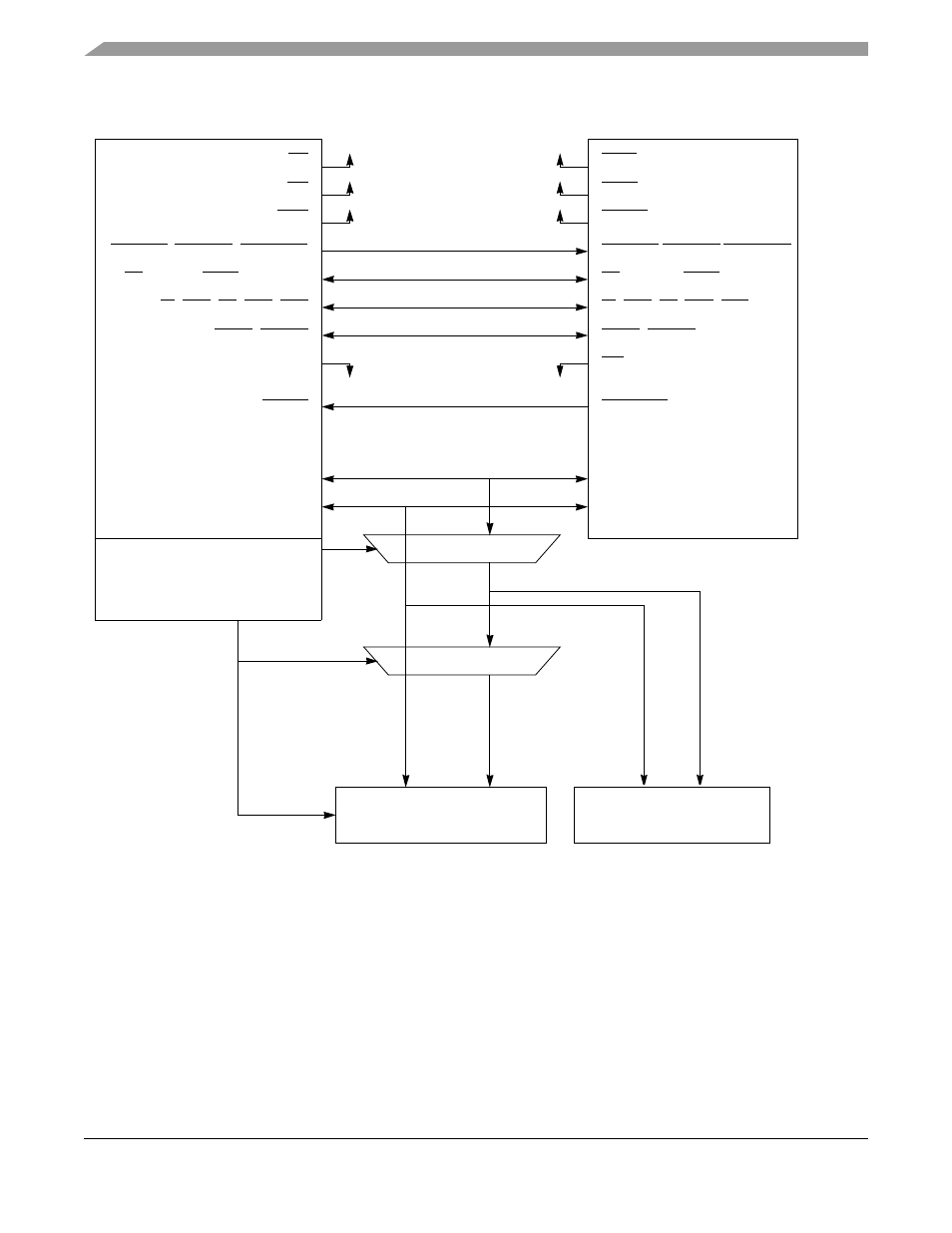

Figure 12-2. External L2 Cache in Write-Through Mode
12.1.3 ECC/Parity Mode
ECC/parity mode is a subset of write-through mode with some connection changes that allow the L2 cache
to support ECC or Parity. The connection changes are:
• The PowerQUICC II’s DP[0:7] signals are connected to the L2 cache’s DP[0:7] signals.
• The L2’s TSIZ[0:2] signals are pulled down to always indicate 8-byte transaction size.
• The L2’s A[29:31] signals are pulled down.
BR
DBG
TS, TT[0:4], TBST, TSIZ[1–3]
A[0–31]
CI, GBL, TA, DBB, TEA
CPU_BR, CPU_BG, CPU_DBG
D[0–63]
PowerQUICC II
L2BR
L2DBG
TS, TT[0–4], TBST, TSIZ[0–2]
CI, GBL, TA, DBB, TEA
AACK, ARTRY AACK, ARTRY
CPU_BR,CPU_BG,CPU_DBG
L2_CLAIM L2_HIT
A[0–31]
D[0–63]
Memory Controller
SDRAM Main Memory
Latch
MUX
I/O Devices
MPC2605
BG L2BG
TSIZ[0]
(pull down)
WT
(pull down)
(pull up) (pull up)
