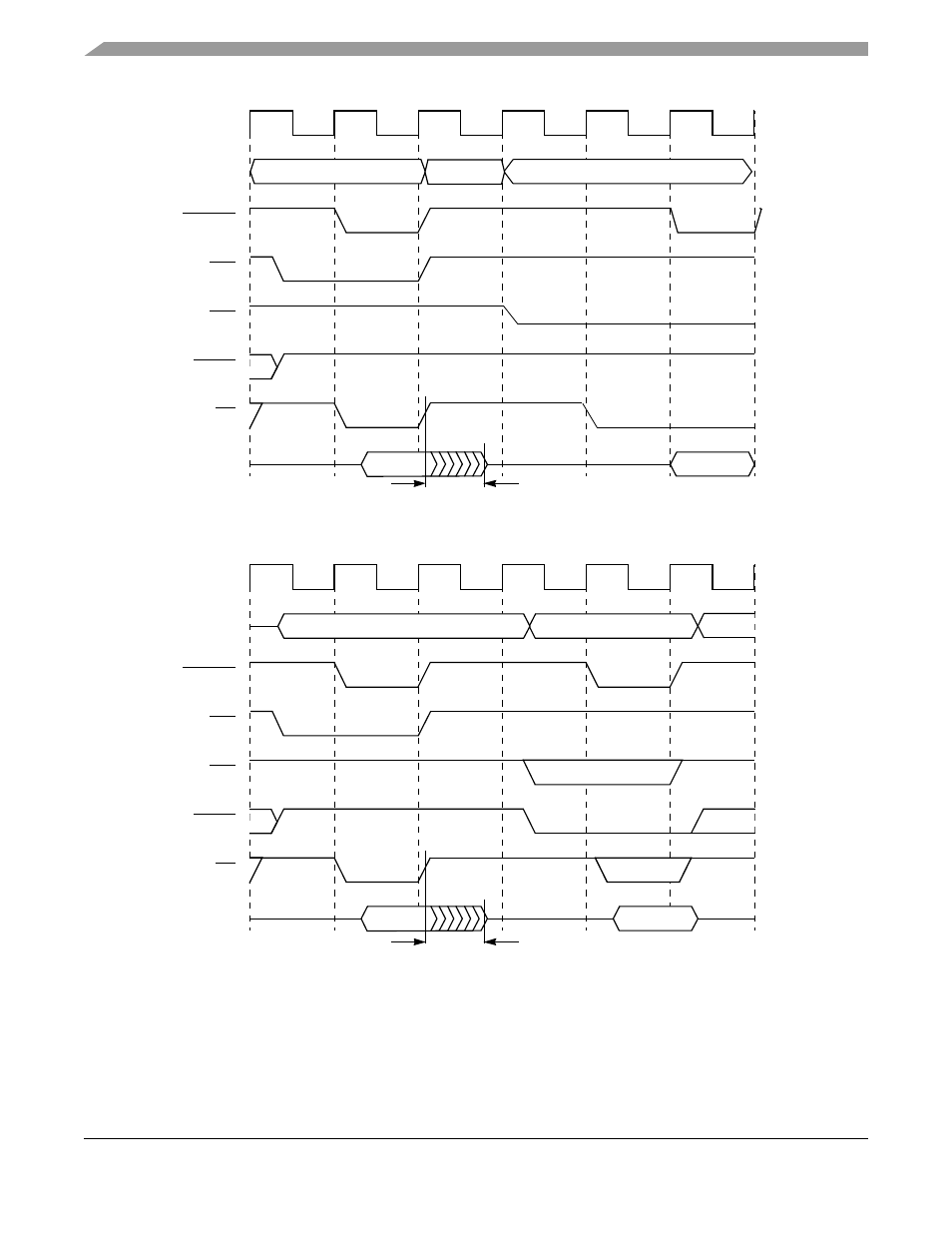

Figure 11-51. GPCM Read Followed by Read (OR
x[29–30] = 01)
Figure 11-52. GPCM Read Followed by Write (OR
x[29–30] = 01)
Clock
Address
PSDVAL
CSx
CSy
BCTL
x
OE
Data
Hold Time
1-cycle hold time allowed
Clock
Address
PSDVAL
CSx
CSy
BCTL
x
OE
Data
Hold Time
Long hold time allowed
