FCC HDLC Controller
MPC8260 PowerQUICC II Family Reference Manual, Rev. 2
36-16 Freescale Semiconductor

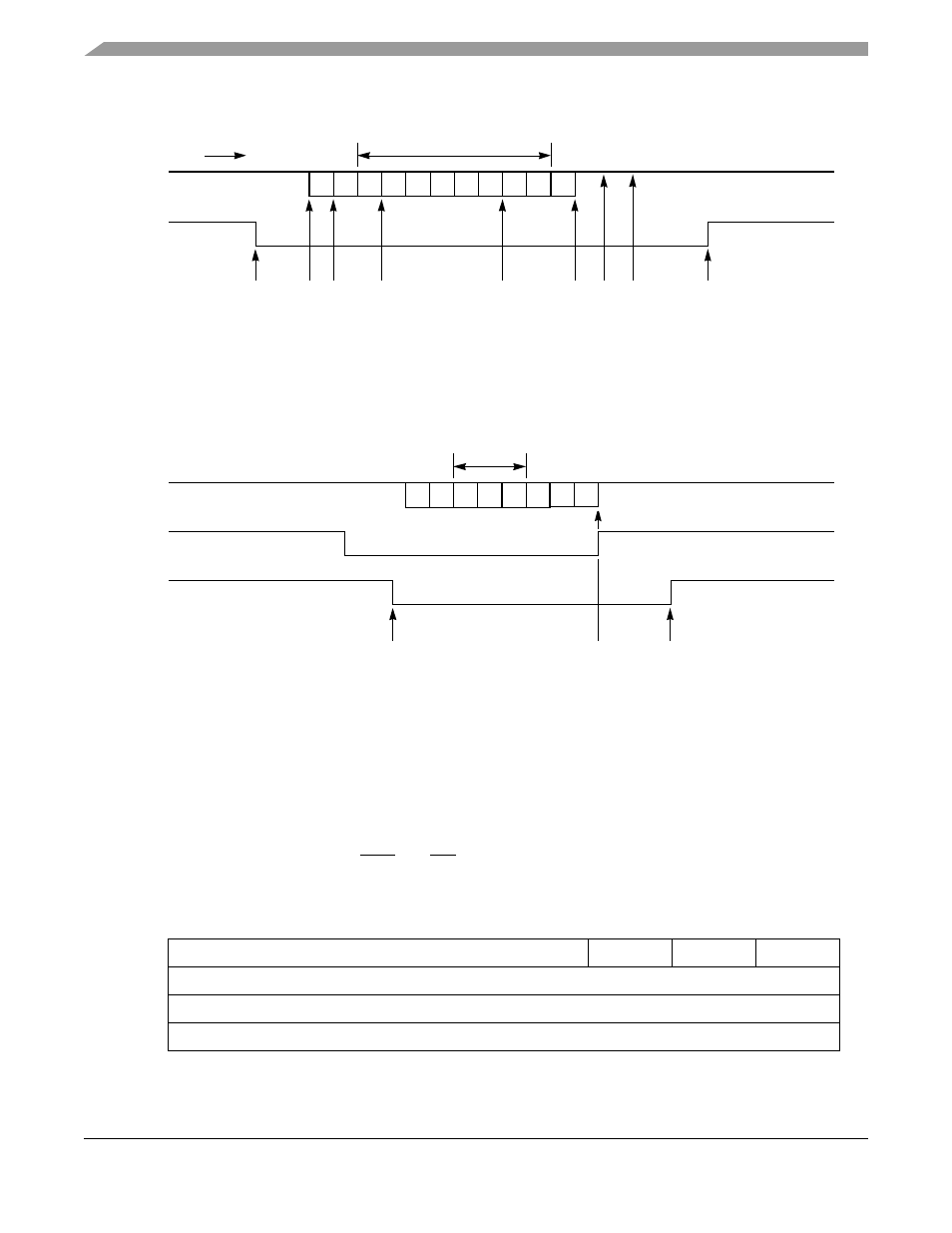

Figure 36-8. HDLC Interrupt Event Example
36.10 FCC Status Register (FCCS)
The FCCS register, shown in Figure 36-9 , allows the user to monitor real-time status conditions on the
RXD line. The real-time status of the CTS and CD signals are part of the parallel I/O port; see Chapter 40,
“Parallel I/O Ports.”
0 1 2 3 4 5 6 7
Field — FG — ID
Reset 0000_0000
R/W R
Addr 0x0x11318 (FCCS1), 0x0x11338 (FCCS2), 0x0x11358 (FCCS3)
Figure 36-9. FCC Status Register (FCCS)
CD IDL FLG RXB RXF IDL CD
Line Idle
Stored in Rx Buffer
RXD
CD
Frame
Received by HDLC
Time
Line Idle
TXD
RTS
Frame
Transmitted by HDLC
CTS
TXB CT CT
Line Idle Line Idle
Stored in Tx Buffer
Notes:
HDLC FCCE
Events
1. RXB event assumes receive buffers are 6 bytes each.
2. The second IDL event occurs after 15 ones are received in a row.
3. The FLG interrupts show the beginning and end of flag reception.
4. The FLG interrupt at the end of the frame may precede the RXF interrupt due to receive FIFO latency.
5. The CD event must be programmed in the parallel I/O port, not in the FCC itself.
Notes:
HDLC FCCE
Events
1. TXB event shown assumes all three bytes were put into a single buffer.
2. Example shows one additional opening flag. This is programmable.
F F A A C I I I CR CR F
FLG FLG
FLG
6. F = flag, A = address byte, C = control byte, I = information byte, and CR = CRC byte
F F A A C CR CR F
3. The CT event must be programmed in the parallel I/O port, not in the FCC itself.
