Inverse Pan Reflects one side’s panning location
and direction in the other side (for example,
left- and right-channel Pan controls).
Link and Unlink Lets you link and unlink left and
right (or other) outputs in stereo (or multichan-
nel). Unlinked mode provides discrete adjust-
ment of individual sides, or channels. When
linked, all changes affect all channels. See “Pan-
ner Linking” on page 850.
Target Identifies the target of plug-in settings
commands. Also sets the current window for
display of Output windows. See “Targeted Win-
dows” on page 852.
Path Meter View Opens the path Meter View.
These meters display levels of the selected path
(not the levels of the track or send).
Track Fader, Pan Controls, and Solo,
Mute, and Automation Controls
Output windows provide the associated track’s
Volume fader, Pan controls, Solo and Mute
switches, and Automation Mode selector. Use
these to adjust or automate the controls of the
Output window.
Targeted Windows
When lit (red), the Target indicates its window is
“targeted,” and the next window opened of the
same type replaces the current display (unless it
is opened as an additional window with the
Shift modifier). When unlit, the target is gray,
and the current window anchors to its current
contents and location on-screen. Opening addi-
tional windows does not affect anchored win-
dows.
To set an open Send window as the target window:
„ Click the Target, so that it is lit (red).
Using Output Windows
Output windows provide standard Pro Tools
track, send, Target, and other controls.
To move to a different track:
„ Click the Track selector and choose a track
from the pop-up menu.
To reassign output:
„ Click the Output Path selector and select a
path from the pop-up menu.

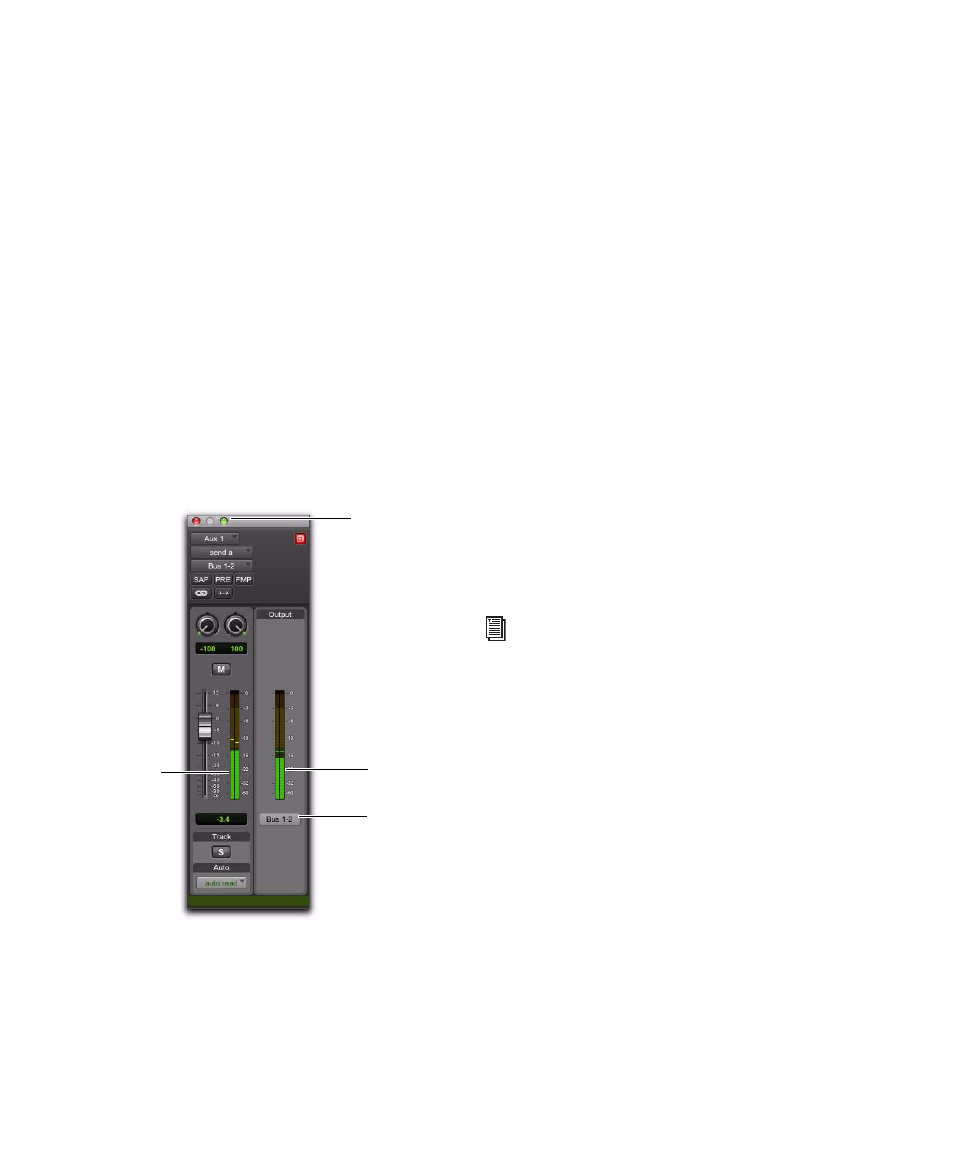

Path Meter View in a Send window
Path
Path Meter
Send meter
Path Meter
selector
meters
View button
Plug-in windows have additional features
related to the Target (such as Focus of Set-
tings commands). See “The Plug-in Win-
dow” on page 880.
