Scan Line Thickness: Sets the thickness of the video field scan lines added to the image.
Scan Line Distance: Sets the distance between each of the video field scan lines added
to the image.
Mix: Sets what percentage of the original image is blended with the filtered image.
HUD Controls
The HUD contains the following controls: Waviness, Roll, Static, Color Synch, Saturate,
Scan Line Brightness, Scan Line Thickness, and Scan Line Distance.
Circle Screen
This filter reduces an image to a high-contrast grayscale version of itself. It then screens
it using a pattern of concentric circles, simulating a sort of etched screening technique.
The image is represented by varying thicknesses in the circular pattern.
This filter causes rasterization in 3D groups.

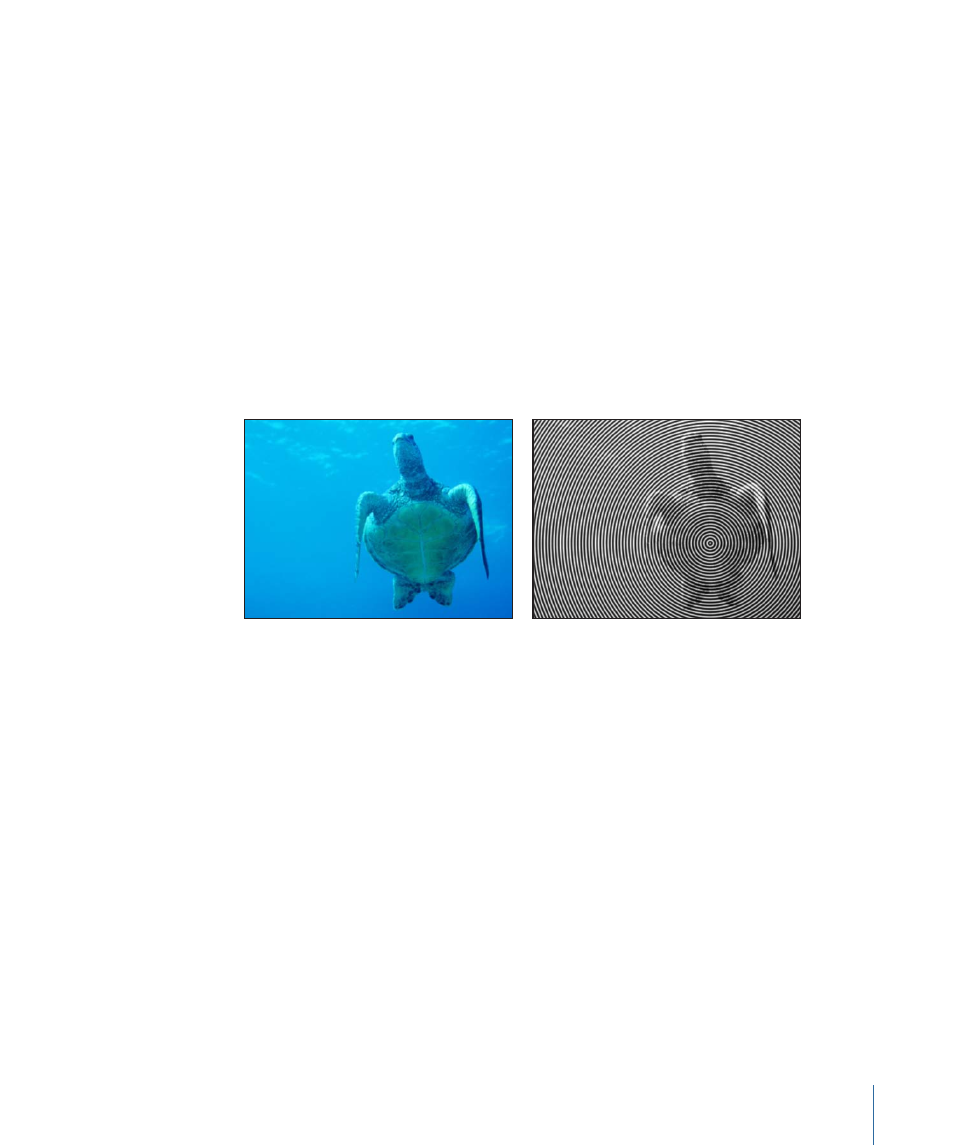

Original image Circle Screen applied
Parameters in the Inspector
Center: Sets the position of the center of the circle screen.
Scale: Sets the scale of the circle screen.
Contrast: Sets the contrast level.
Mix: Sets what percentage of the original image is blended with the filtered image.
HUD Controls
The HUD contains the following controls: Scale and Contrast.
Circles
This filter adds elliptical facets to an image, giving it a mosaic-like appearance. Each facet
takes a color sample from the center of itself. Unlike some of the other mosaic filters, the
edges of the facets do not join, so part of the untouched image is displayed between the
facets.
