Performance monitors
8
Top Port Link Failures monitor
The Top Port Link Failures monitor ( Figure 118 ) displays the top ports with link failures in a table.

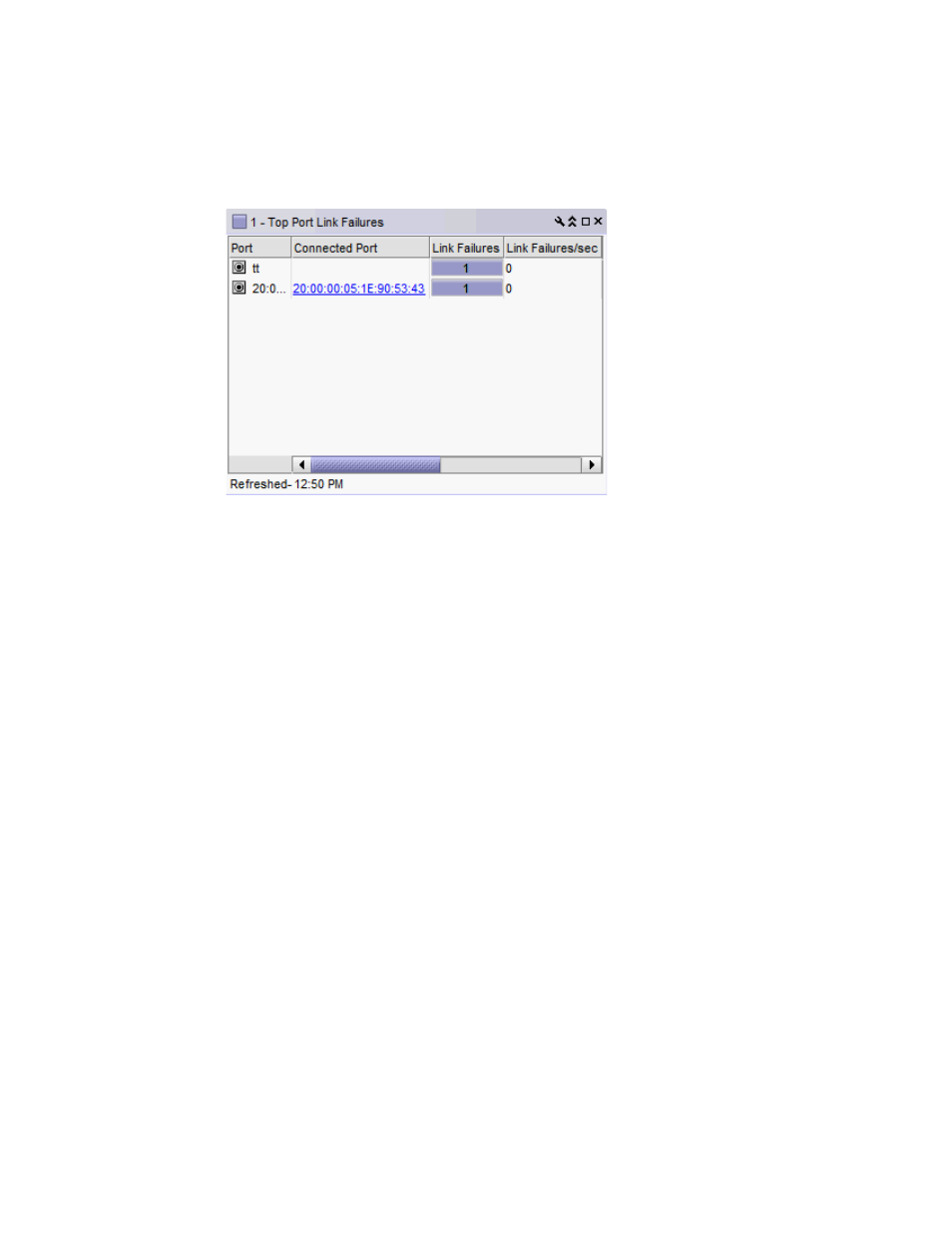

FIGURE 118 Top Port Link Failures monitor
The Top Port Link Failures monitor includes the following data:
• Severity icon/monitor title — The worst severity of the data based on the error count shown
next to the monitor title.
• Port — The port affected by this monitor.
• Connected_Port_Link (where Connected_Port_Link is Connected Port, Initiator, or Target) —
Displays one of the following:
- Connected Port — The ISL or IFL port on the connected device. Click to launch the switch
port properties dialog box.
- Initiator — The initiator port on the connected device. Click to launch the device properties
dialog box.
- Target — The target port on the connected device. Click to launch the device properties
dialog box.
• RX Link Failures/sec — The number (error rate) receive link failure errors per second for the
duration specified in the monitor.
• RX Link Failures — The number (error count) of receive link failure errors.
• TX Link Failures/sec — The number (error rate) of transmit link failure errors for the duration
specified in the monitor.
• TX Link Failures — The number (error count) of transmit link failure errors.
• Product — The product affected by this monitor.
• Type — The type of port (for example, U-Port).
• Identifier — The port identifier.
• Port Number — The port number.
• State — The port state (for example, Enabled).
