MAPS actions
50
Configuring a MAPS policy
1. Right-click a device in the Product List or Connectivity Map and select Fabric Vision > MAPS >
Configure.
The MAPS Configuration dialog box displays.
2. Click Add.
The Add Policy dialog box displays ( Figure 773 ).

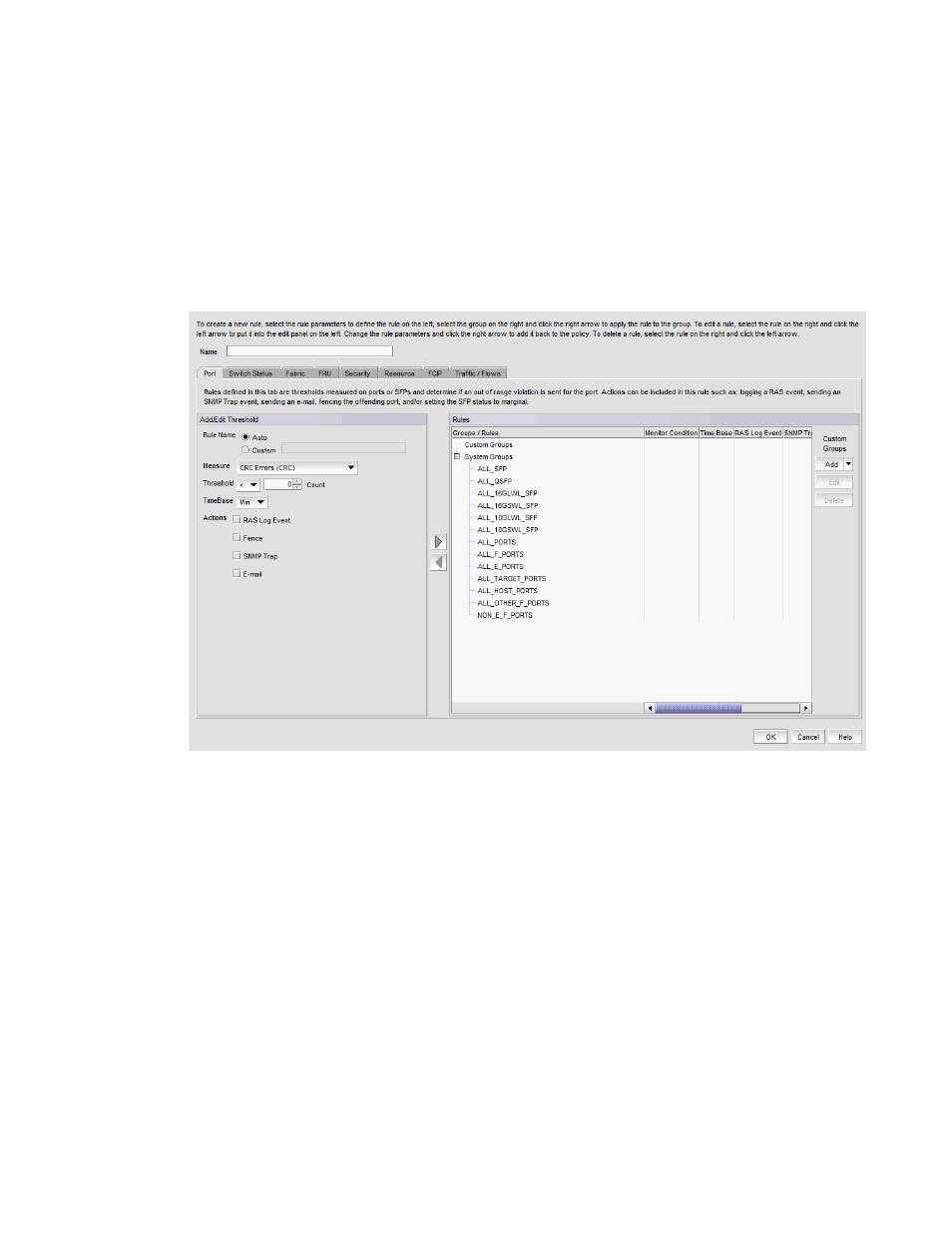

FIGURE 773 Add Policy dialog box
3. Enter a name for the policy in the Name field.
The policy name can be up to 32 characters and can only contain of alphanumeric and
underscore characters.
4. Select one of the following category tabs to configure the policy measures.
For a complete list of categories and the associated measures and actions, refer to “MAPS
categories, measures, and actions” on page 1792. Options include:
• Port tab — Rules defined on this tab measure thresholds on ports or SFPs to determine if
an out of range violation is sent for the port.
• Switch Status tab — Rules defined on this tab measure thresholds at the switch or chassis
level to determine the switch operational status.
• Fabric tab — Rules defined on this tab measure thresholds at the switch level to detect out
of range fabric-wide changes.
• FRU tab — Rules defined on this tab measure thresholds on fans, power supplies, SFPs,
blades, or WWN cards to detect out of range FRU changes.
