1086 Brocade Network Advisor SAN + IP User Manual
53-1002949-01
Zoning administration
26
To compare two zone databases, complete the following steps.
1. Select Configure > Zoning > Fabric.
The Zoning dialog box displays.
2. Select Compare from the Zone DB Operation list.
The Compare/Merge Zone DBs dialog box displays, as shown in Figure 461 .

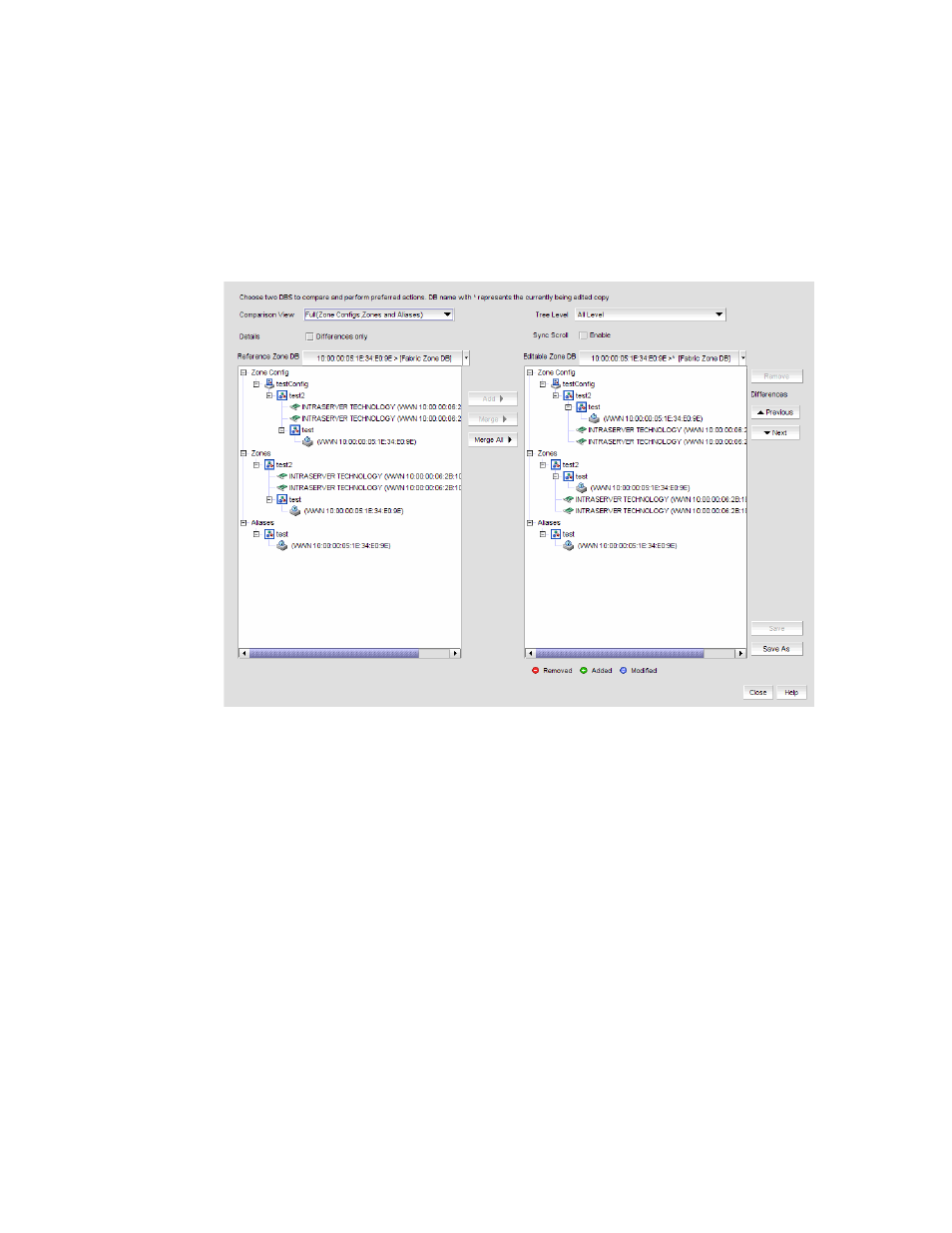

FIGURE 461 Compare/Merge Zone DBs dialog box
3. Select a database from the Reference Zone DB list.
4. Select a database from the Editable Zone DB list.
The Reference Zone DB and Editable Zone DB areas display all available element types (zone
configurations, zones, and aliases) for the two selected zone databases. In the Editable Zone
DB area, each element type and element display with an icon indicator (
Table 114 ) to show the
differences between the two databases.
5. Set the display for the database areas by selecting one of the following from the Comparison
View list:
• Storage-to-Host Connectivity — Displays only storage and host devices.
• Host-to-Storage Connectivity — Displays only host and storage devices.
• Full (Zone Configurations, Zones, and Aliases) — Displays all zone configurations, zones,
and aliases.
