Status widgets
8
IP Inventory widget
The IP Inventory widget ( Figure 105 ) displays the IP products inventory as stacked bar graphs.
For a VCS fabric, each VCS fabric is counted as an individual product.

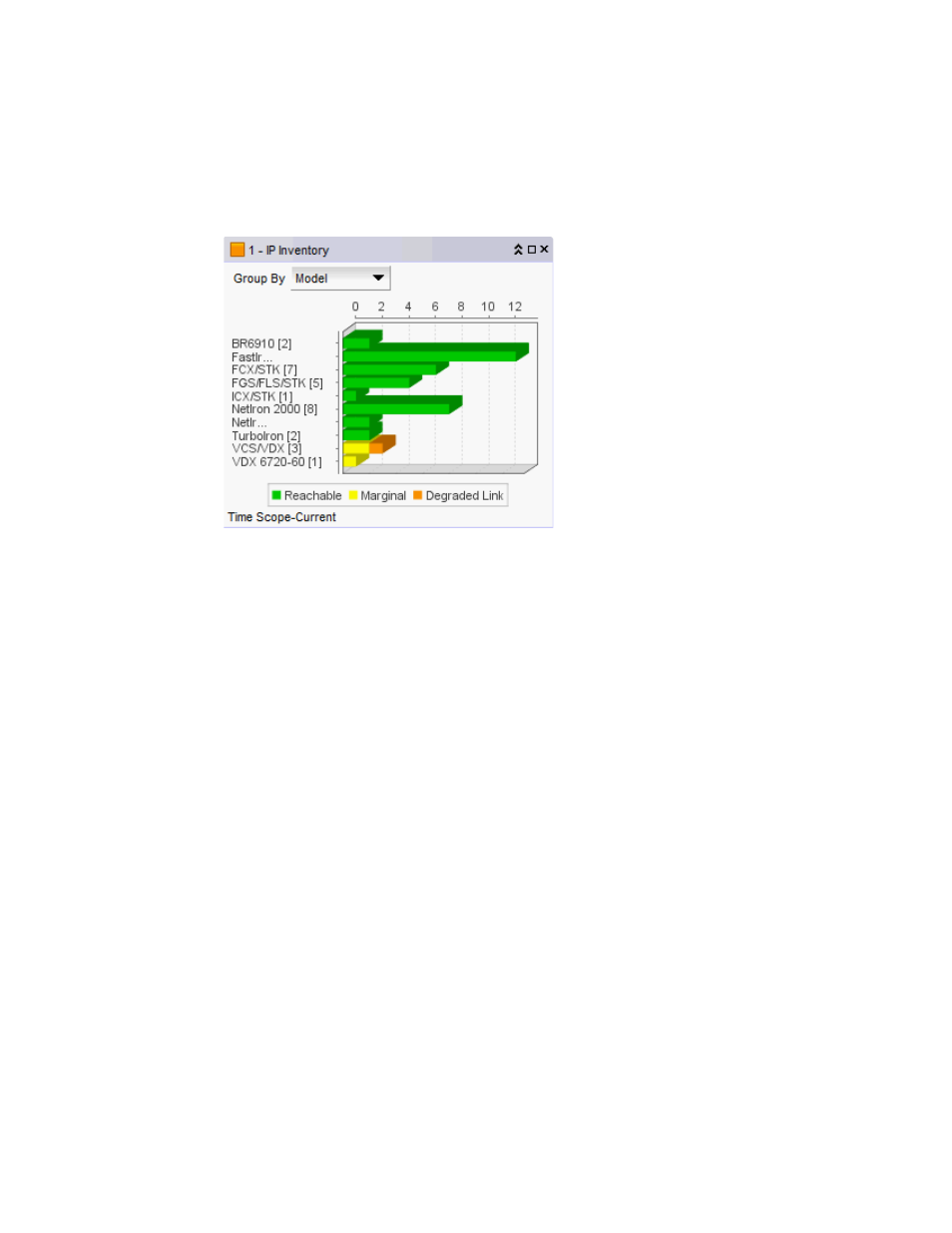

FIGURE 105 IP Inventory widget
The IP Inventory widget includes the following data:
• Severity icon/product count/widget title — The color of the worst severity followed by the IP
product count with that severity displays before the widget title.
• Group By list — Use to customize this widget to display a specific group of products. Options
include: Firmware, Model, Product Type, Location, and Contact.
• Bar chart — Displays each group as a separate bar on the graph. Displays the current state of
all products discovered for a group in various colors on each bar. Displays the color legend
below the x-axis. Tooltips showing the number of devices in that state are shown when you
pause on the bar.
• Color legend — Displays the color legend below the bar chart.
- Green — Reachable: IP product is online and accessible by IP (ICMP/TCP) and SNMP.
- Orange — Degraded Link: IP product is accessible by IP (ICMP/TCP); however, it is not
accessible by SNMP.
- Maroon — Not Reachable: IP product is not online and not accessible by IP (ICMP/TCP).
• Time Scope — The time scope.
