Brocade Network Advisor SAN + IP User Manual v12.1.0 - Manual (Page 1384)

Brocade Network Advisor SAN + IP User Manual 1335
53-1002949-01
LSP
37
8. Click Advanced Settings to establish traffic engineering parameters.
The RSVP LSP Advanced Settings dialog box has three tabs: Global, Paths, and Fast Reroute.
The default view is the Global tab (
Figure 575 ).

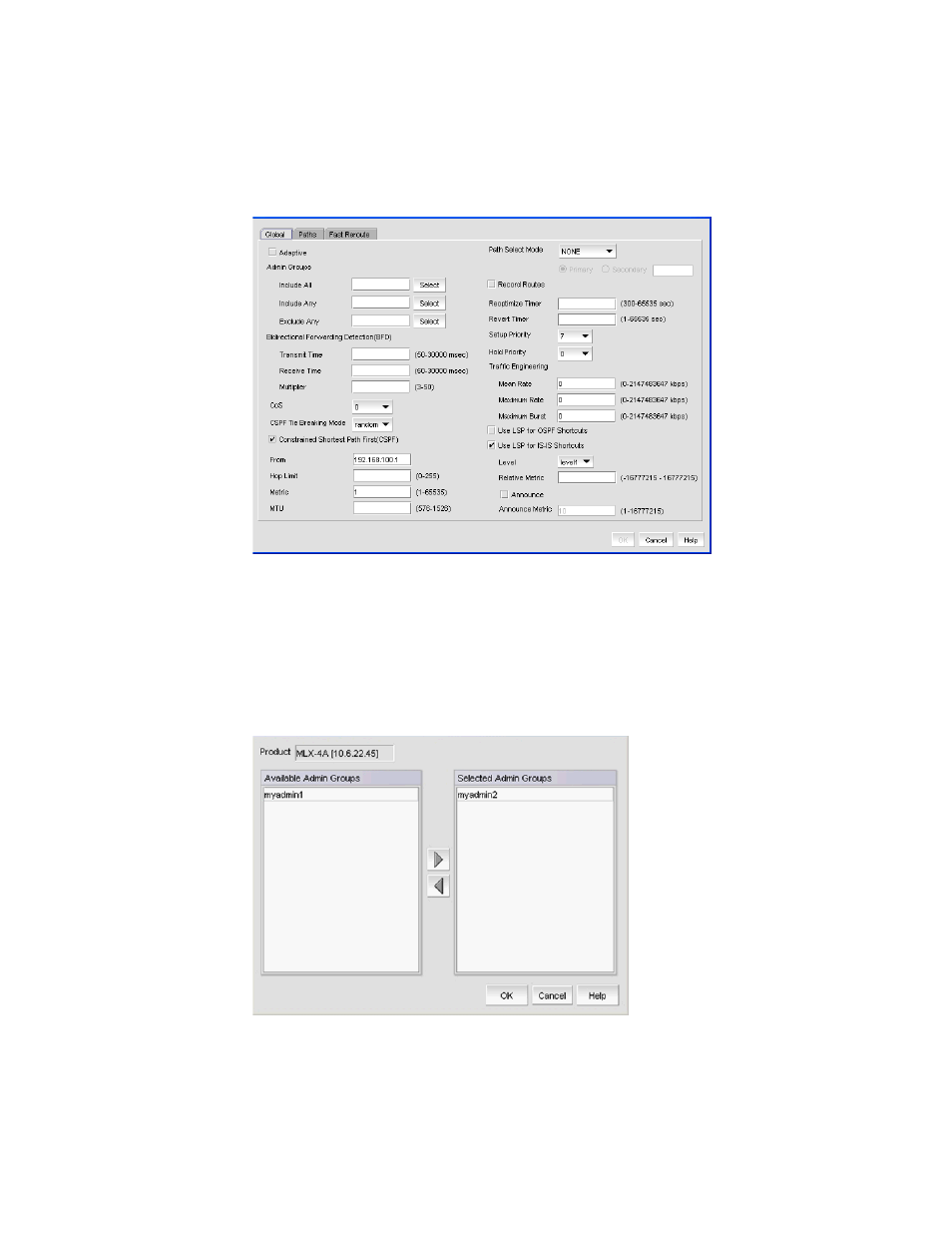

FIGURE 575 RSVP LSP Advanced Settings Global tab
From the Global tab you can set the following:
- Adaptive checkbox - Select the Adaptive checkbox to allow you to change parameters while
an LSP is in enabled state.
- Under Admin Groups settings use the Select buttons to use admin groups to manage CSPF
path selection by including or excluding network segments identified as admin groups. The
Admin Groups Selector dialog box displays (
Figure 576 ).
FIGURE 576 Admin Groups Selector dialog box
