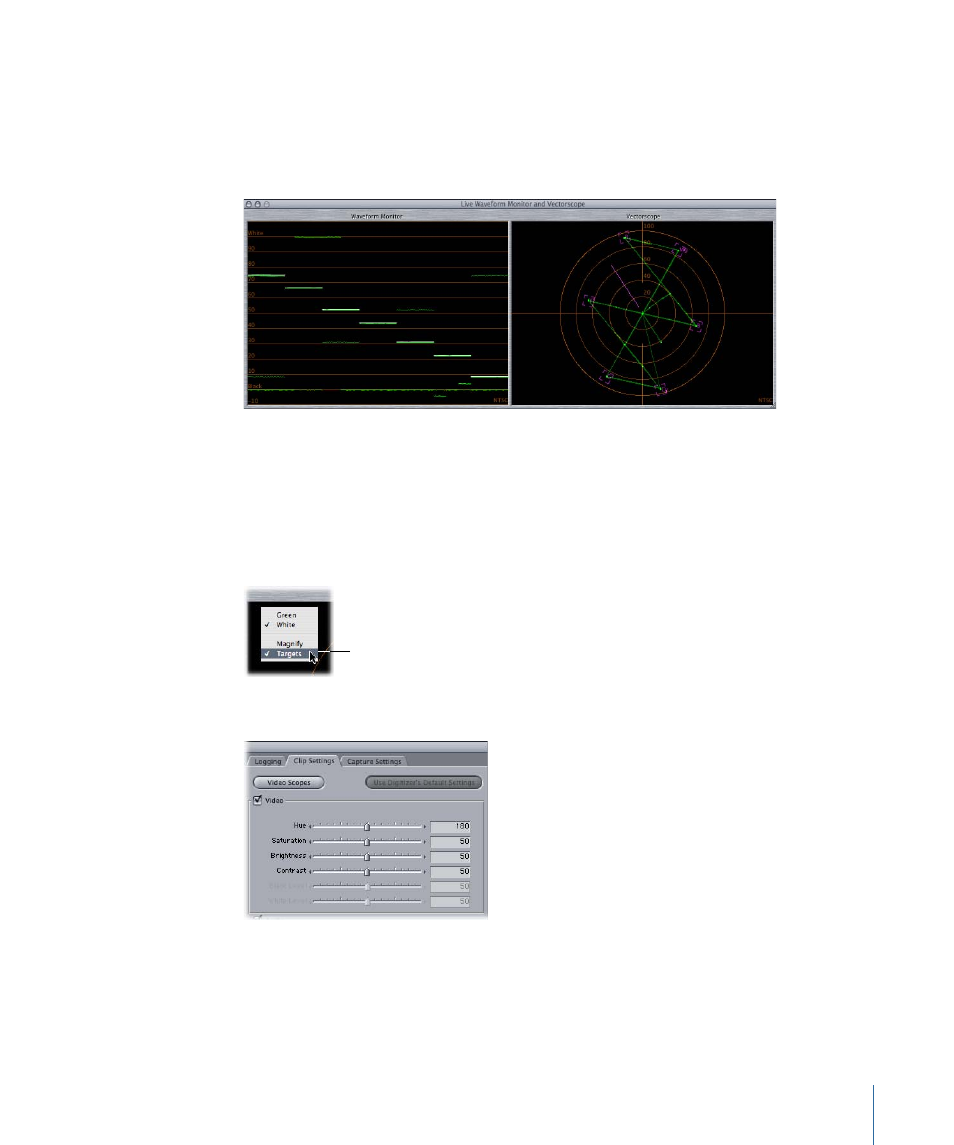

The Waveform Monitor and Vectorscope appear below the Log and Capture window. On
the left is the Waveform Monitor, which displays the brightness levels of the color bars
within the video frame as a graph. Each “step” of the graph corresponds to one of the
color bars. The goal is to adjust the brightness and contrast so that the levels of the bars
match their ideal targets, shown in purple.
Waveform Monitor Vectorscope
Note: Don’t worry if the graph appears to be “noisy”; this is normal for analog video
played back from tape.
4 To display the ideal targets for color bars, Control-click in the Waveform Monitor or the
Vectorscope and choose Targets from the shortcut menu.
Choose Targets from the
shortcut menu.
5 Adjust video brightness and contrast using the Waveform Monitor for reference.
1329 Chapter 78 Measuring and Setting Video Levels
