1 start signal, 2 slave address transmission, 3 stop signal – Freescale Semiconductor MCF5480 User Manual

Page 863: 4 data transfer, Start signal -9, Slave address transmission -9, Stop signal -9, Data transfer -9

Text mode
Original mode

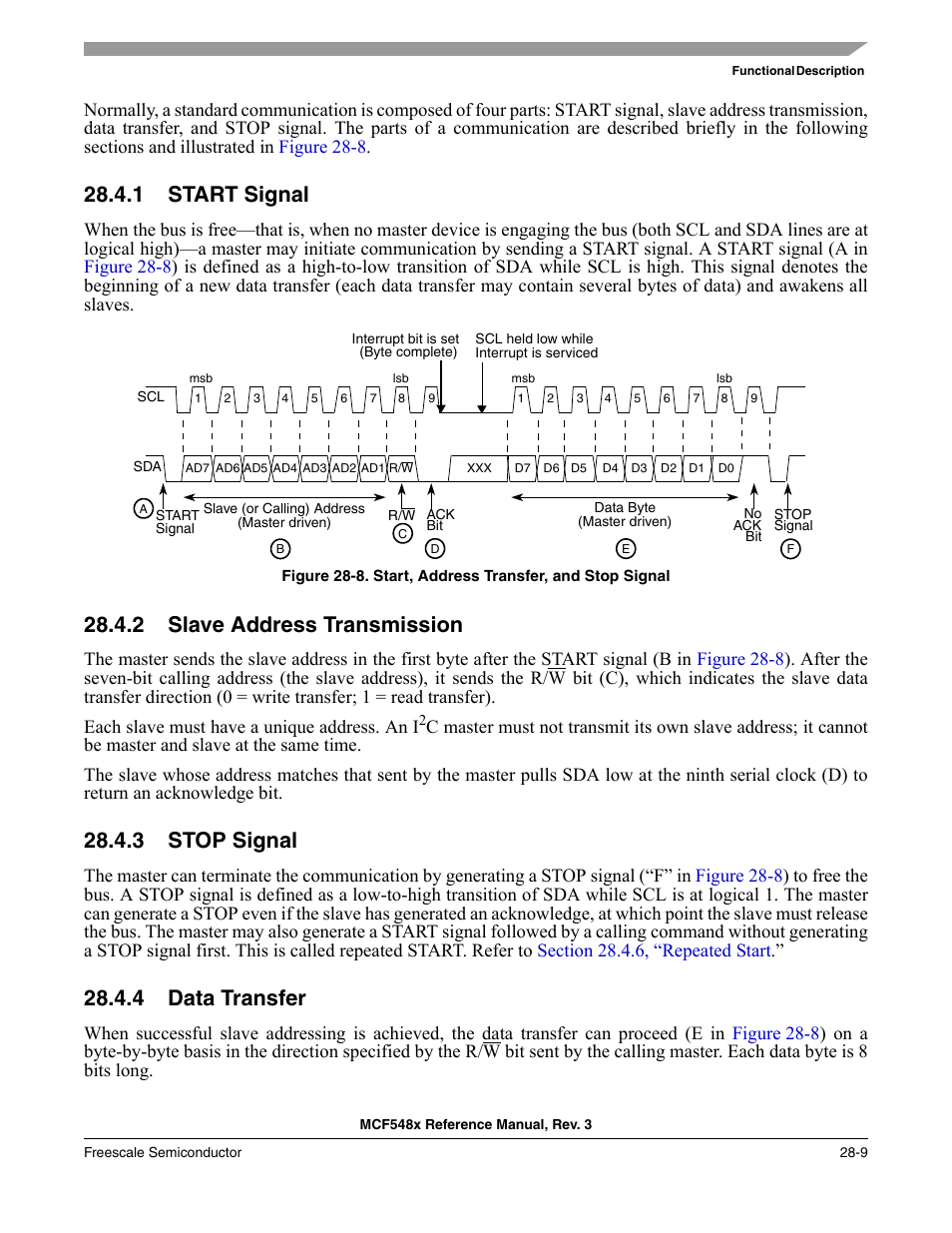

1 start signal, 2 slave address transmission, 3 stop signal | 4 data transfer, Start signal -9, Slave address transmission -9, Stop signal -9, Data transfer -9 | Freescale Semiconductor MCF5480 User Manual | Page 863 / 1032
