4 sdram row address strobe (ras), 5 sdram column address strobe (cas), 6 sdram chip selects (sdcs[3:0]) – Freescale Semiconductor MCF5480 User Manual

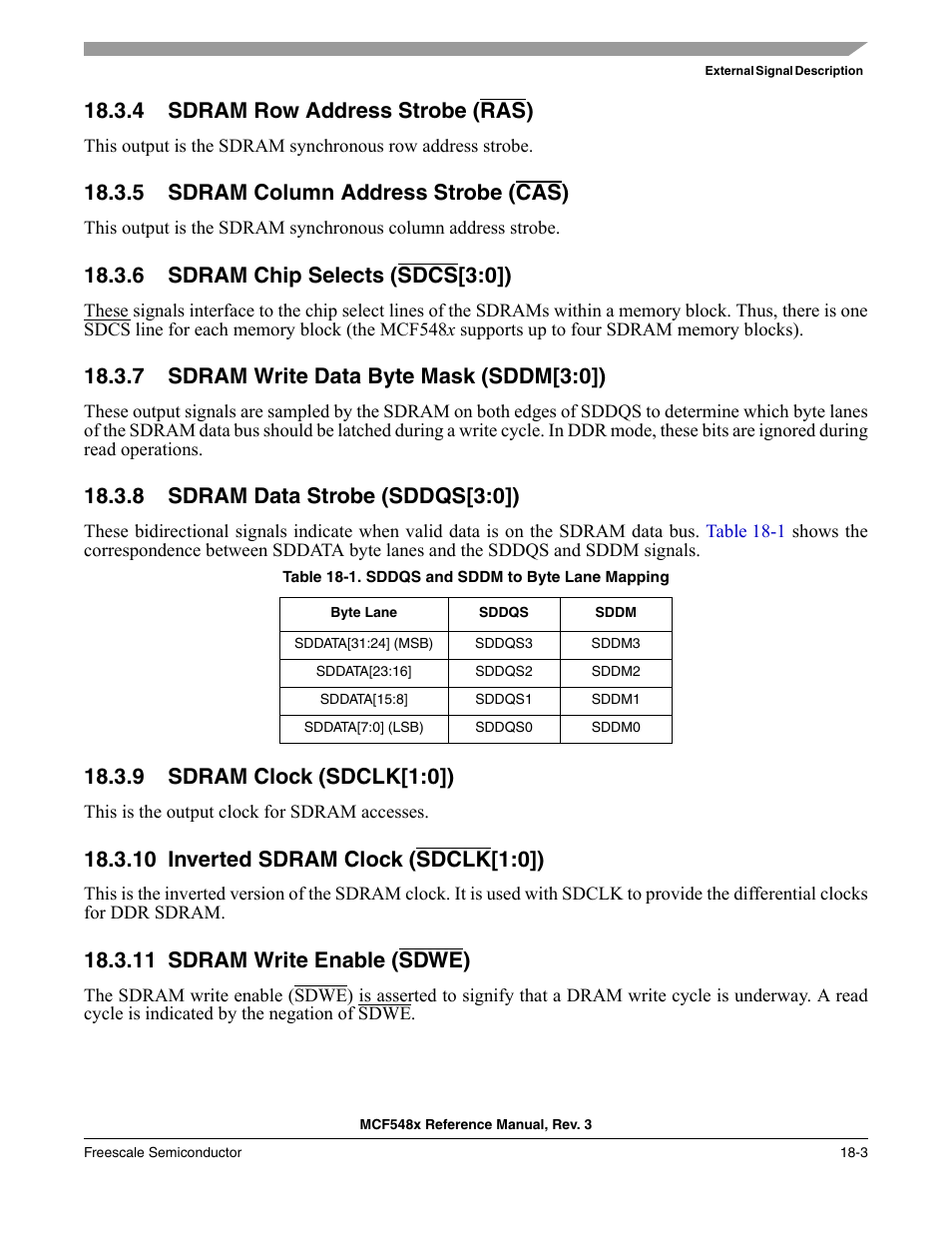

Page 451: 7 sdram write data byte mask (sddm[3:0]), 8 sdram data strobe (sddqs[3:0]), 9 sdram clock (sdclk[1:0]), 10 inverted sdram clock (sdclk[1:0]), 11 sdram write enable (sdwe), Sdram row address strobe (ras, Sdram column address strobe (cas
![4 sdram row address strobe (ras), 5 sdram column address strobe (cas), 6 sdram chip selects (sdcs[3:0]) | 7 sdram write data byte mask (sddm[3:0]), 8 sdram data strobe (sddqs[3:0]), 9 sdram clock (sdclk[1:0]), 10 inverted sdram clock (sdclk[1:0]), 11 sdram write enable (sdwe), Sdram row address strobe (ras, Sdram column address strobe (cas | Freescale Semiconductor MCF5480 User Manual | Page 451 / 1032](/screens/111671/451.png)
4 sdram row address strobe (ras), 5 sdram column address strobe (cas), 6 sdram chip selects (sdcs[3:0]) | 7 sdram write data byte mask (sddm[3:0]), 8 sdram data strobe (sddqs[3:0]), 9 sdram clock (sdclk[1:0]), 10 inverted sdram clock (sdclk[1:0]), 11 sdram write enable (sdwe), Sdram row address strobe (ras, Sdram column address strobe (cas | Freescale Semiconductor MCF5480 User Manual | Page 451 / 1032
