18 Working with the FB Editor
18.3 Using the FB Editor as "Viewer"
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _


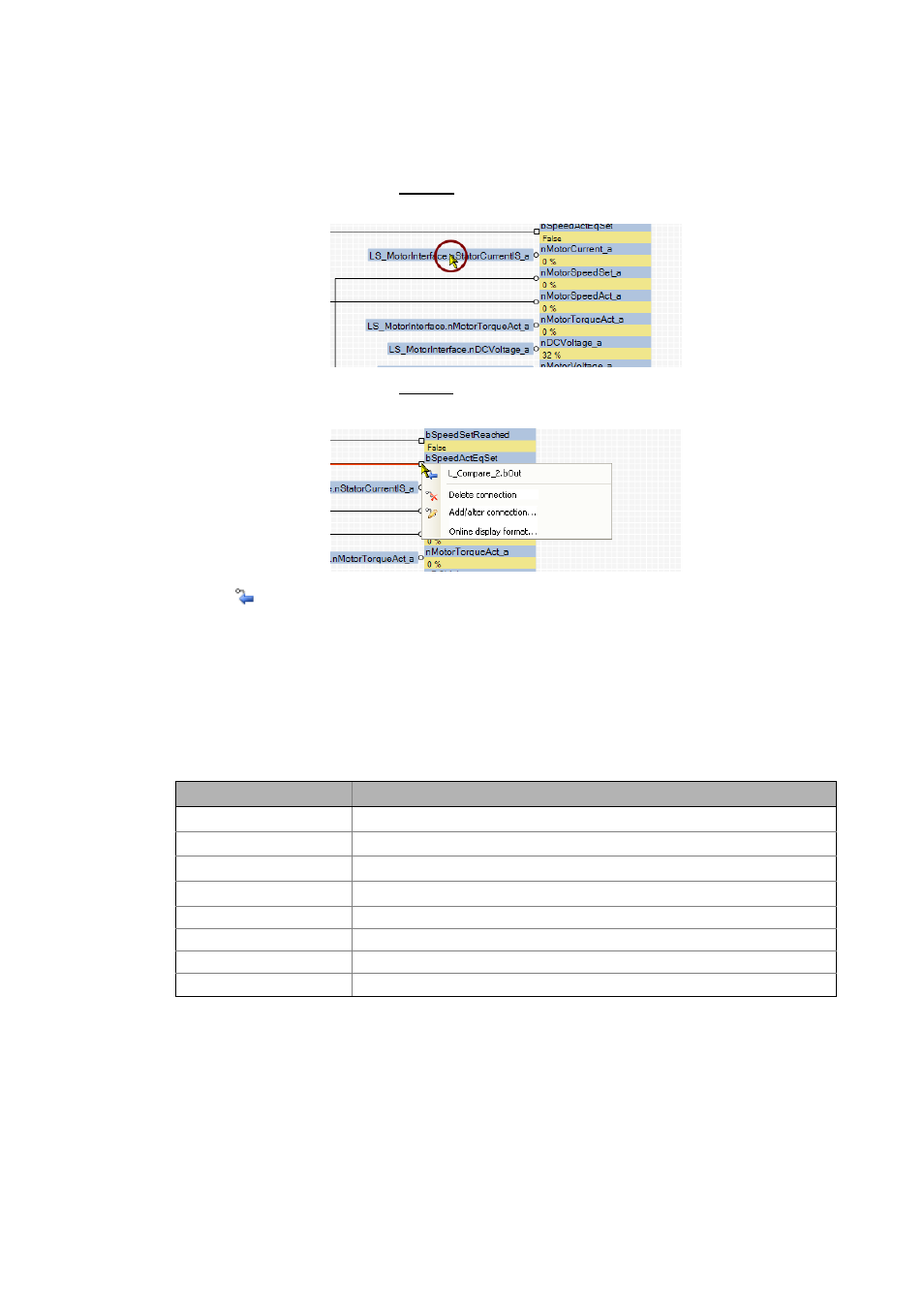

How to navigate from one input to another connected output:
If the input is connected to a flag:
• Double-click the flag:
If the input is connected to a line:
1. Open the context menu (right mouse button) of the port symbol at the output:
2. Select output in the context menu.
• Since an output can only be connected to an input, the context menu contains only an
output.
The output is displayed in the centre of the drawing area.
18.3.2 Keyboard commands for navigation
Keyboard command Function
 > Scroll up
 > Scroll down
+  > Scroll to the left
+  > Scroll to the right
Scroll to the left edge of the interconnection
Scroll to the right edge of the interconnection
+ Scroll to the left upper corner of the interconnection
+ Scroll to the right lower corner of the interconnection
