HUD Controls
The HUD contains the Level control.
Relief
Uses the color values of an object or height map to calculate height vertices, creating
the appearance of a 3D height map.
Note: As this filter simulates depth, an object with the Relief filter applied does not
interact with 3D aspects of Motion.
This filter causes rasterization in 3D groups.
Parameters in the Inspector
Front: Sets the position of the center point of the front of the height map, determining
the direction to which the height vertices are projected. Values are coordinates.
Front Size: Sets the size of the front object, as a proportion of its original size. Values
range from 0 to 2.
Back: Sets the position of the center point of the back of the height map, determining
the direction from which the height vertices are projected. Values are coordinates.
Back Size: Sets the size of the back object, as a proportion of its original size. Values
range from 0 to 2.
Fuzziness: Sets the amount of fuzziness applied to the height vertices. The higher the
Fuzziness, the softer the edges of the height vertices. Values range from 0 to 1.
Height Map: An image well that displays a thumbnail of the height map chosen. If
present, the height map is used to calculate the height vertices.

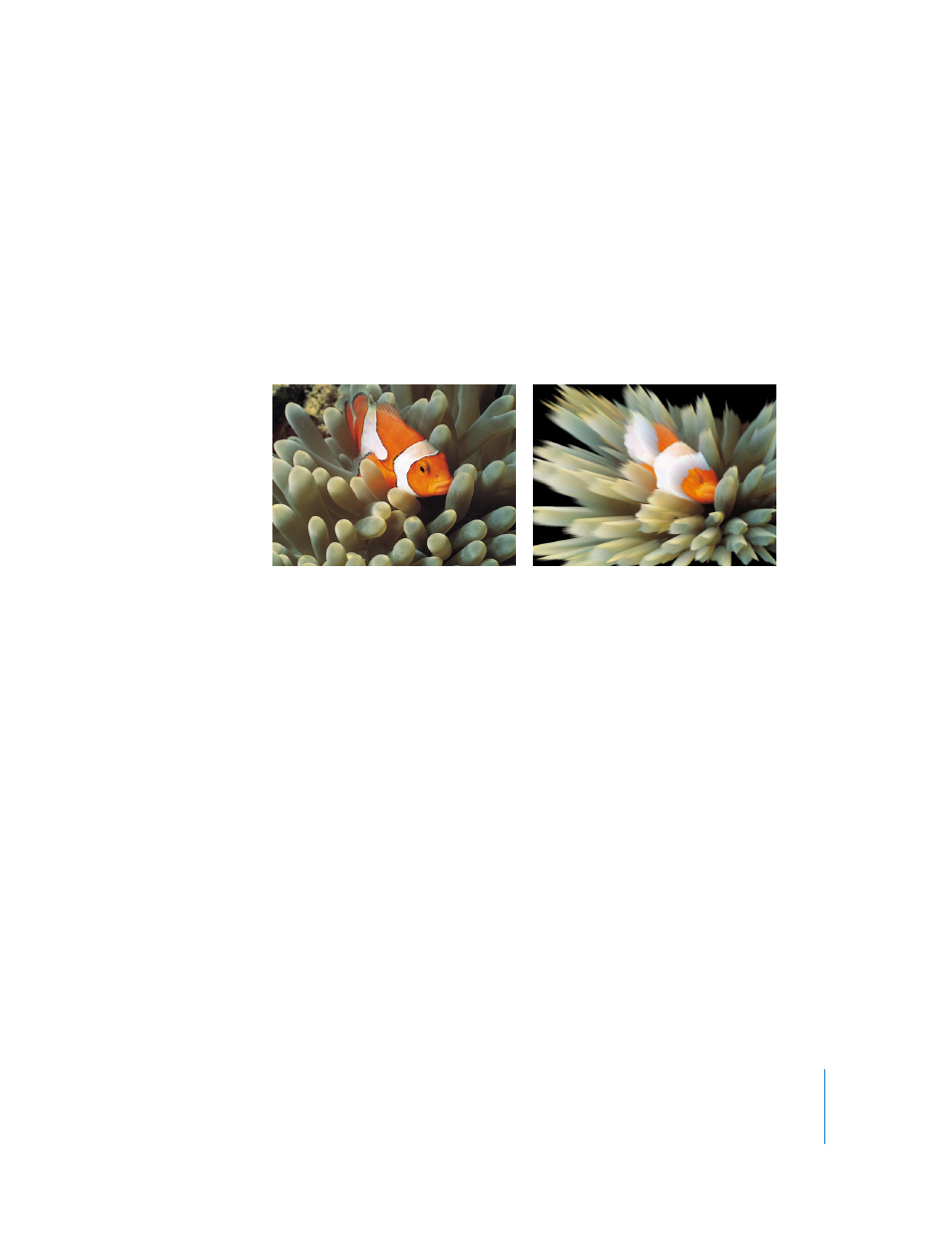

Original image Relief applied
