3.4.11.1 Insert options for copied elements

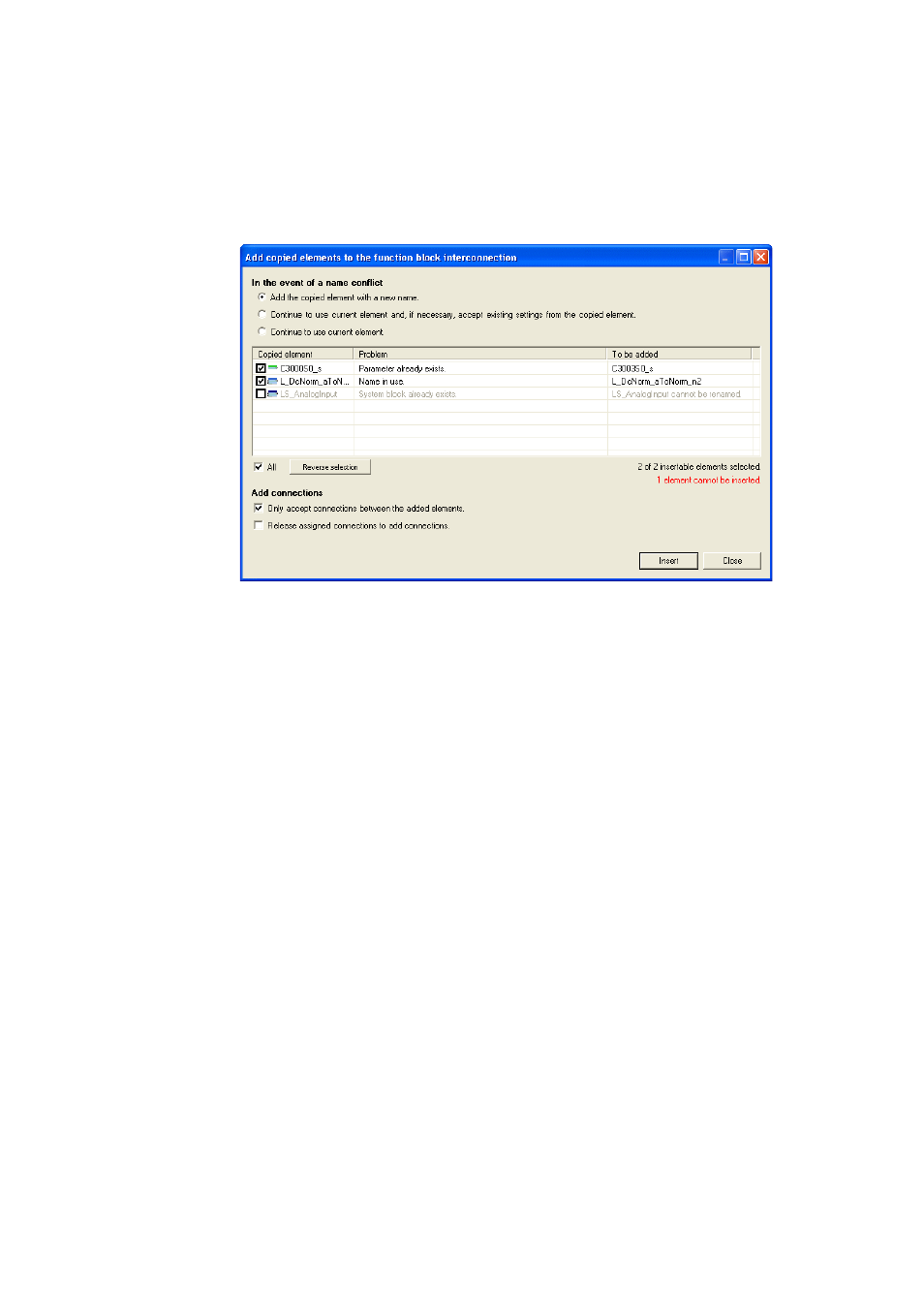

If interconnection elements have been copied to the clipboard, the »Engineer« displays a list of all
elements contained in the clipboard after the Insert command has been inserted in the Add copied
elements to the function block interconnection dialog box:
The list shows the elements which can be added to the target interconnection without any further
action, and the elements with problems and those which cannot be added.
• Each element only appears once in the list even if there are several problems.
• If there is at least one name conflict, there are three options of how to solve name conflicts. If
the option is changed, the list is updated accordingly.
• The first column "Copied element" serves to define which elements are to be inserted by set-
ting/resetting checkmarks.
• In the default setting, all elements to be inserted are always selected.
• When you deselect the All option, all elements in the list are deselected.
• The Reverse selection button serves to reverse the existing selection.
• The second column "Problem" shows the currently existing problems.
• The third column "To be added" contains changes for conflicts with already available elements
in the target interconnection to be able to accept the elements. The automatic suggestions de-
pend on the selected option how to solve name conflicts.
