3 Working with the FB editor
3.3 Using the FB-Editor as "Viewer"
48
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

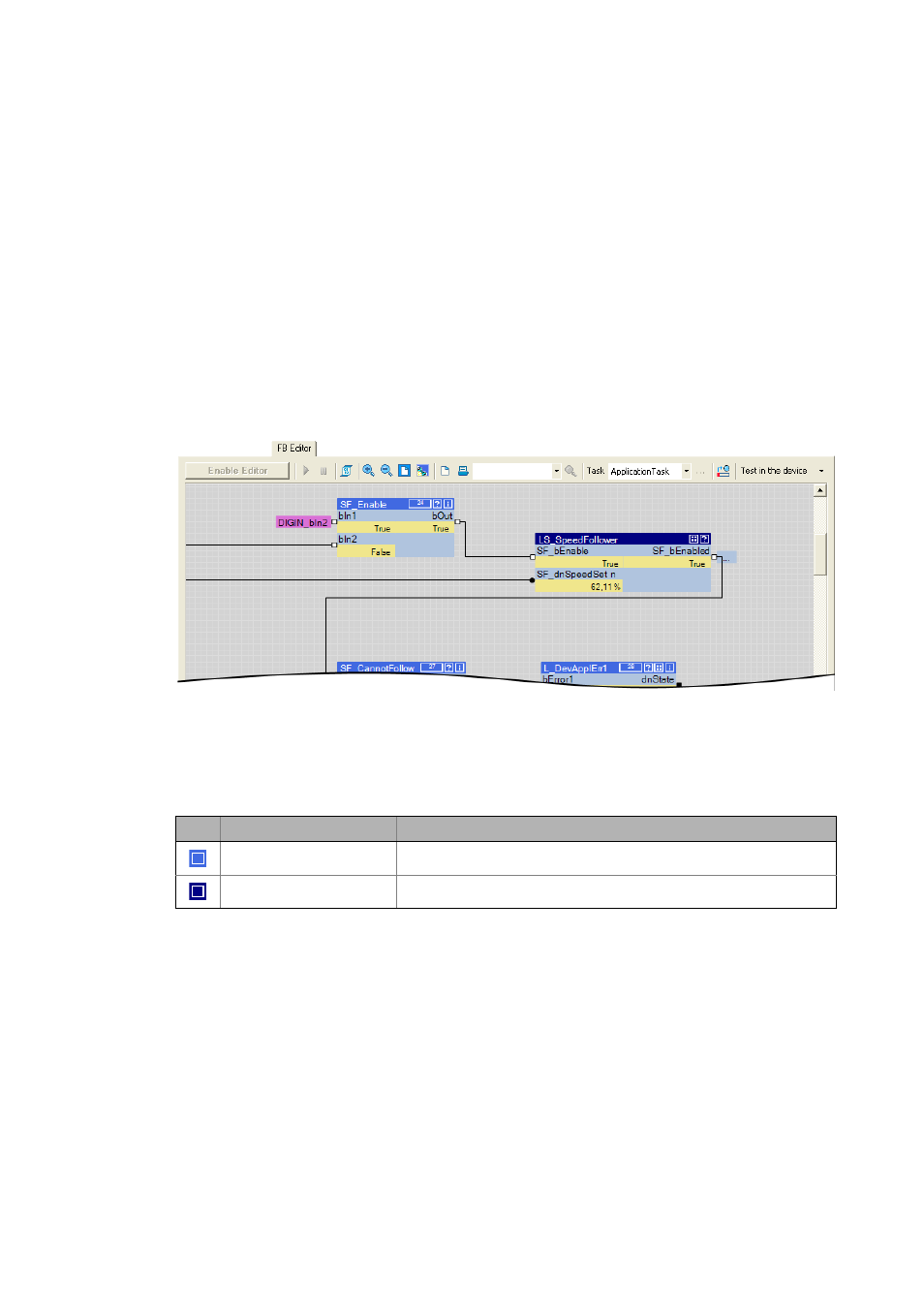

3.3 Using the FB-Editor as "Viewer"
If you have selected a technology application from the catalogue for the controller, the FB Editor is
first in the "Viewer" mode. The interconnection of the technology application is displayed but can-
not be modified.
You can use this "Viewer" mode to:
• make a diagnosis of the application (when an online connection has been established),
• get a better understanding for the operating mode of the application,
• use the interconnection as an alternative parameterisation access.
Diagnostics of the application
When an online connection to the controller has been established, the current values are displayed
at the inputs and outputs of the objects.
Getting a better understanding for the operating mode of the application
Make yourself familiar with the signal flow of the interconnection to get a better understanding of
the operating mode of the application or individual functional areas.
The following buttons serve to get more information:
Command Function
Help Show online help for the function block.
Help Show online help for the system block.
"
"
