5 Function blocks

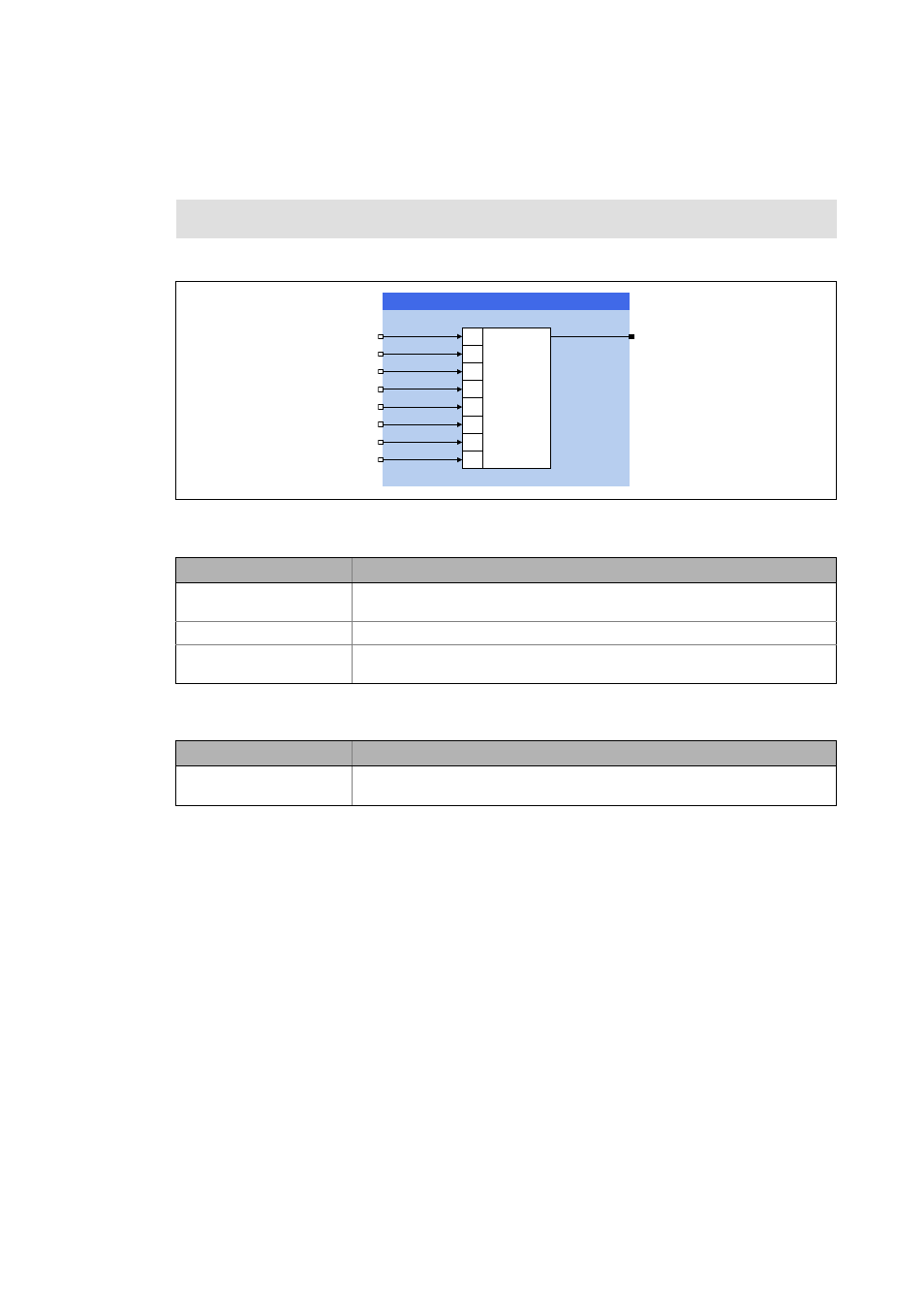

5.20 L_DcBitsToByte - bit multiplexer
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.20 L_DcBitsToByte - bit multiplexer
This FB converts 8 single bit values into a value of type "BYTE".
Inputs
Outputs
Function library: LenzeDataConversion
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
bBit0
BOOL
Input for bit value with valency 2 0
... ...
bBit7
BOOL
Input for bit valency 2 7
Identifier/data type Value/meaning
byOutput
BYTE
Value of type "byte" according to the transmitted bit values
/B'F%LWV7R%\WH
E%LW
E%LW
E%LW
E%LW
E%LW
E%LW
E%LW
E%LW
E\2XWSXW
%<7(
