5 Function blocks
5.199 L_TbSelectByte - selector (for "BYTE" data type)
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

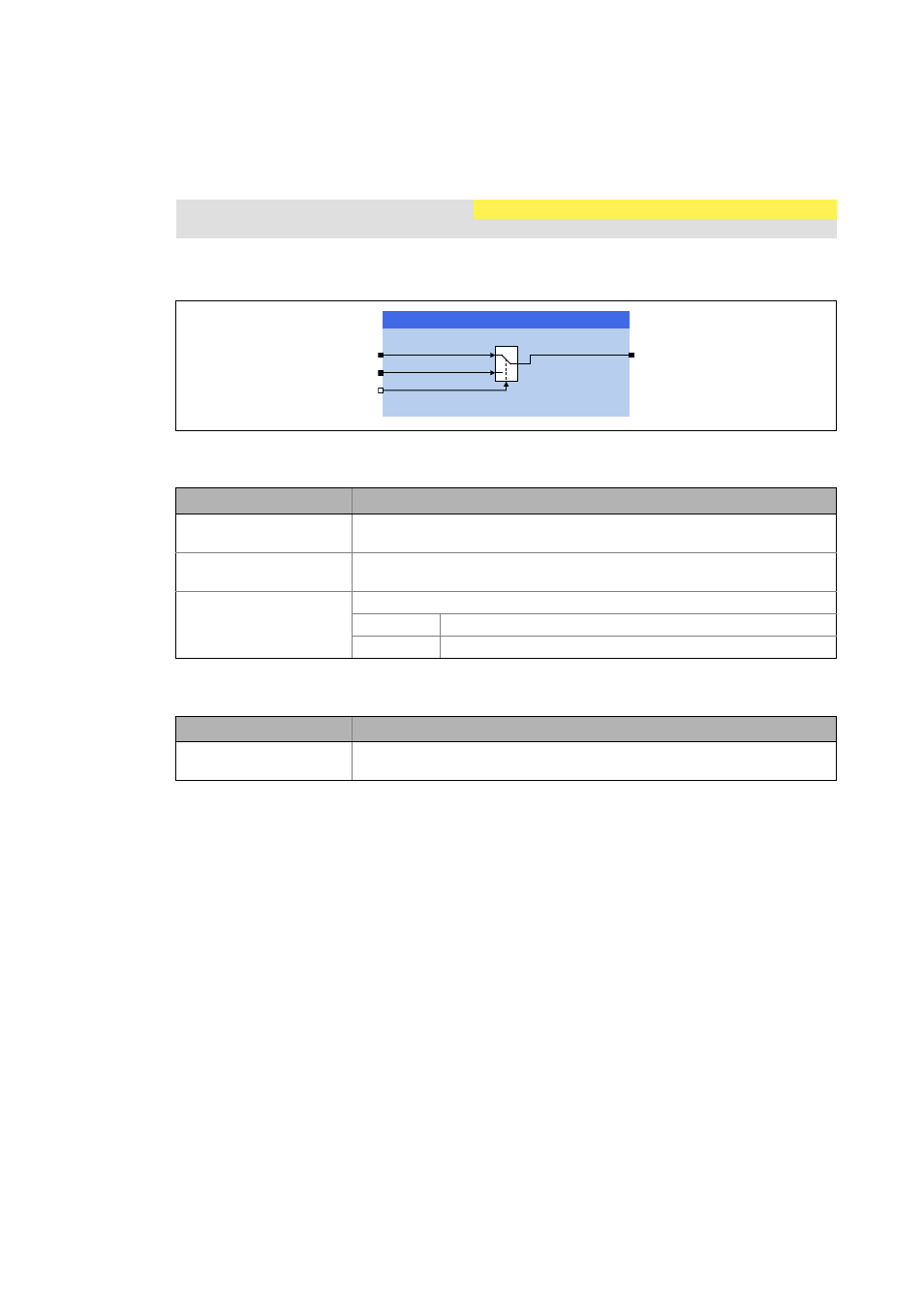

5.199 L_TbSelectByte - selector (for "BYTE" data type)
This function block switches between two signals of "BYTE" type. The switch-over is controlled via a
boolean input signal.
Inputs
Outputs
Function library: LenzeToolbox FB is available as of library V02.05.xx.xx!
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
byIn1
BYTE
Input signal 1
byIn2
BYTE
Input signal 2
bSelectIn2
BOOL
Selection of the input signal for the output to byOut
FALSE byIn1
TRUE byIn2
Identifier/data type Value/meaning
byOut
BYTE
Output signal
E\2XW
E\,Q
E6HOHFW,Q
E\,Q
/B7E6HOHFW%\WH
