3 Working with the FB editor
3.3 Using the FB-Editor as "Viewer"
50
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _


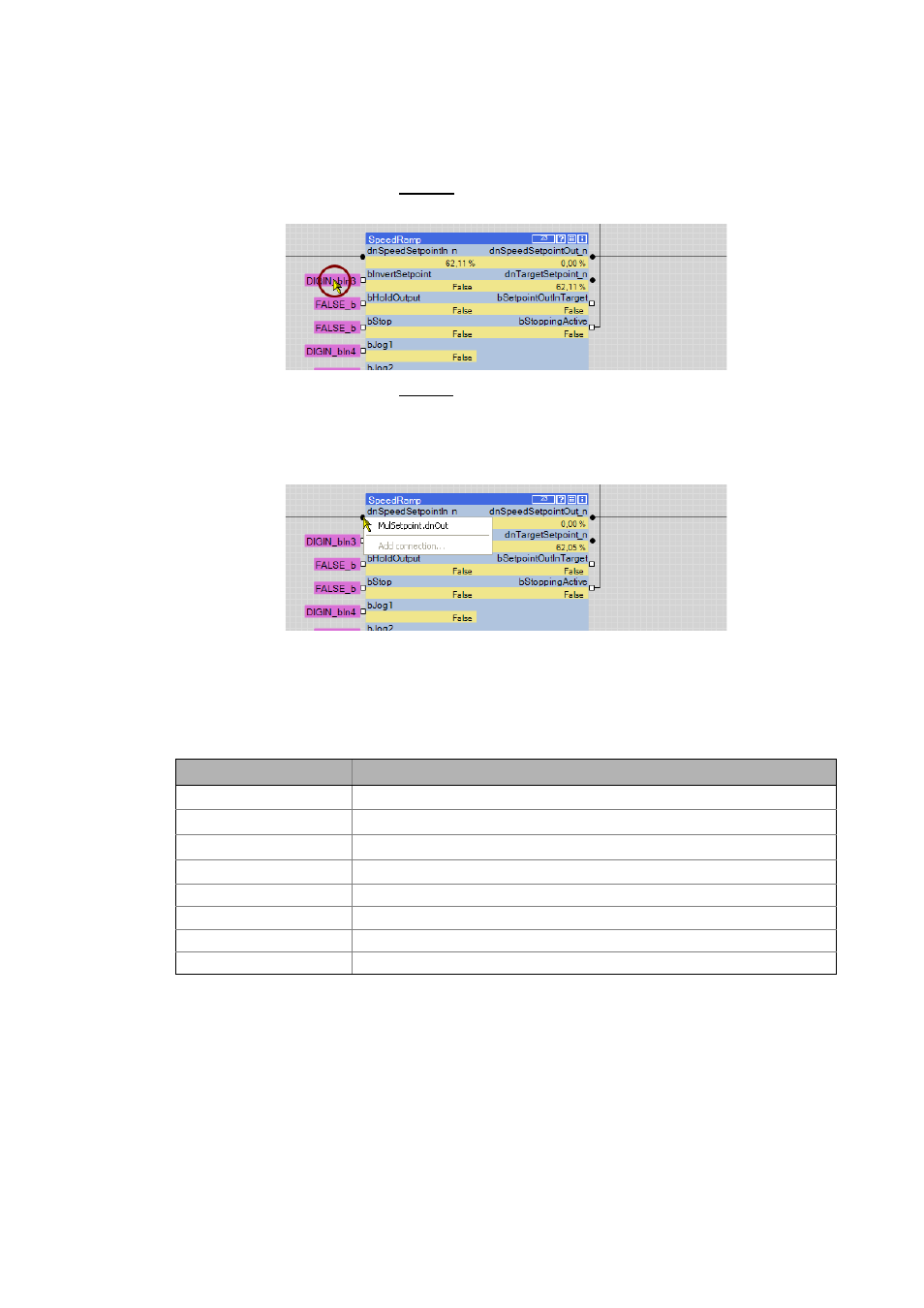

How to navigate from one input to another connected output:
If the input is connected to a flag:
• Double-click the flag:
If the input is connected to a line:
• Open the context menu (right mouse button) of the port symbol at the input and select
the output in the context menu.
• Since an output can only be connected to an input, the context menu contains only an
output:
The output is displayed in the centre of the drawing area.
3.3.2 Keyboard commands for navigation
Keyboard command Function
 > Scroll up
 > Scroll down
+  > Scroll to the left
+  > Scroll to the right
Scroll to the left edge of the interconnection
Scroll to the right edge of the interconnection
+ Scroll to the left upper corner of the interconnection
+ Scroll to the right lower corner of the interconnection
