3 Working with the FB editor
3.2 User interface
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _


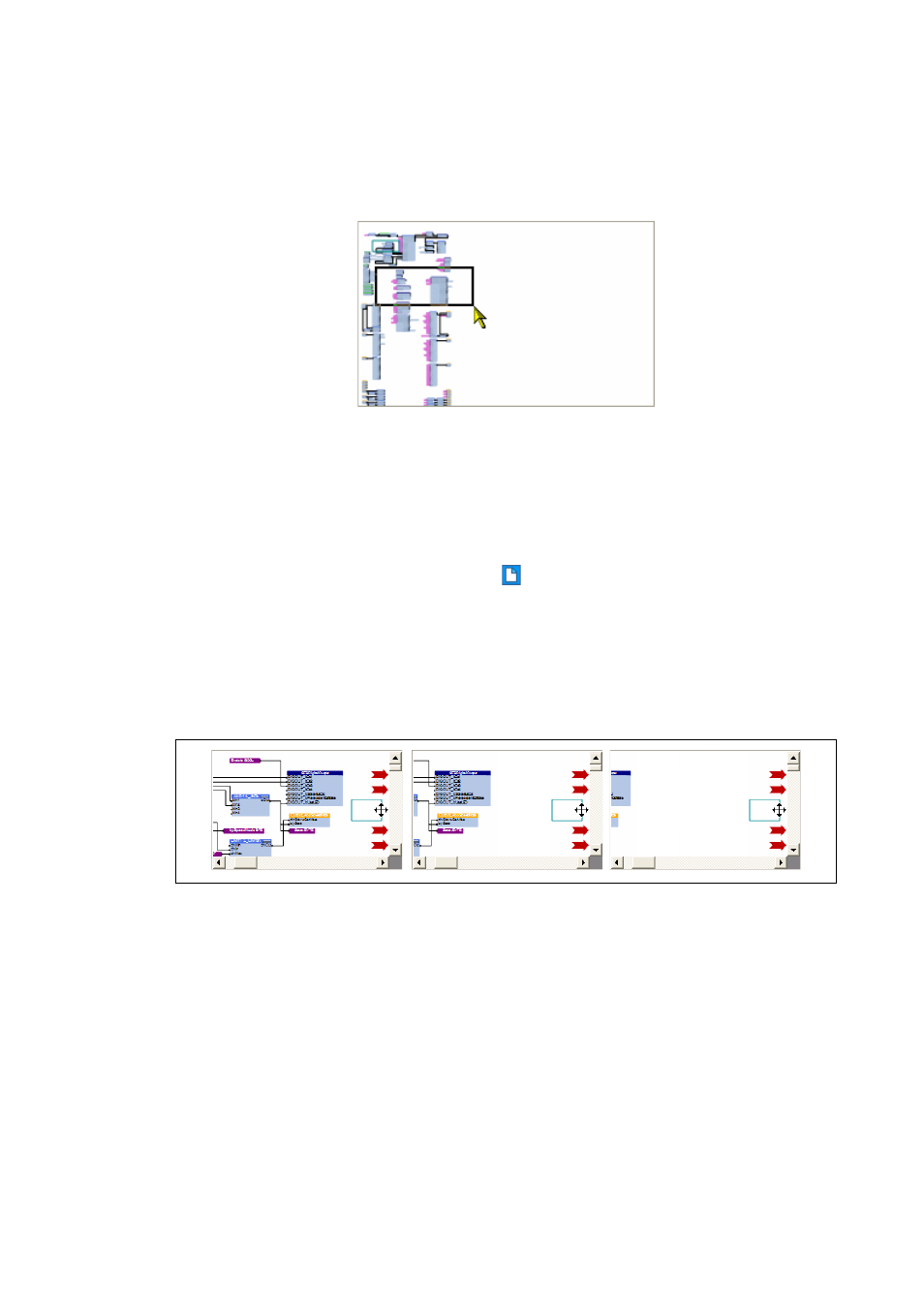

How to redefine the cutout to be presented:
In the overview window draw a frame around the area of the interconnection which is to
be presented in the drawing window by keeping the left mouse button pressed:
• The aspect ratio of the frame is automatically adapted to the aspect ratio of the drawing
area.
• According to the size of the frame that is drawn, also the presentation size of the objects
in the drawing area changes.

Tip!
Go to the FB Editor toolbar and click the icon to adapt the view size so that all objects
included in the interconnection are visible in the drawing area.
Automatic scrolling ("AutoScroll function")
If you reach a window limitation in the drawing area when shifting an object or in the overview win-
dow when shifting the green frame, and if you then shortly hold the mouse pointer in this position,
an automatic scrolling into the corresponding direction is carried out:
[3-1] Example: automatic scrolling to the right in the overview window
