Function blocks
5.164
L_TbCurveAny - Characteristic function
572
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Special cases
• Jumps/discontinuities can be displayed by parameterising two successive x values the same
way. A jump is only valid if a valid pair of variates exists after that, otherwise the extrapolation
is executed starting from the last valid pair of variates.

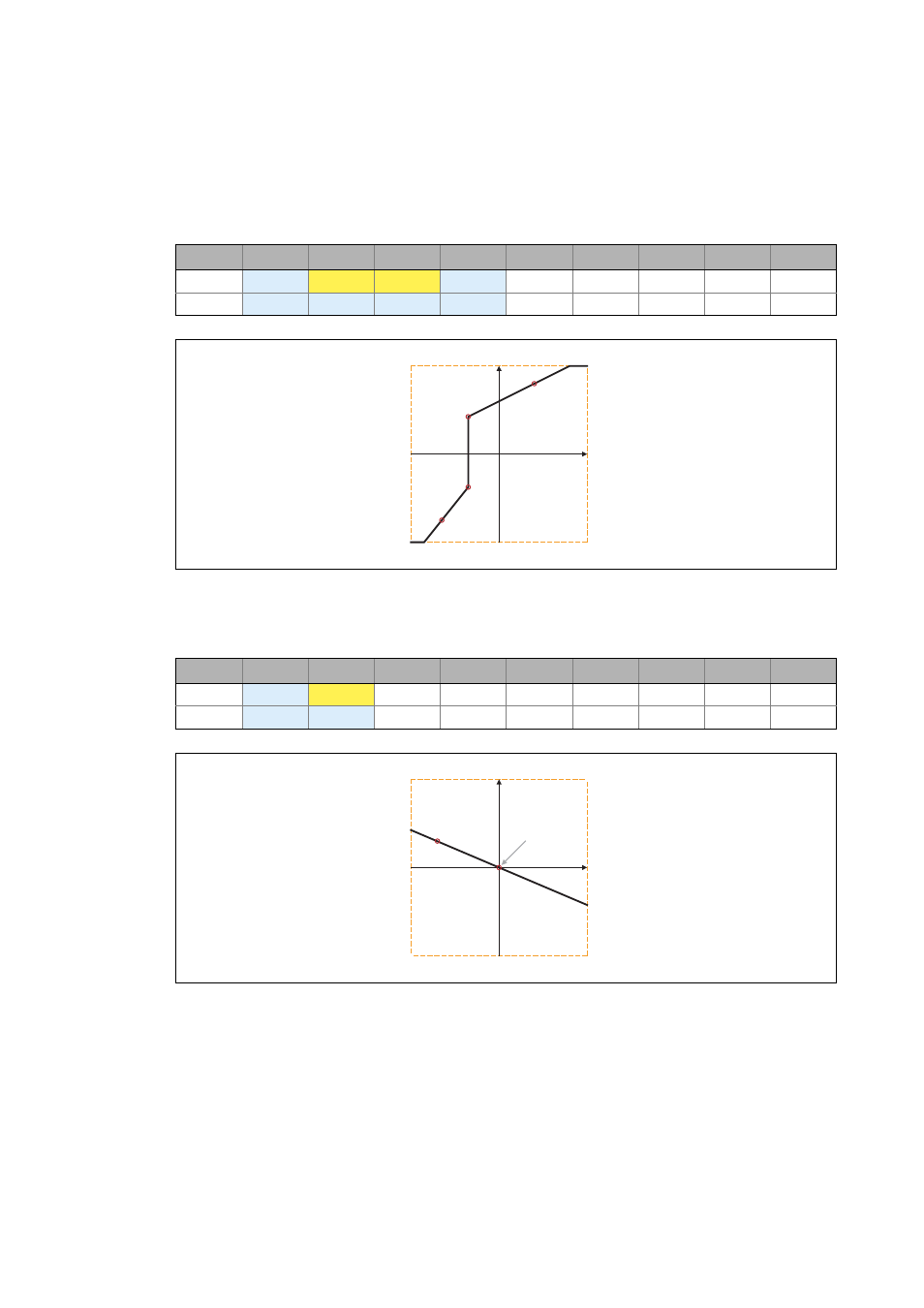

[5-131] Example: Characteristic in the characteristic mode 0 (entire range) with jump
• If only one point X1 is defined in the negative range, X2 exists with the Lenze setting "0" as valid
point (X2 > X1) and both points form a line:
[5-132] Example: Characteristic in characteristic mode 0 (entire range) with only one defined point and X1 < 0
1
2
3
4
5
6
...
126
127
x
-130 %
-70 %
-70 %
80 %
0
0
0
0
0
y(x)
-150 %
-75 %
85 %
160 %
0
0
0
0
0
dnOut_n
dnIn_n
x1, y1
x3, y3
x4, y4
-
/ -
2
2
31
31
2 -1 /
31
2 -1
31
x2, y2
1
2
3
4
5
6
...
126
127
x
-130 %
0
0
0
0
0
0
0
0
y(x)
40 %
0
0
0
0
0
0
0
0
dnOut_n
dnIn_n
x1, y1
x2, y2
-
/ -
2
2
31
31
2 -1 2 -1
31
31
/
