3 Working with the FB editor
3.4 Creating/reconfiguring the interconnection
58
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
3.4.2.3 Inserting a port block
All input/output ports defined for the application on the Ports tab can be inserted into the intercon-
nection in the form of port blocks in order to receive access to the associated element variables.

Tip!
You can change between the Ports and FB Editor tabs at any time to define new ports and
afterwards insert them into the interconnection.

How to insert a port block into the interconnection:
1. Click the icon in the FB editor toolbar.

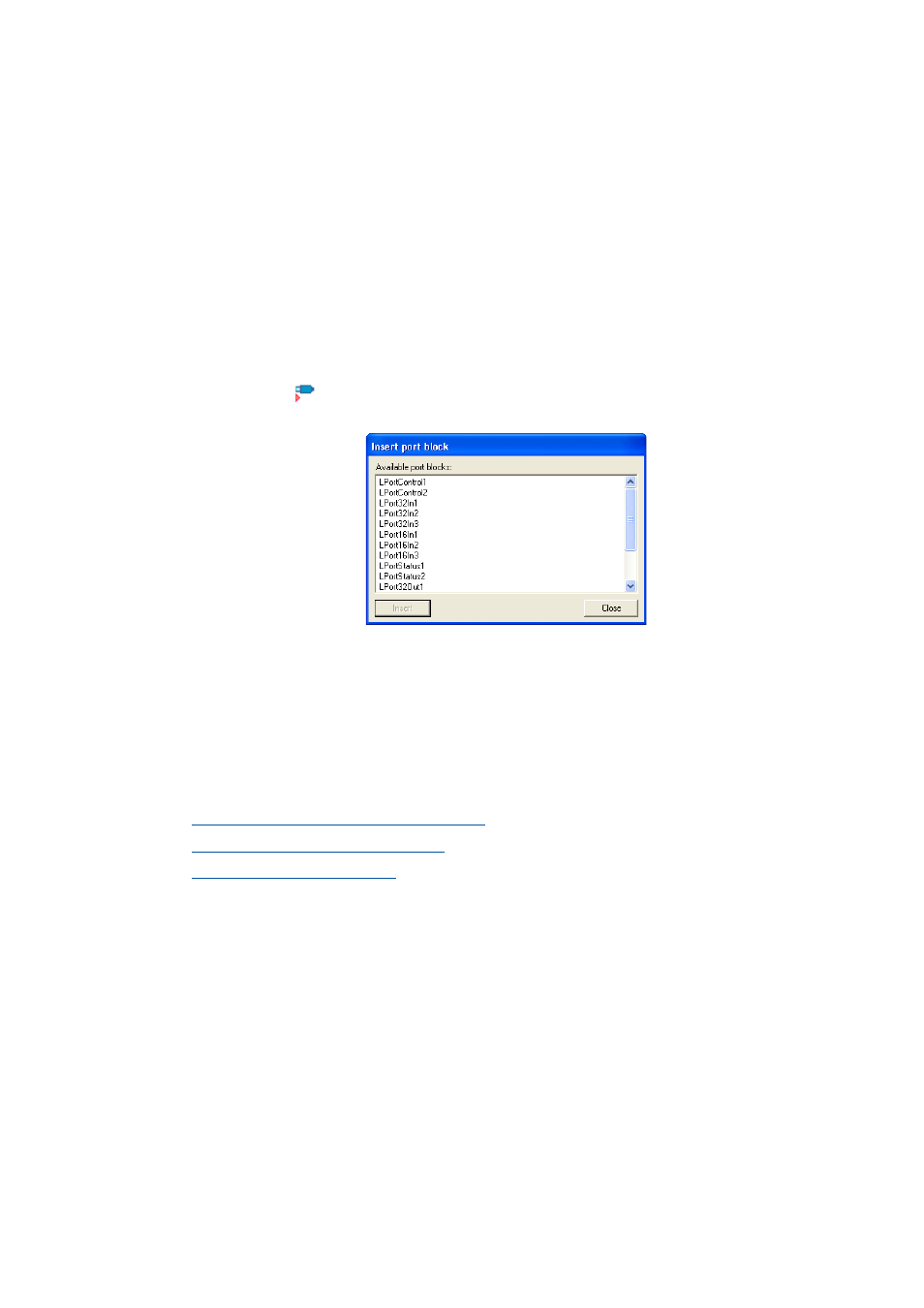

• The Insert port block dialog box appears:
2. Select the desired port in the Available port blocks list field.
• Ports which have already been inserted in the interconnection no longer are provided for
selection in the Available port blocks list field.
3. Press Insert button.
• The dialog box is closed and the port selected is inserted in the interconnection.
Related topics:
 Deleting objects that are no longer required ( 70)
 Arranging objects in the drawing area ( 73)
 Creating/deleting connections ( 74)
