5 Function blocks
5.198 L_TbSelect - selector (for "DINT" data type)
620
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

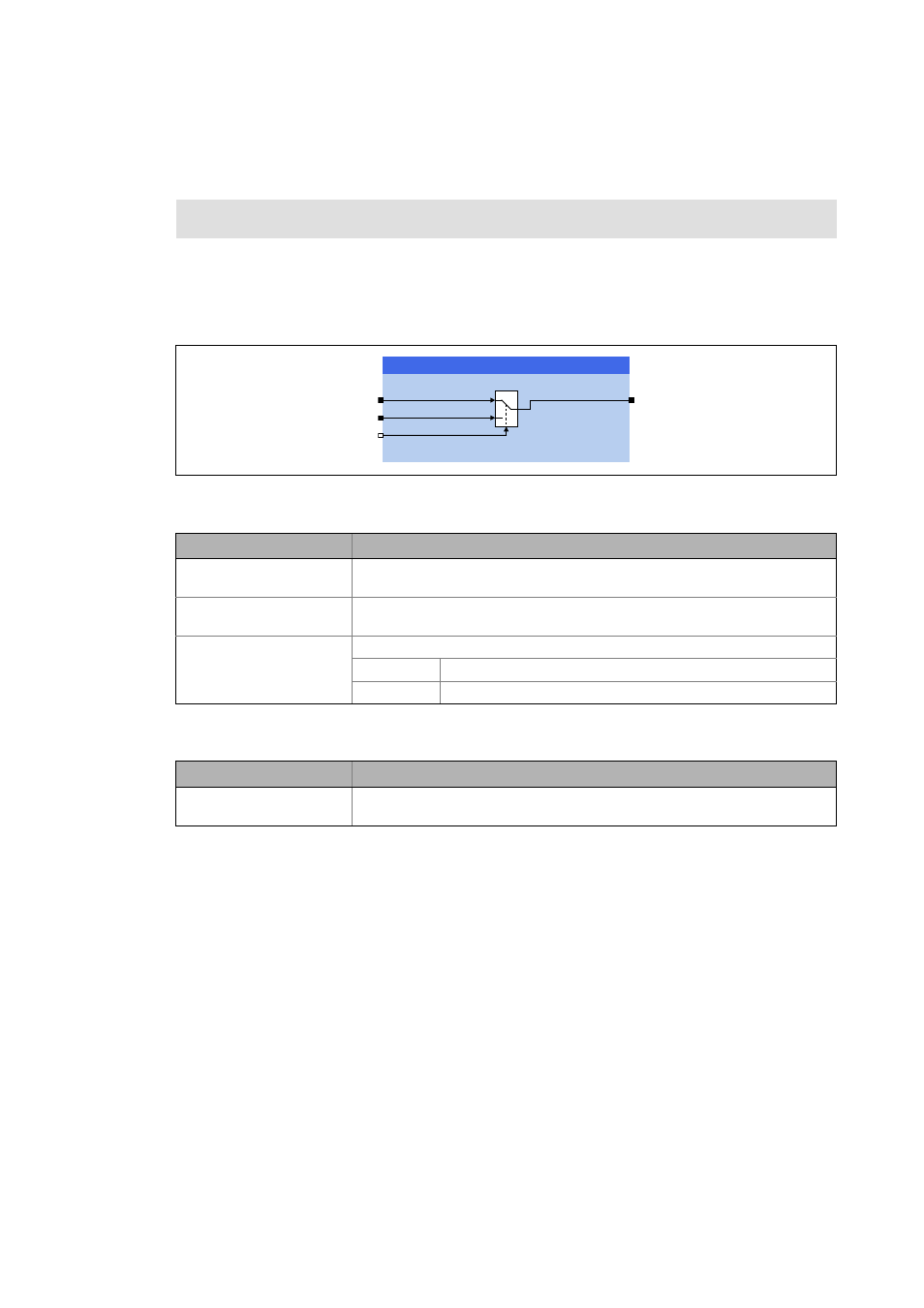

5.198 L_TbSelect - selector (for "DINT" data type)
This function block switches between two signals of "DINT" type. The switch-over is controlled via a
boolean input signal.
• So it is, for example, possible to switch between an initial diameter and a calculated diameter
during winding.
Inputs
Outputs
Function library: LenzeToolbox
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
dnIn1
DINT
Input signal 1
dnIn2
DINT
Input signal 2
bSelectIn2
BOOL
Selection of the input signal for the output to dnOut
FALSE dnIn1
TRUE dnIn2
Identifier/data type Value/meaning
dnOut
DINT
Output signal
GQ2XW
GQ,Q
E6HOHFW,Q
GQ,Q
/B7E6HOHFW
