3 Working with the FB editor
3.4 Creating/reconfiguring the interconnection
82
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _


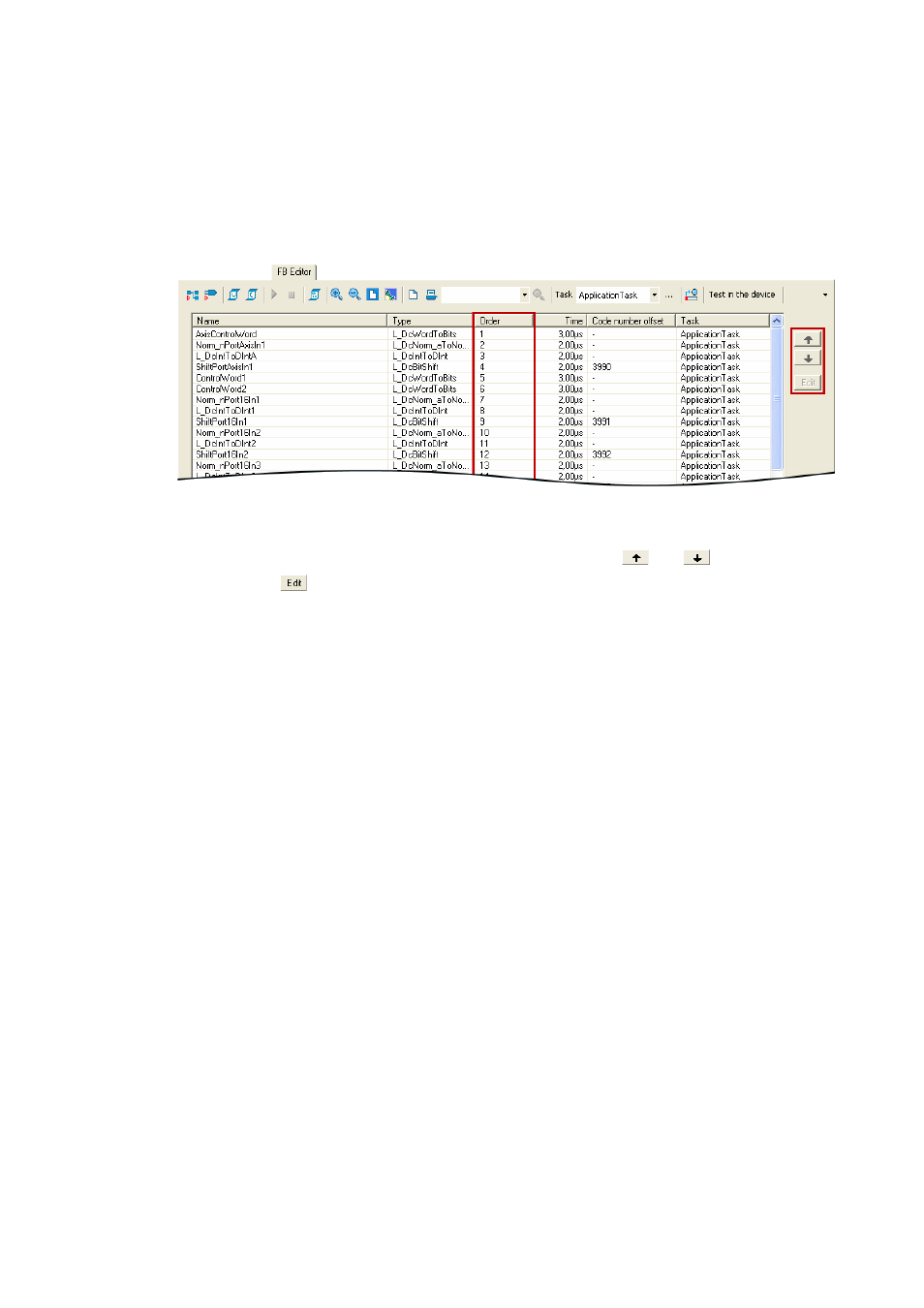

How to change the processing order:
1. Use the list field at the top right to change from the Editor to the overview.
• The overview displays all function blocks, system blocks, and port blocks of the intercon-
nection in the order of their processing
• In the "Order" column the order index of each function block is listed.
2. Select the function block which is to receive a different position within the processing or-
der.
3. Move the function block to the desired position using the and buttons.
• The button serves to directly assign another order index to the selected function
block per dialog.
