5 Function blocks
5.167 L_TbDelay - delay
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.167.3 Function 3: General delay
Selection: C04010 = "2"

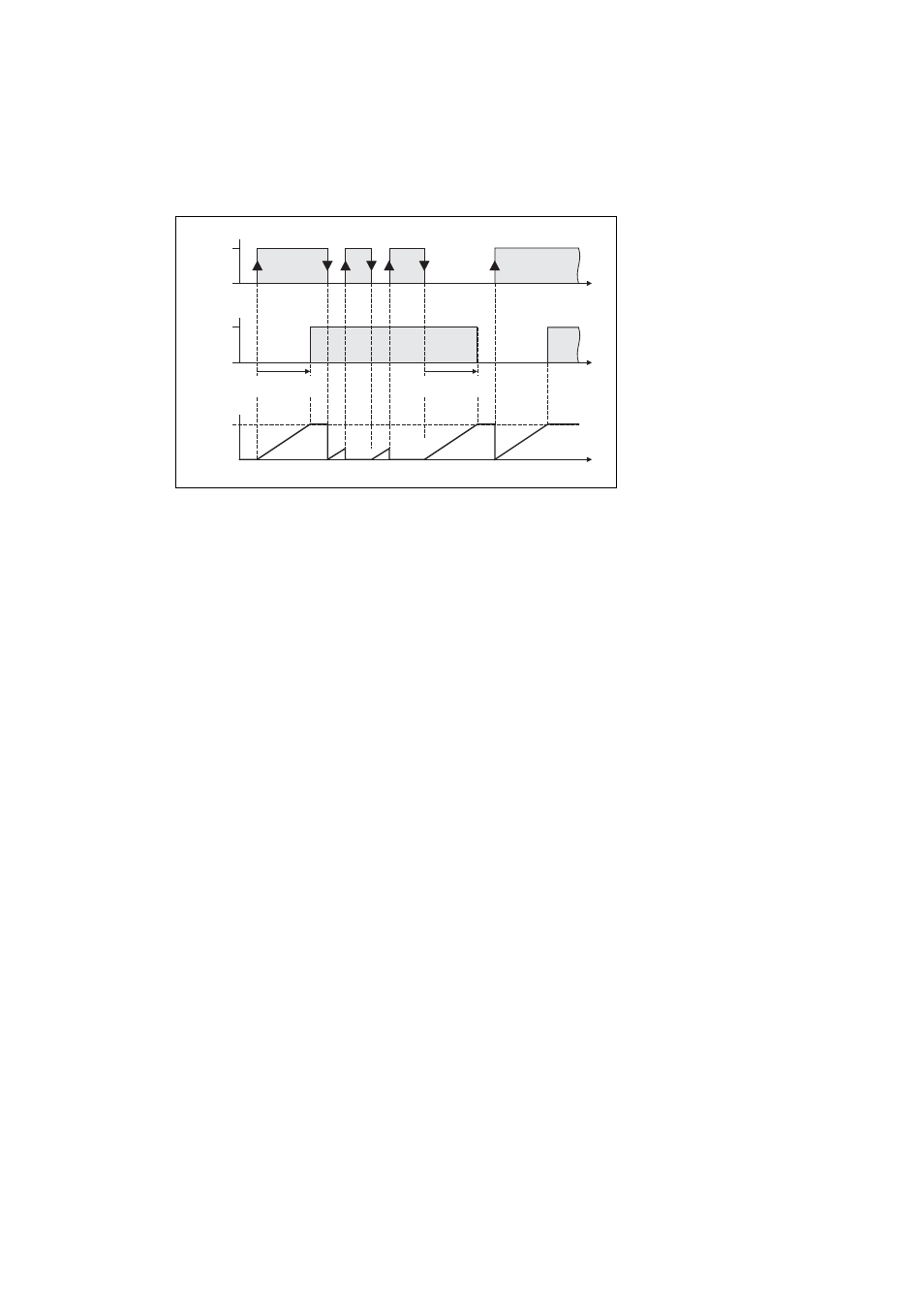

Functional sequence
1. Any edge at bIn resets and starts the internal timing element ().
2. After the delay time set via C04011 has elapsed, the input signal bIn is output to bOut.
 = internal timing element
TRUE
FALSE
bOut
t
TRUE
FALSE
bIn
t
C04011 C04011
C04011
t
0
