5 Function blocks
5.152 L_Tb8Select - 1-out-of-8 selector (for data type "DINT")
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

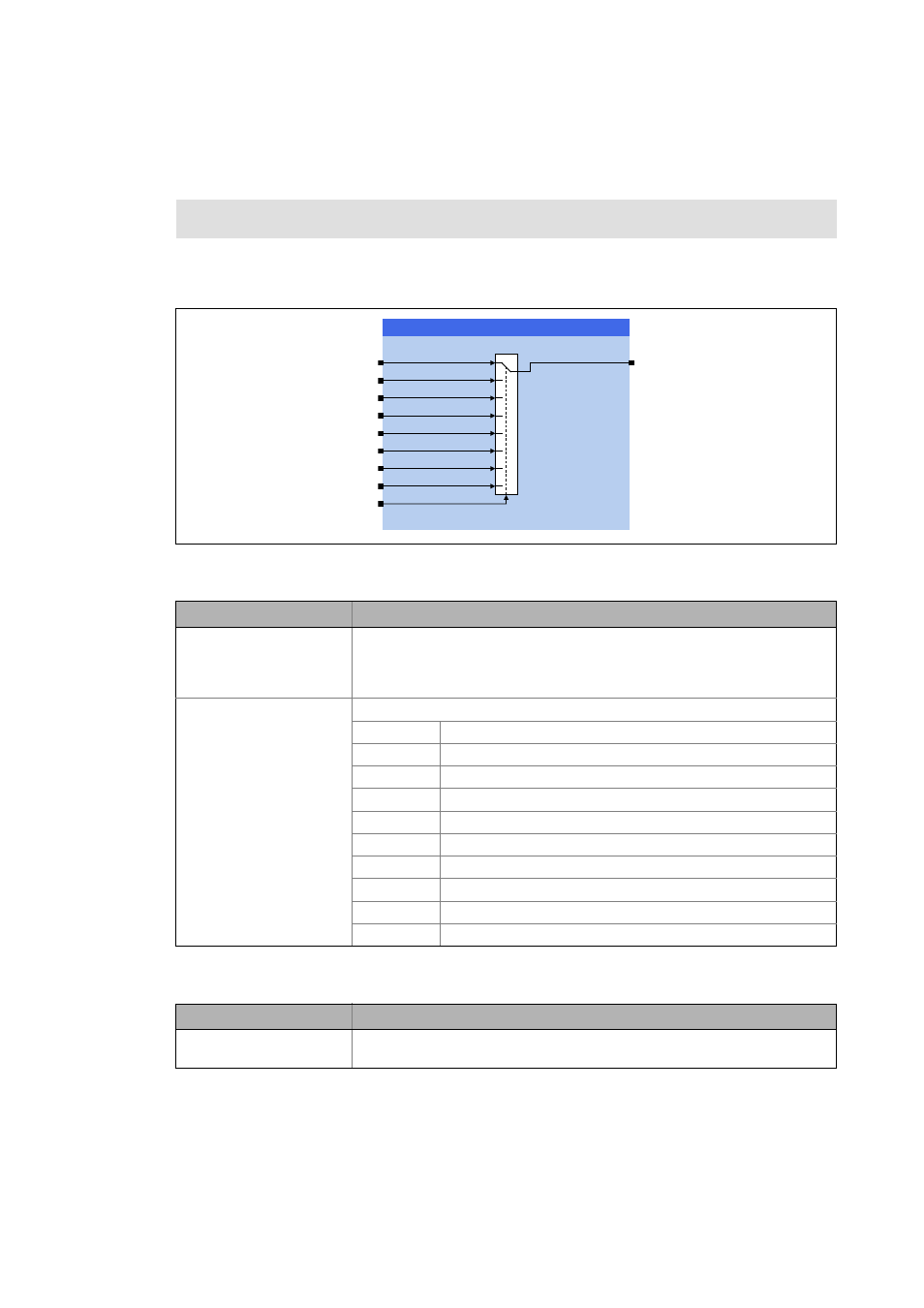

5.152 L_Tb8Select - 1-out-of-8 selector (for data type "DINT")
This FB connects one of eight input signals of "DINT" type through to the output.
• The input is selected via the input dwSelect.
Inputs
Outputs
Function library: LenzeToolbox
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
dnIn1
...
dnIn8
DINT
Input signal 1 ... 8
dwSelect
DWORD
Selection of the input signal for the output to dnOut
0 0
1 dnIn1
2 dnIn2
3 dnIn3
4 dnIn4
5 dnIn5
6 dnIn6
7 dnIn7
8 dnIn8
> 8 0
Identifier/data type Value/meaning
dnOut
DINT
Output signal
