5.128 L_SdInterpolate - signal interpolation
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

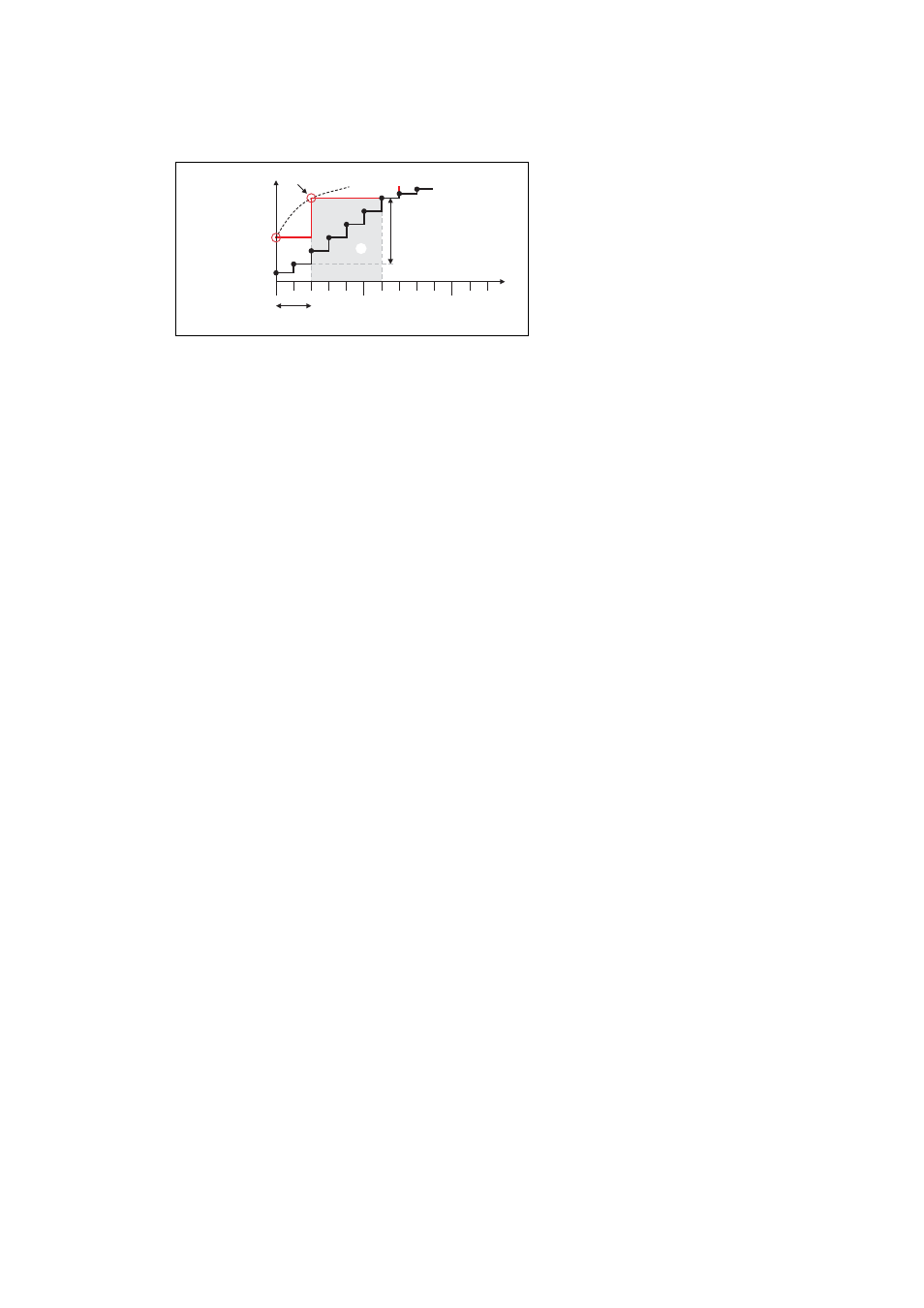

[5-99] Case 3: Cycle time of the input signal < number of interpolation cycles
• If a new value is received before com-
pletion of the five interpolation cycles
(), the new interpolation values are
calculated by means of the difference
between actual and setpoint position
().
Œ
t
dnPosIn_p
2 cycles
dnPosOut_p

DPos
