Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
653
5 Function blocks
5.210 L_WndTensionCurve - tensile force characteristic
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Outputs
Parameters
5.210.1 Selection of the characteristic
The part of the characteristic that depends on the diameter can be generated for a linear course of
the tensile force, a linear course of the torque, or on the basis of a specified characteristic. The cor-
responding selection is carried out via the input dwSelectCurve.
5.210.1.1 Characteristic for a linear course of the tensile force

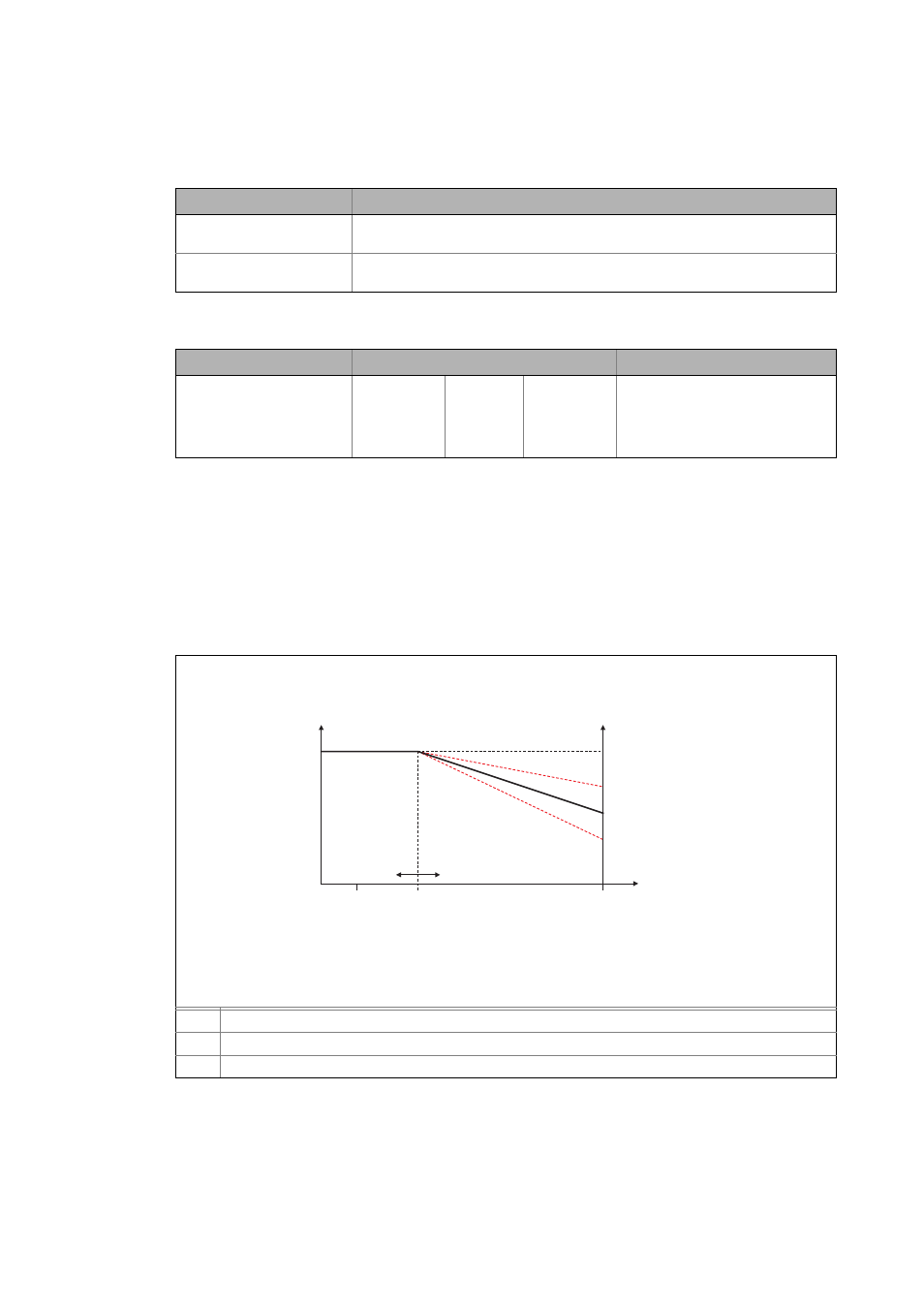

[5-158] Characteristic for a linear course of the tensile force (dwSelectCurve = 0)
• Via dnD0_n you define the diameter at which the reduction of the tensile force is to start.
Identifier/data type Value/meaning
dnTensionOut_n
DINT
Current tensile force setpoint in [%]
dnCurveValue_n
DINT
Current characteristic value in [%]
Parameter Possible settings Info
C04885/1...65 1 % 200 Table of characteristic values
• The 65 values in [%] are distribut-
ed equally across the diameter
area of dnD0_n to the maximum
diameter.
Characteristic

Tensile force
 Diameter
Function for D > D0:
D Current diameter (dnDiameter_n)
D0 Starting point for diameter dependency (dnD0_n)
HW Evaluation of tensile force (dnCurveCtrl_n)
Œ
DMin
(DMax)
100 %

D0
0 %
100 %
HW
100 %
dnCurveCtrl_n = 50 %
100 %
D D0
–
100 % D0
–
----------------------------- –
100 % HW
–
( ) ⋅
