3 Working with the FB editor
3.4 Creating/reconfiguring the interconnection
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Connection types
Connections can either be created by means of connection lines or port identifiers ("flags")

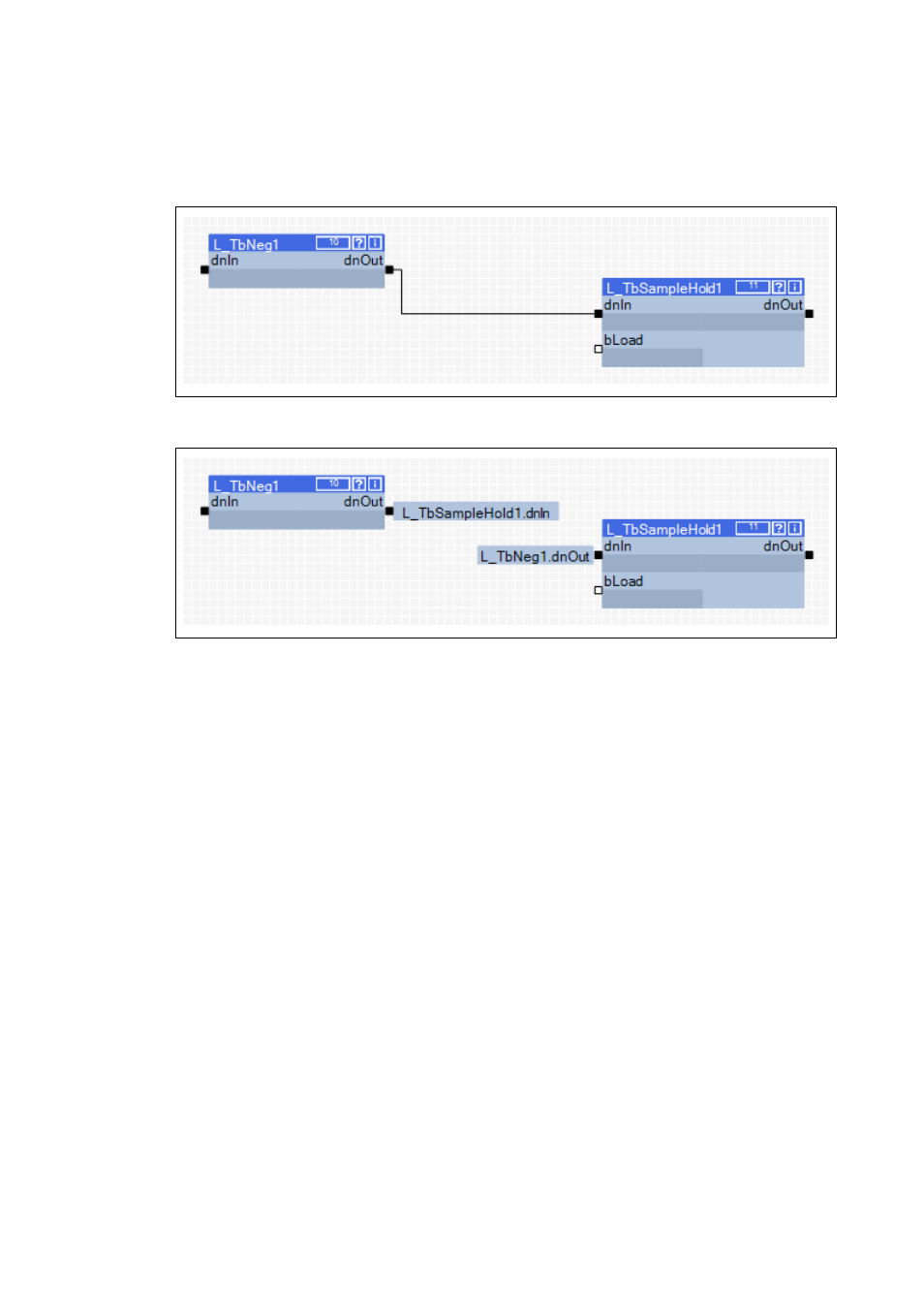

[3-3] Example 1: Connection via connection line
[3-4] Example 2: Connection via flags

Tip!
The commands Show as flag or Show as line in the context menu of a connection serve to
change the representation of the connection at any time.
