5 Function blocks
5.2 L_CamContactor - cam group with switch-on and switch-off dynamisation
144
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

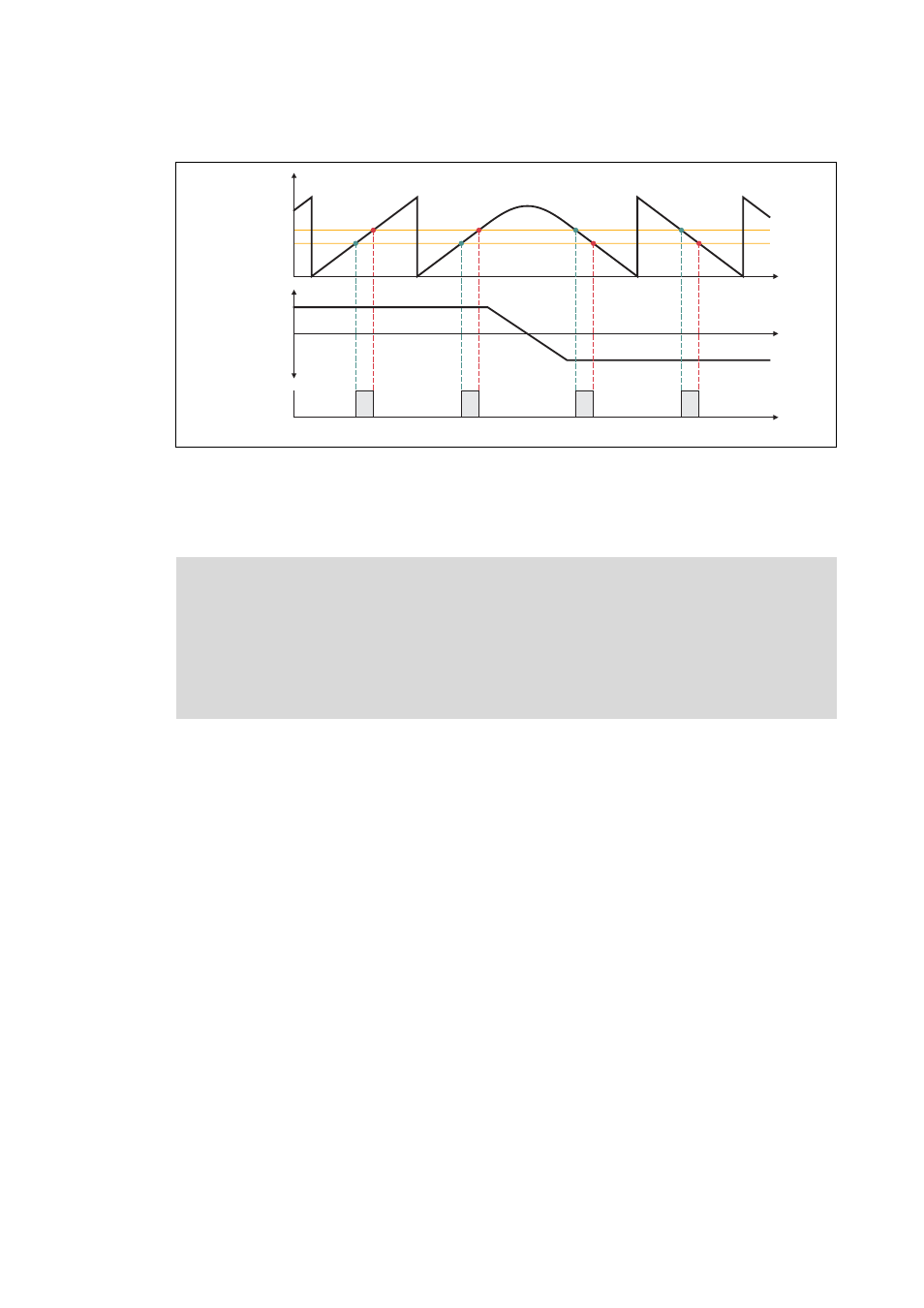

[5-5] Example: Position cams with bipolar effective direction
5.2.4 Switching performance for position-time cams
V
t
t
dnPosIn_p
bOut
t
on/off
on/off
0

Note!
When position-time cams are used, overlapping switch-on states of subsequent cams
can occur if the operating time of the position-time cams is longer than the interval to
the switch-on position of the following position-time cams (post-trigger function).
If the operating time of a position-time cam is longer than the total cycle time, the out-
put bOut remains on TRUE permanently.
